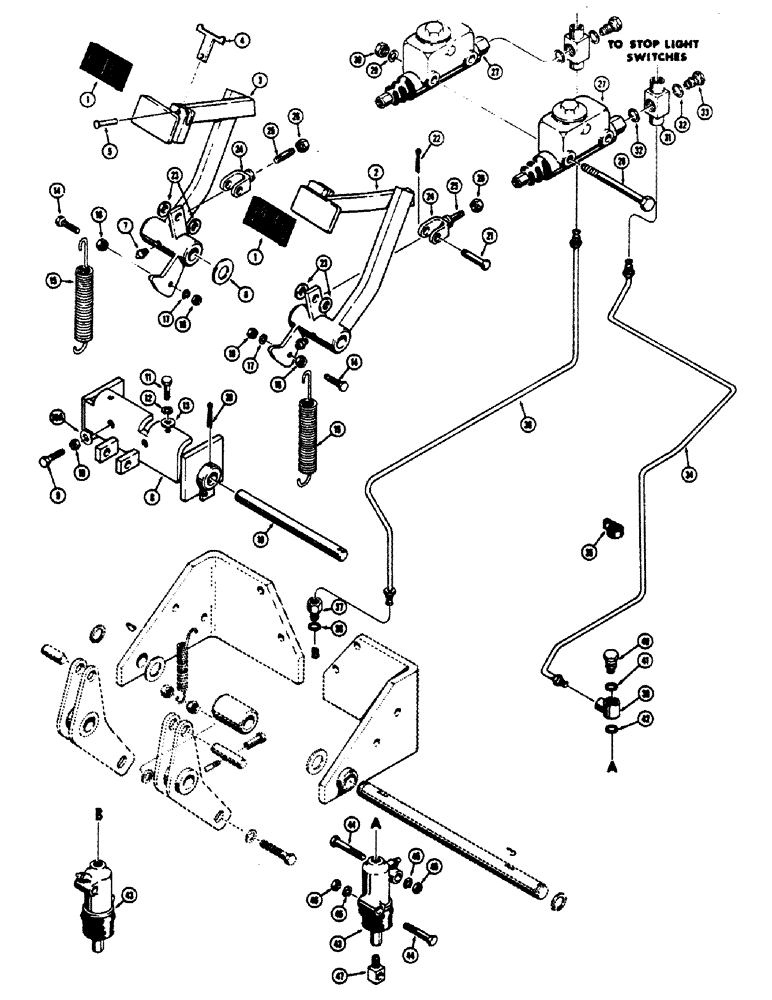

Запчасти Case 680CK (080) - BRAKE PEDALS AND LINKAGE (33) - BRAKES & CONTROLS

1

L11193

PAD

- brake pedal, rubber

2шт.

2

L25588

PEDAL ASSEMBLY - brake R.H.

1шт.

3

L25587

PEDAL

AND LOCK ASSEMBLY - brake, L.H., Includes: Ref. 4 and 5

1шт.

4

A29086

LOCK - brake pedal

1шт.

5

45-420

RIVET - brake lock, 1/4" dia. x 1-1/4" But Hd, 1/4" x 1 1/4"

1шт.

6

A31207

SPACER - brake pedal

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

8

L25580

BRACKET - mounting, brake pedal

1шт.

9

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

2шт.

10

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

2шт.

10a

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8"-16 NC x 1-1/2"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- plain (3/8")

2шт.

14

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

T50702

VALVE SPRING

SPRING - brake pedal return

2шт.

16

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex., jam (1/4"-20 NC)

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

25-104

NUT,1/4"-20, G5

2шт.

19

L25543

SHAFT - brake pedal pivot

1шт.

20

132-58

COTTER PIN

PIN - cotter, 1/8" dia. x 2-1/4"

1шт.

21

A27094

PIN

- yoke (1/2")

2шт.

22

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

23

L40012

SPACER -, Serial Range: clevis-pedal

4шт.

24

A12442

YOKE - push rod

2шт.

25

L25539

ROD - push (When stock is exhausted, order L40731 rod for service)

2шт.

25

L40731

ROD - push

2шт.

26

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex., jam (7/16"-14 NC)

2шт.

27

L25419

MASTER CYLINDER

CYLINDER - master, brake (Figure 82)

2шт.

28

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

HHCS - 3/8"-16 NC x 5-1/2"

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

2шт.

31

A18531

FITTING

- swivel, master cylinder to tube (Replaces L16740)

2шт.

32

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

WASHER - special (Replaces 33260)

4шт.

33

L16738

BOLT - swivel fitting to master cylinder

2шт.

34

L26368

- brake, master cylinder to wheel cylinder (R.H.)

1шт.

35

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube to converter housing

1шт.

36

L26377

TUBE,0.25" OD x 17.75, 20.29" L

- brake, master cylinder to wheel cylinder (L.H.)

1шт.

37

A18273

FITTING

ADAPTER - straight, L.H. wheel, Serial Range: cylinder-tube

1шт.

38

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

- special

1шт.

39

A18531

FITTING

- swivel, R.H. wheel, Serial Range: cylinder-tube

1шт.

40

A12864

BOLT

- swivel fitting to R.H. wheel cylinder

1шт.

41

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

WASHER - special

1шт.

42

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

- special

1шт.

43

L25589

CYLINDER

- wheel, brake (Figure 82 (1))

2шт.

44

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8"-16 NC x 2-3/4"

4шт.

45

92-6

LOCK WASHER,3/8"

4шт.

46

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

4шт.

47

L25562

ROD EYE - push, wheel cylinder

2шт.
