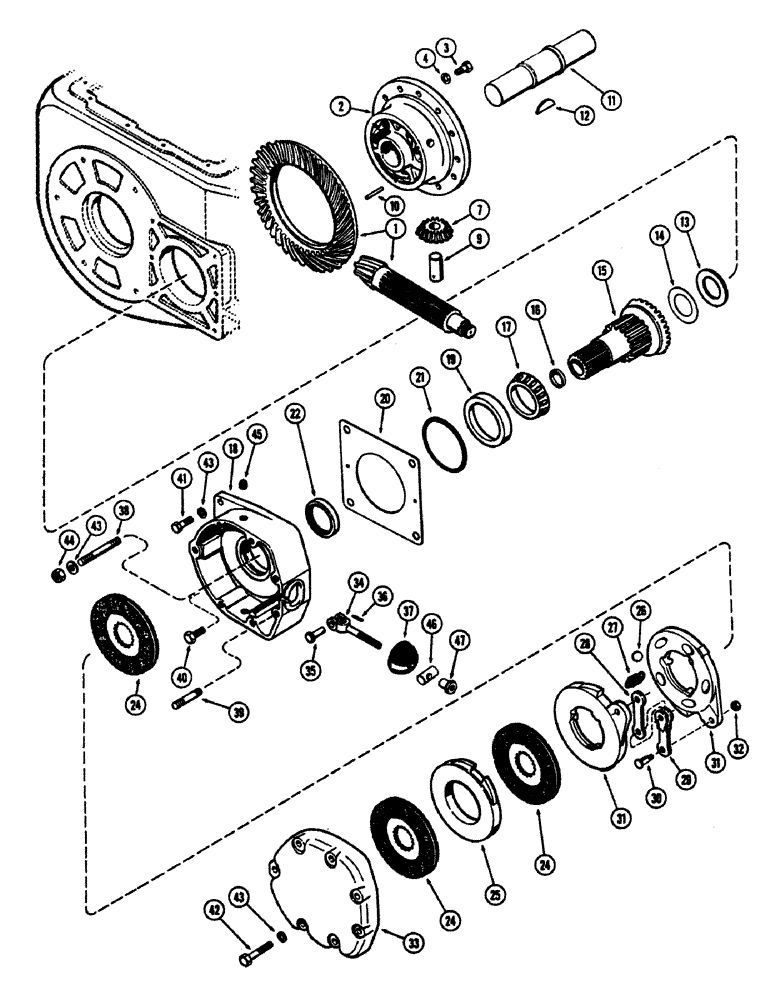

Запчасти Case 680CK (074) - DIFFERENTIAL BRAKES (33) - BRAKES & CONTROLS

1

G14420

GEAR

- ring gear & pinion

1шт.

2

A38162

WHEEL (STEERING)

WHEEL - center, diff. ring gear

1шт.

3

114-321

PREV TORQUE BOLT,Locking, 7/16"-20 x 3/4", G8, Full Thd

BOLT - 7/16 x 3/4" N.F. hex., jay-loc

12шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- diff. ring gear, 29/64 x 3/4 x 1/16"

12шт.

7

G17006

GEAR WHEEL

GEAR - pinion

3шт.

9

A37135

AXLE PIN

SHAFT - pinon gear

3шт.

10

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, , Pinion shaft 1/4" x 1 7/8", Slotted

3шт.

11

A37144

SHAFT - cross, differential

1шт.

12

126-146

WOODRUFF KEY,#27, 1/4" x 2 1/8", HT

1шт.

13

A39224

WASHER

- thrust, center wheel (.089")

1шт.

13

A39225

WASHER

- thrust, center wheel (.094")

1шт.

13

A39226

WASHER

- thrust, center wheel (.099")

1шт.

13

A39227

WASHER

- thrust, center wheel (.104")

1шт.

13

A39228

WASHER

- thrust, center wheel (.109")

1шт.

13

A39229

WASHER

- thrust, center wheel (.119")

1шт.

14

A37162

WASHER

SHIM - thrust washer, center wheel (.010")

1шт.

15

A37146

GEAR WHEEL

GEAR ASSY. - side, Includes: Ref. 16

2шт.

16

A29902

PLUG

- side gear

1шт.

17

A37160

ROLLER BEARING

CONE - bearing, side gear

2шт.

18

A37151

CARRIER - diff. bearing

2шт.

19

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, side gear

2шт.

20

A38165

SHIM,.003" Thk

Bearing carrier .003" Thk

1шт.

20

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

20

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

21

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing, carrier, 5 x 5-1/4 x 1/8"

2шт.

22

A38231

OIL SEAL,66.67mm ID x 85.22mm OD x 9.53mm Thk

- oil, bearing carrier

2шт.

24

A61858

BRAKE DISC

DISC ASSY. - diff. brake, middle (Replaces A37154)

6шт.

25

A32779

PLATE ASSY.

DISC ASSY. - diff. brake, intermediate

2шт.

R13352

BRAKE

ACTUATOR ASSY. - diff. brake, middle (Not illust.), Includes: Ref. 26 - 32

2шт.

26

211-19

BALL,7/8" Dia

- . 7/8" Dia

5шт.

27

A30897

SPRING

- extension

3шт.

28

A31119

LINK

- single, actuating disc

1шт.

29

A31120

LINK

- straddle, actuating disc

1шт.

30

A31121

STEP BOLT

BOLT - link, actuating disc

2шт.

31

NSS

NOT SOLD SEPARAT

DISC - actuating (Order R13352)

2шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. half hex.

2шт.

33

A37153

COVER - diff. brake

2шт.

34

A28203

ROD

- diff. brake pull

2шт.

35

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, pull rod

2шт.

36

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

37

A27465

CAP

- dust, brake rod hole

2шт.

38

G49500

STUD

- cover, 1/2 x 2-13/16"

2шт.

39

A30057

STUD

- cover, 1/2 x 2"

2шт.

40

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

42

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

14шт.

43

92-8

LOCK WASHER,1/2"

18шт.

44

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

2шт.

45

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

2шт.

46

A27687

HARDWARE

TRUNNION - pull rod guide

2шт.

47

A27686

NUT

- pull rod adjusting

2шт.
