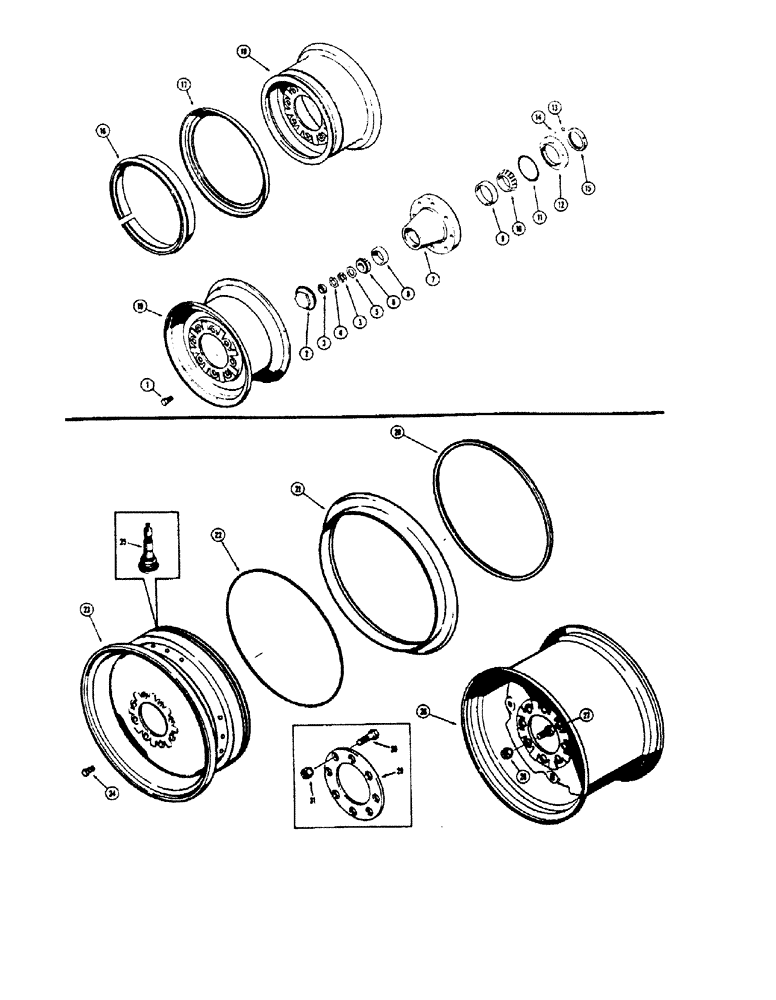

Запчасти Case 680CK (096) - FRONT STEERING WHEELS, HUB, BEARINGS AND RELATED PARTS (25) - FRONT AXLE SYSTEM

1

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

16шт.

2

A26011

CAP

- outer bearing, wheel

2шт.

3

25-1516

NUT,Jam, 1"-14, G5

- hex., lock (1"-14 NF)

4шт.

4

A26542

LOCK WASHER

- lock, special

2шт.

5

A26681

BEARING WASHER

WASHER - thrust, outer bearing

2шт.

6

A26679

ROLLER BEARING,1.25" ID x 0.9983"

CONE - bearing, outer

2шт.

L11382

WHEEL ASSY.

HUB ASSEMBLY - front steering wheel, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

HUB - front steering wheel

1шт.

8

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing, outer

1шт.

9

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, inner

1шт.

10

A27301

ROLLER BEARING,2" ID x 1.193"

CONE - bearing, inner

2шт.

11

L45639

O-RING

SEAL - "O" ring, retainer

2шт.

12

A26992

RETAINER

- seal

2шт.

13

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4"-20 NC x 1/2"

10шт.

14

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, external tooth (1/4") Shakeproof

10шт.

15

A26991

SEAL

- front steering wheel

2шт.

16

L30746

LOCKING RING

RING - lock, used on models with 8.25 x 15 - 12 ply tires

2шт.

17

L30745

RING

- side, used on models with 8.25 x 15 - 12 ply tires

2шт.

18

L12274

WHEEL - front steering, used on models with 8.25 x 15 - 12 ply tires

2шт.

19

L11745

WHEEL (STEERING)

WHEEL - front steering, used on models with 11.00 x 16 - 14 ply tires

2шт.

20

A13098

RING

- lock, rim, rear drive wheels, used on models with 12.00 x 24 - 8 ply tires

2шт.

21

A13097

RING

- side, rim, rear drive wheels, used on models with 12.00 x 24 - 8 ply tires

2шт.

22

A13099

O-RING,22 1" ID x 0.25"

SEAL - "O" ring, rim, rear drive wheels, used on models with 12.00 x 24 - 8 ply tires

2шт.

23

A13642

WHEEL

- drive, rear, rear drive wheels, used on models with 12.00 x 24 - 8 ply tires

2шт.

24

L15106

WHEEL BOLT

BOLT - wheel to hub, rear drive wheels, used on models with 12.00 x 24 - 8 ply tires

16шт.

25

A20058

VALVE STEM

- Wheel, rear drive wheels, used on models with 12.00 x 24 - 8 ply tires

2шт.

26

L43000

WHEEL - drive, rear, used on models with 16.9 x 24 - 8 ply tires

2шт.

27

L42896

WHEEL BOLT

BOLT - wheel to hub, used on models with 16.9 x 24 - 8 ply tires

16шт.

28

F62206

NUT

- special, used on models with 16.9 x 24 - 8 ply tires

16шт.

L42830

KIT

KIT - hub reinforcing, rear drive wheels, Includes: Ref. 29 - 31, L42830 hub reinforcing kit for tractors before s/n 9103865

1шт.

29

L42829

RING ASSY.

RING - reinforcing, L42830 hub reinforcing kit for tractors before s/n 9103865

2шт.

30

L42896

WHEEL BOLT

BOLT - special (5/8"-18 NF x 2"), L42830 hub reinforcing kit for tractors before s/n 9103865

16шт.

31

F62206

NUT

- special (5/8"-18 NF), L42830 hub reinforcing kit for tractors before s/n 9103865

16шт.
