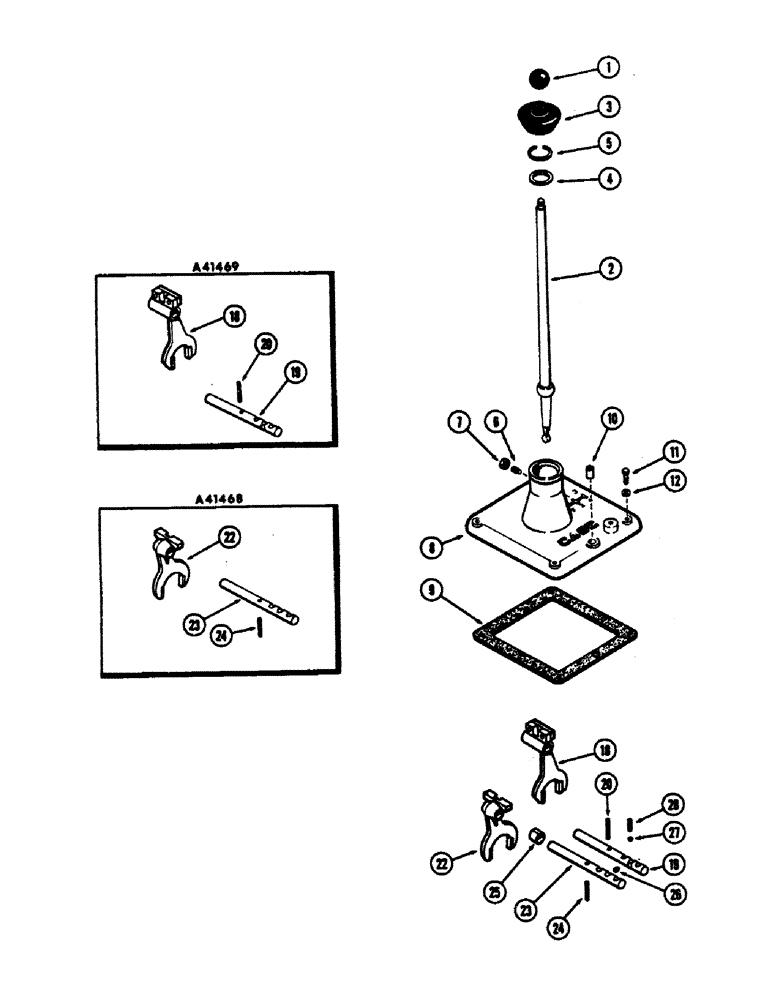

Запчасти Case 680CK (076) - TRANSMISSION GEAR SHIFT (21) - TRANSMISSION

1

A19416

BALL

KNOB - trans. axle shift lever

1шт.

2

A37161

LEVER - gear shift

1шт.

3

A57876

COVER

- dust, gear shift lever (Rubber)

1шт.

4

A7923

SEAT

- gear shift lever seat

1шт.

5

A26836

RING, SNAP

RING - snap, lever retaining

1шт.

6

G15468

SET SCREW,5/16" - 18 x 3/4"

- lever guide

1шт.

7

25-145

JAM NUT,Jam, 5/16"-18, G5

- lock, guide screw, 5/16" N.C., half hex

1шт.

8

G1730

COVER - trans. case & shift control

1шт.

9

G10342

GASKET

- cover

1шт.

10

138-200

LOCK PIN,1/2" x 1", Slotted

Pin, , cover locating 1/2" x 1", Slotted

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8 x 1-1/4" N.C. hex.

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

A41469

GROMMET

SHIFTER KIT - 1st & 2nd speed, Includes: Ref. 19 and 20

1шт.

18

A38248

FORK TEDDER

FORK - shifter (1st & 2nd speed)

1шт.

19

A38233

ROD

SHAFT - shifter rail (1st & 2nd) (7-5/16" lg.)

1шт.

20

138-2009

PIN,3/16" x 1", Coiled

Shaft to fork 3/16" x 1", Coiled

1шт.

A41468

PACKAGE, REPAIR

SHIFTER KIT - 3rd, & 4th speed, Includes: Ref. 22 - 24

1шт.

22

A38234

FORK

- shifter (3rd & 4th speed)

1шт.

23

A38235

ROD

SHAFT - shifter rail (3rd & 4th) (7-3/16" lg.)

1шт.

24

138-2009

PIN,3/16" x 1", Coiled

Shaft to fork 3/16" x 1", Coiled

1шт.

25

G49617

SEAL PACKAGE

SPACER - shifter fork

1шт.

26

A29060

PLUG

- shifter shafts inter-lock

1шт.

27

211-11

BALL,3/8" Dia

- shaft detent, . 3/8" Dia

2шт.

28

G47039

SPRING

- detent ball pressure

2шт.
