Запчасти Case 680CK (070) - TRANSMISSION CASE & COVERS (21) - TRANSMISSION

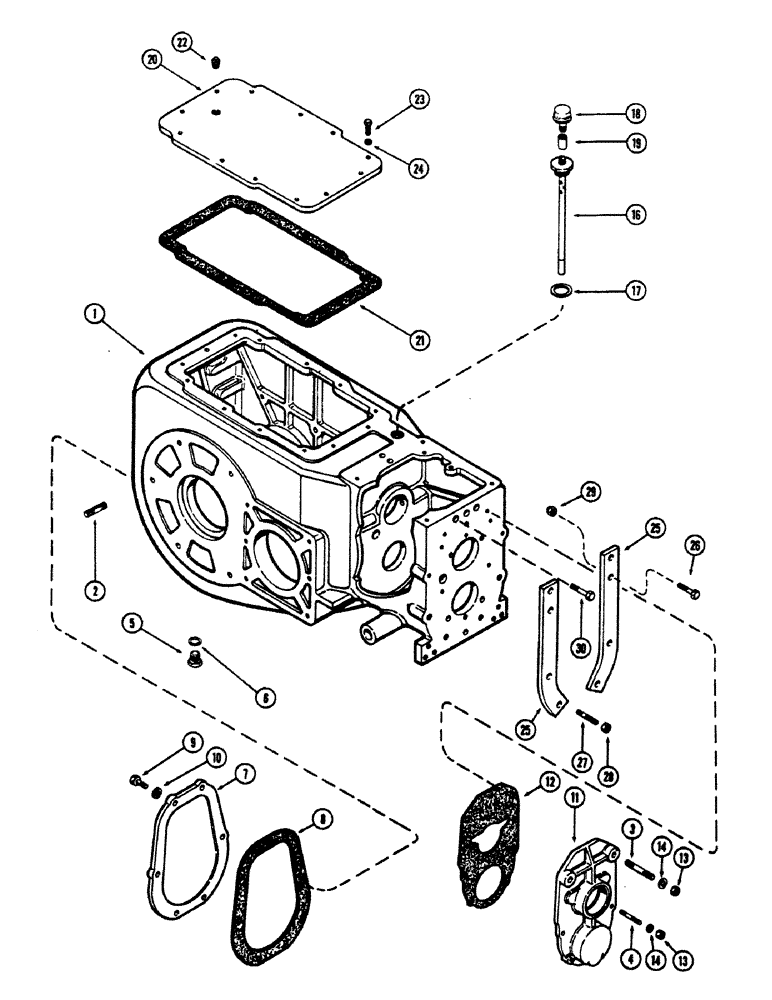

Схема запчастей Case 680CK - (070) - TRANSMISSION CASE & COVERS (21) - TRANSMISSION

Артикул

Название

Примечание

Количество

1

A37141

CASE

- transmission

1шт.

2

A37143

STUD

- axle hsg. to trans. case, 5/8" N.C. x 2-7/8"

10шт.

3

A29717

STUD

- diff. case front cover, 3/8" N.C./N.F. x 1-1/2"

2шт.

4

G10710

STUD

- front cover, 3/8" N.F. x 1-3/4"

2шт.

5

A14280

PLUG

- drain, trans. case

1шт.

6

A58608

GASKET

- drain plug

1шт.

7

G1041

COVER

- trans. case, rear

1шт.

8

G10447

GASKET

- rear cover

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Rear cover Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

10

92-6

LOCK WASHER,3/8"

6шт.

11

A13635

COVER ASSY

COVER - trans. case, front

1шт.

12

G46849

GASKET

- cover

1шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

16

A19110

DIPSTICK - oil gauge

1шт.

17

A38660

GASKET

- dipstick (1-1/4 x 1-1/2 x 3/32") (Nylon) (Replaces G10351 copper gasket)

1шт.

18

A27173

BREATHER

- trans. case

1шт.

19

221-1327

X

COUPLING - breather, 1/4" P.T.

1шт.

20

A13633

COVER - trans. case, top

1шт.

21

G47006

GASKET

- cover

1шт.

22

221-1002

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - cover, 1/4" P.T., sq. hd.

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

24

92-6

LOCK WASHER,3/8"

12шт.

25

L26417

SUPPORT - trans. case, rear

2шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- support, 1/2 x 1-3/8" N.C. hex.

4шт.

27

VT3965

STUD - support, 1/2" N.C. x 2-1/16"

4шт.

28

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - Essna, 1/2" N.F. hex.

4шт.

29

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Esna 1/2"-13, GB

4шт.

30

113-439

SCREW,Locking, 1/2"-13 x 2 1/2", G5

BOLT - Nylock, 1/2 x 2-1/2" N.C. hex.

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (In trans. case) 1/8" P.T., 45 degrees (Not illust.)

2шт.

Выбрано товаров: 30
