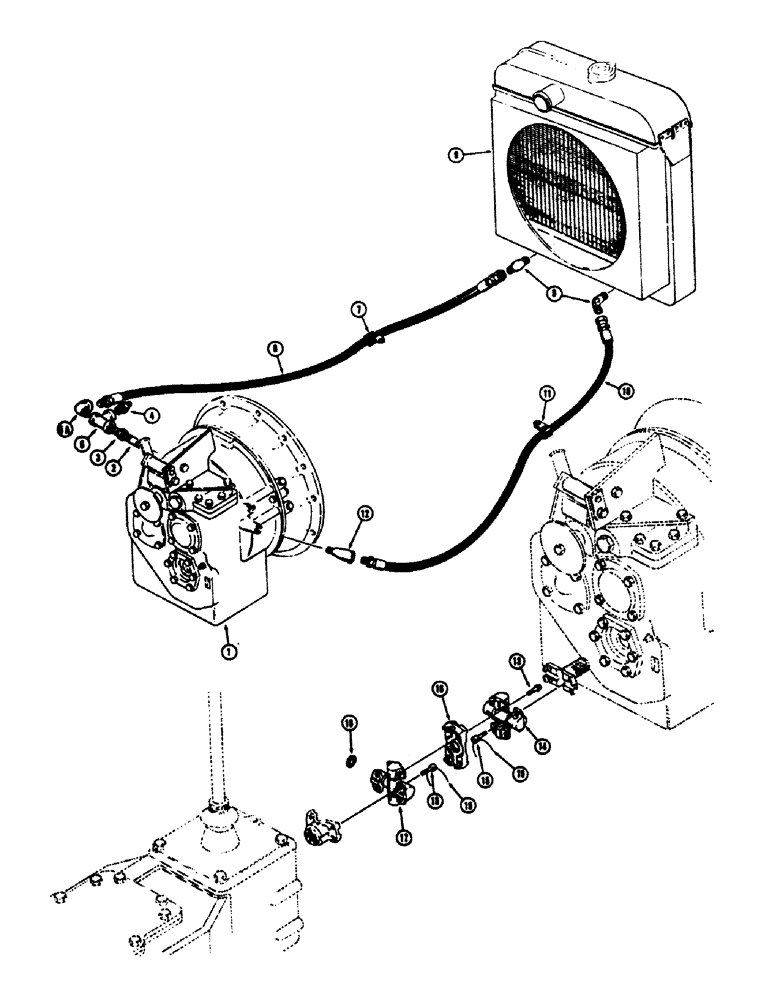

Запчасти Case 680CK (068) - FORWARD AND REVERSE TRANSMISSION, COOLING SYSTEM (21) - TRANSMISSION

1

REF

INSTRUCTION

TRANSMISSION - forward and reverse (See figures 56 thru 76 for parts lists)

1шт.

2

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - pipe (3/8" NPT x 2")

1шт.

3

221-1056

BUSHING

REDUCING BUSHING - hex., pipe (1/2" x 3/8" NPT)

1шт.

4

A13795

SENDER UNIT

SENDING UNIT - torque converter temperature gauge

1шт.

5

221-1424

TEE,Pipe, 1/2" NPT

- pipe (1/2" NPT)

1шт.

5a

221-1377

ELBOW,90 Degree, 1/2" NPT

- pipe, 90 degrees (1/2" NPT) Tee to hose (If used)

1шт.

6

L11081

HOSE

- forward and reverse transmission to radiator (56" long)

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

218-1098

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

- special, at radiator

2шт.

9

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine and forward and reverse transmission cooling (See Figure 102 for proper radiator)

1шт.

10

L11082

HOSE ASSY.

HOSE - radiator to forward and reverse transmission (62" long)

1шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose to frame

1шт.

12

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degrees (3/8" NPT)

1шт.

L11370

TOGGLE

UNIVERSAL JOINT - transmission to engine, Includes: Ref. 13 - 18

1шт.

13

L30496

SCREW,1 15/16"

- special, spider to plate, universal joint

4шт.

14

L30634

DIFF. SPIDER

SPIDER AND BEARING KIT - universal (Not tapped) joint

1шт.

15

A14722

SCREW,5/16" x 1-1/16", Gr 8

- special, drilled head (Spider and bearing to engine or transmission yoke), universal joint

8шт.

16

L30493

PLATE

- coupling, center, universal joint

1шт.

17

L30633

KIT

SPIDER AND BEARING KIT - universal (Tapped) joint

1шт.

18

A14721

WASHER

GASKET - cork, universal joint

8шт.

19

391-803

ELECTRICAL WIRE

WIRE - tie, #20 x 6", universal joint

4шт.
