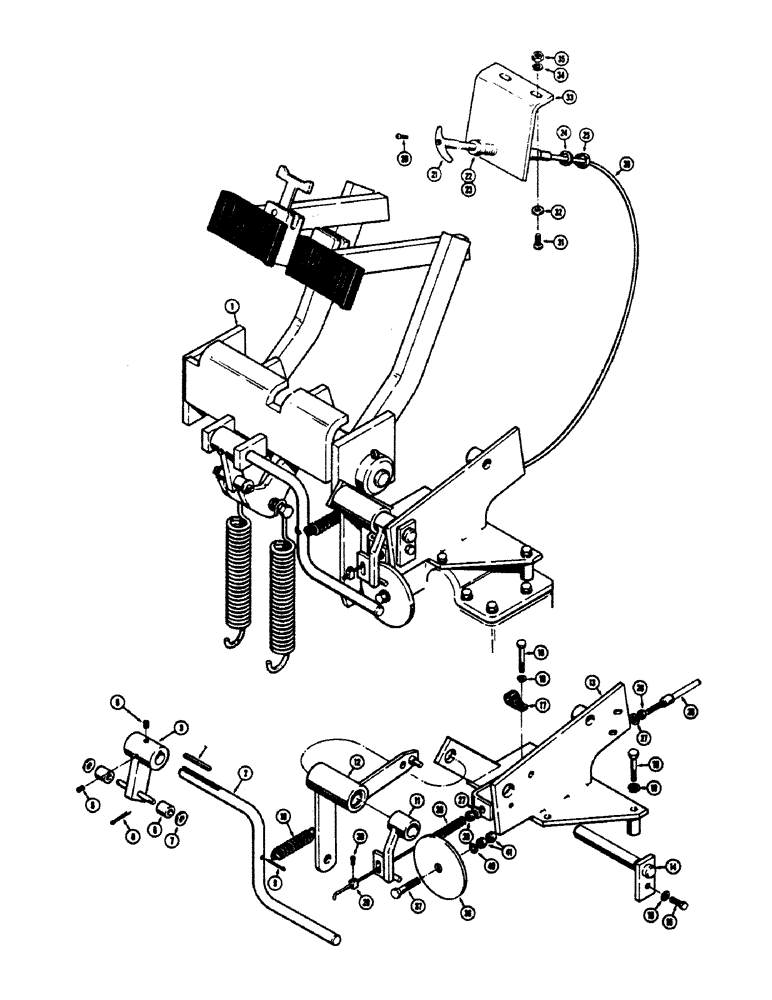

Запчасти Case 680CK (066) - AUTOMATIC CLUTCH DISCONNECT CONTROLS (21) - TRANSMISSION

1

REF

INSTRUCTION

BRAKE PEDALS AND MOUNTING BRACKET - tractor (See Figure 80 for components)

1шт.

2

L16398

SHAFT

ARM - clutch disconnect, brake pedal control

1шт.

3

L16399

ARM

LEVER - disconnect arm actuating

1шт.

4

L17471

KEY

- parallel, 1/8" x 1-1/2" (Early production)

1шт.

5

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16"-18 NC x 3/8") Cup point (Late production)

1-2шт.

6

L16410

ROLLER

- lever, brake pedal

2шт.

7

A26584

WASHER

- plain, roller retaining

2шт.

8

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

9

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

10

B18277

SPRING

- arm return

1шт.

11

L26238

ARM - clutch disconnect, cable control

1шт.

12

L26366

BELLCRANK - shuttle shift

1шт.

13

L26254

BRACKET - shift bellcrank and disconnect arm mounting

1шт.

14

L11107

SHAFT

- bellcrank and disconnect arm pivot

1шт.

15

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- cable to bracket

1шт.

18

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5шт.

19

92-5

LOCK WASHER,5/16"

5шт.

L13593

CABLE

ASSEMBLY - clutch disconnect, Includes: Ref. 20 - 30

1шт.

20

L32204

SCREW

- locking, Phillips head (#10-32 NF x 5/8")

1шт.

21

L32205

HANDLE

- disconnect control

1шт.

22

L32206

SEAL

- cable

1шт.

23

L32207

NUT

RETAINER - seal

1шт.

24

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, internal tooth (5/8") Zinc plated

1шт.

25

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex., jam (5/8"-18 NF) Zinc plated

1шт.

26

NSS

NOT SOLD SEPARAT

CABLE - disconnect control

1шт.

27

195-520

WASHER,1/4"

- plain (5/16") Zinc plated

2шт.

28

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

L32208

CLAMP

COLLAR ASSEMBLY - cable, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

COLLAR - cable

1шт.

30

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8-32 NC x 1/4")

1шт.

31

173-239

SCREW

- round head machine (1/4"-20 NC x 1") Zinc plated

2шт.

32

195-518

WASHER,1/4", SAE

- plain (1/4") Zinc plated

2шт.

33

L13985

BRACKET - cable mounting, at dash (Before S/N 9103967)

1шт.

33

L19621

BRACKET - cable mounting, at dash (S/N 9103967 and after)

1шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

36

A37580

VALVE SPRING

SPRING - disconnect cable

1шт.

37

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

38

L13586

DISC - clutch disconnect

1шт.

40

92-5

LOCK WASHER,5/16"

1шт.

41

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16"-24 NF)

2шт.
