Запчасти Case 680CK (064) - FORWARD AND REVERSE CONTROLS (21) - TRANSMISSION

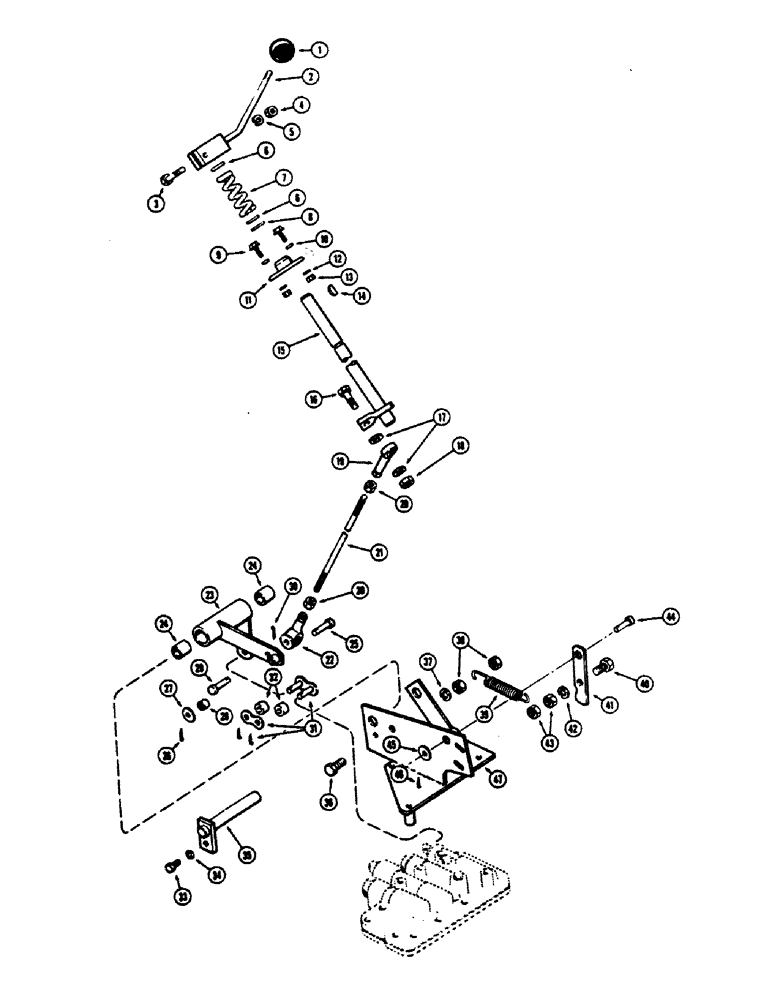

Схема запчастей Case 680CK - (064) - FORWARD AND REVERSE CONTROLS (21) - TRANSMISSION

Артикул

Название

Примечание

Количество

1

A14051

GRIP

BALL - handle

1шт.

2

L11084

HANDLE - shift

1шт.

3

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16"-18 NC x 1-3/4"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16"-18 NC)

1шт.

5

92-5

LOCK WASHER,5/16"

1шт.

6

G49066

WASHER - special

2шт.

7

A30146

SPRING

- shaft

1шт.

8

L11094

RING - shaft retaining

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

11

L15401

BEARING,15.89mm ID

- shift lever

1шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

2шт.

14

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

15

L26305

SHAFT - shift

1шт.

16

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

1шт.

17

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

- special

2шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16"-18 NC)

1шт.

19

A35134

BEARING

EYE - rod end, self-aligning

1шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. lock (5/16"-24 NF)

2шт.

21

L11096

ROD

- shift link

1шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod

1шт.

23

L26366

BELLCRANK - shift assembly, Includes: Ref. 24 and 25

1шт.

24

L10818

BUSHING

- bellcrank

2шт.

25

A8824

PIN

- bellcrank detent

1шт.

26

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

27

195-15

WASHER,#12

- plain (1/4")

1шт.

28

L11565

BEARING

- neutral start

1шт.

29

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

31

60961

DRAG LINK

CONNECTOR - link, forward and reverse

1шт.

32

L11102

SPACER

- forward and reverse shift

2шт.

33

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

L11107

SHAFT

- bellcrank pivot

1шт.

36

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.

38

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., lock (5/16"-18 NC)

2шт.

39

R14163

VALVE SPRING

SPRING - neutral start lever

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

41

L11564

BAR - neutral start detent

1шт.

42

92-5

LOCK WASHER,5/16"

1шт.

43

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., lock (5/16"-18 NC)

2шт.

44

L26209

PIN,11.07mm OD x 39.75mm L

- clevis (7/16")

1шт.

45

95-7

WASHER,7/16"

- plain () 7/16"

1шт.

46

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

47

L26254

BRACKET - bellcrank mounting

1шт.

Выбрано товаров: 47
