Запчасти Case 680CK (058) - TRANSMISSION AND RELATED PARTS, FORWARD AND REVERSE CLUTCH (21) - TRANSMISSION

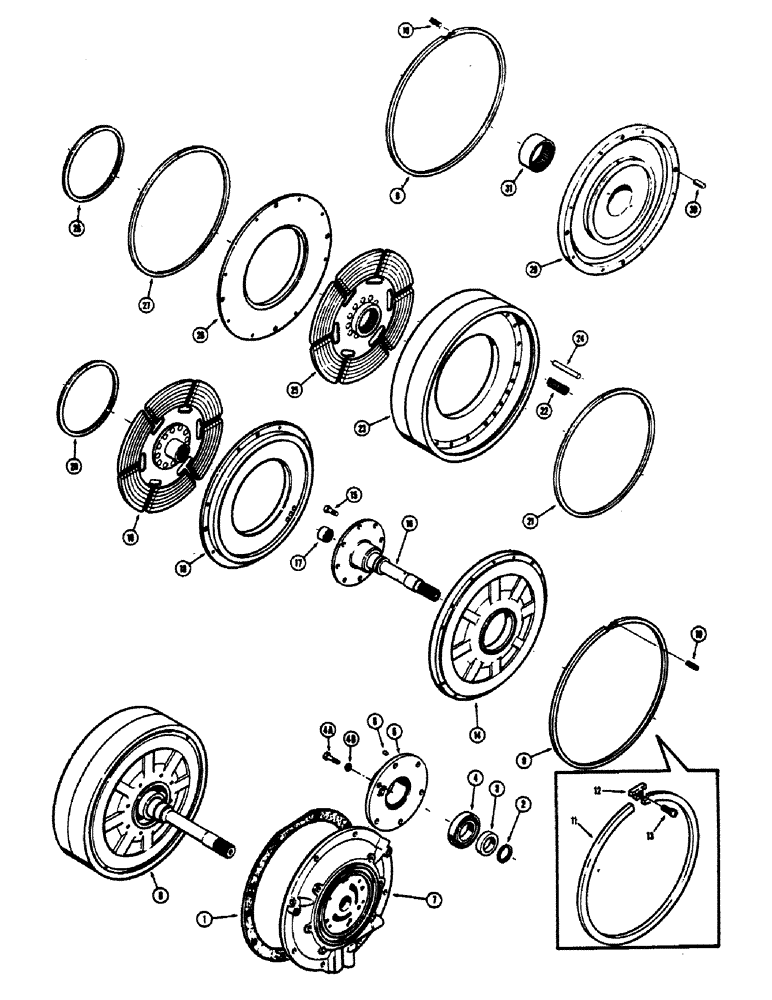

Схема запчастей Case 680CK - (058) - TRANSMISSION AND RELATED PARTS, FORWARD AND REVERSE CLUTCH (21) - TRANSMISSION

Артикул

Название

Примечание

Количество

L10816

SPARE PART TRANSMISSION ASSY. - loader (Before tractor S/N 9103753) Order L42968 transmission assy. for service, Includes: Ref. 1 - 31

1шт.

L42968

SPARE PART TRANSMISSION ASSY. - loader (S/N 9103753 and after), Includes: Ref. 1 - 31

1шт.

1

A14886

GASKET

GASKET - transmission housing

1шт.

2

L30484

RING, SNAP

RING SNAP RING - snap, input shaft

1шт.

3

L30483

SPACER

SPACER - bearing

1шт.

4

L30481

BEARING

SPARE PART BEARING - clutch

1шт.

4a

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

4b

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

L30479

CAP

RETAINER ASSEMBLY - bearing, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

6

L30245

PLUG

PLUG - retainer

2шт.

7

L30482

ADAPTER

ADAPTER - trans. housing to torque converter housing

1шт.

8

L30691

CLUTCH

CLUTCH ASSEMBLY - forward and reverse, Includes: Ref. 9

1шт.

9

A14826

X

RING - snap, cylinder to plate (Used prior to transmission serial number 11018) When stock is exhausted, order 1-L32121, 1-L32120 and 1-L32084

2шт.

10

L30693

SCREW

SCREW - Nylock (Used prior to serial number 11018) When stock is exhausted, order 1-L32121, 1-L32120 and 1-L32084, Includes: Ref. 11 - 31

2шт.

11

L32121

RING, SNAP

RING SNAP RING - snap, cylinder to plate (Used on transmission serial number 11018 and after)

2шт.

12

L32120

PLATE ASSY.

PLATE - lock, snap ring (Used on transmission serial number 11018 and after)

2шт.

13

L32084

SCREW

SCREW - locking (Used on transmission serial number 11018 and after)

2шт.

L30695

SPARE PART CYLINDER AND SHAFT ASSEMBLY - clutch, Includes: Ref. 14 - 17

1шт.

14

L30698

CYLINDER BLOCK

CYLINDER - front

1шт.

15

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - lock, 5/16"-18 NC x 3/4"

8шт.

L30477

SHAFT

SHAFT ASSEMBLY - input, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - input

1шт.

17

T32720

BEARING

BEARING - needle

1шт.

18

A14830

PISTON ASSY.

PISTON - clutch

1шт.

19

A14822

PLATE

PLATE - front, clutch

1шт.

19

A14822R

REMAN-CLUTCH PLATE

680CK Series B, S/N 9102282 TO 9103968

1шт.

19

A14822C

CORE-CLUTCH PLATE

Return Number

1шт.

20

A14832

RING

RING - seal, inner

1шт.

21

A14831

RING

RING - seal, outer

1шт.

22

A14827

VALVE SPRING

SPRING - clutch retractor

24шт.

L30694

PLATE

PLATE ASSEMBLY - pressure, Includes: Ref. 23 - 31

1шт.

L30694R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

L30694C

CORE-CLUTCH PLATE

Return Number, Plate Assembly, Pressure

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

24

A14829

AXLE PIN

PIN - pressure plate drive

4шт.

25

A14823

PLATE

PLATE - rear, clutch

1шт.

26

A14830

PISTON ASSY.

PISTON - clutch

1шт.

27

A14831

RING

RING - seal, outer

1шт.

28

A14832

RING

RING - seal, inner

1шт.

L30692

CYLINDER

CYLINDER AND BEARING ASSEMBLY - clutch, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

CYLINDER - rear

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG - rear

2шт.

31

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle

1шт.

Выбрано товаров: 44
