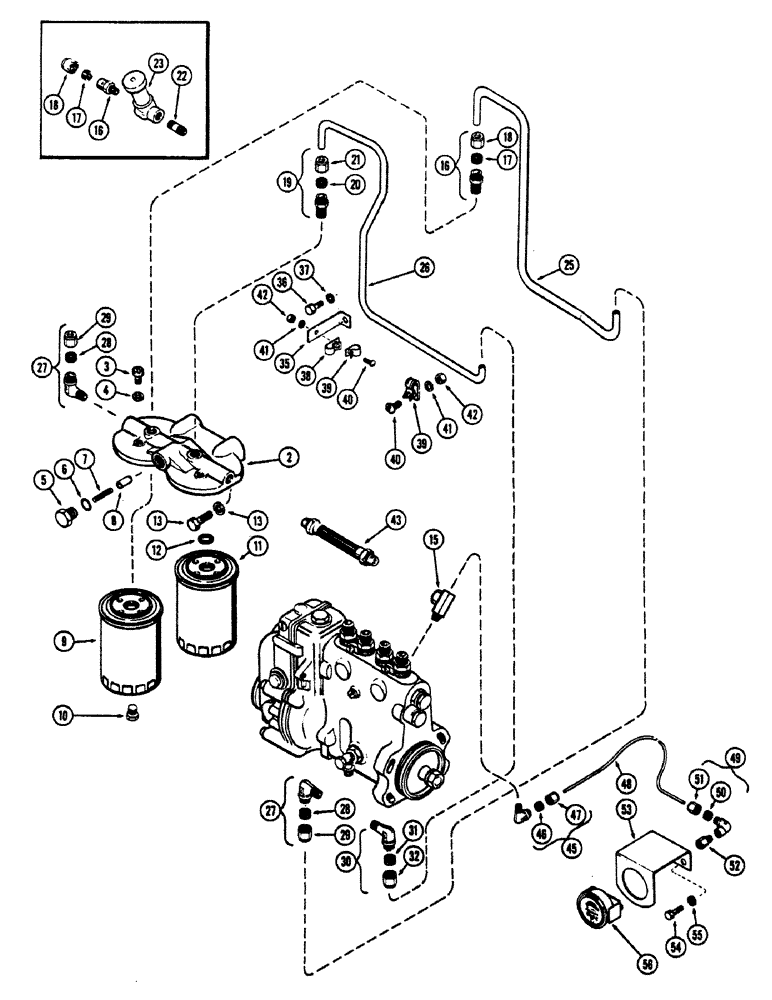

Запчасти Case 680CK (034) - FUEL INJECTION FILTER SYSTEM, (267) DIESEL ENGINE (10) - ENGINE

A60032

HEAD

ASSY. - 1st & 2nd stage filter (Not illust.), Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, #10-32 x 5/16" fill. hd.

2шт.

4

A20662

GASKET

WASHER - bleed screw, 3/16 x 3/8 x 3/64" fiber

2шт.

5

A24916

PLUG

- relief valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug, 1/2 x 11/16 x 3/32"

1шт.

7

A24918

SPRING

- relief valve

1шт.

8

A24917

PLUNGER

- relief valve

1шт.

CASA41745

FUEL FILTER

FILTER KIT - (Set of 2) (Not illust.), Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage (13/16"-16 attaching threads), Includes: Ref. 10

1шт.

10

221-1661

PLUG

- filter drain

1шт.

11

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage (15/16"-16 attaching threads), Includes: Ref. 12

1шт.

12

A42315

GASKET

GROMMET - 2nd stage filter

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A20539

FITTING

UNION - hose & pressure switch

1шт.

16

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube, 1/4" P.T. (1st stage & hand primer), Includes: Ref. 17 and 18

2шт.

17

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

18

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

19

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube, 1/4" P.T. (2nd stage), Includes: Ref. 20 and 21

1шт.

20

222-103

SLEEVE,5/16" Tube

1шт.

21

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

22

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - pipe (1/4 x 1") (Used prior trac. ser. no. 9103882)

1шт.

23

A60042

PUMP

- hand primer (Used prior trac. ser. no. 9103882)

1шт.

23

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

23

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

25

A60075

TUBE

- 1st stage filter to pump (3/8" O.D. tube)

1шт.

26

A57863

TUBE

- pump to 2nd stage filter (5/16" O.D. tube)

1шт.

27

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube, 1/4" P.T. (1st stage & filter head), Includes: Ref. 28 and 29

2шт.

28

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

29

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

30

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube, 1/4" P.T. (2nd stage), Includes: Ref. 31 - 32

1шт.

31

222-103

SLEEVE,5/16" Tube

1шт.

32

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

35

A20656

BRACKET - tube clips

1шт.

36

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.

38

A20688

CLIP

- 1st stage tube (For 3/8" O.D. tube)

1шт.

39

A27814

X

CLIP - 2nd stage tube (For 5/16" O.D. tube)

2шт.

40

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- clips, 1/4 x 5/8" N.C. rd. hd.

2шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

42

25-104

NUT,1/4"-20, G5

2шт.

43

A57861

HOSE

- 2nd, Serial Range: stage-pump

1шт.

45

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/8" tube, 1/8" P.T., Includes: Ref. 46 and 47

1шт.

46

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

47

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

48

A9364

TUBE

- fuel pressure, Serial Range: gauge-union

1шт.

49

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - 1/8" tube, 1/8" P.T., Includes: Ref. 50 and 51

1шт.

50

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

51

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

52

A28061

FITTING

ADAPTER - gauge to elbow (Snubber)

1шт.

53

A57077

BRACKET

- fuel pressure gauge mounting

1шт.

54

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

55

92-6

LOCK WASHER,3/8"

2шт.

56

A8101

GAUGE

ASSY. - fuel pressure

1шт.
