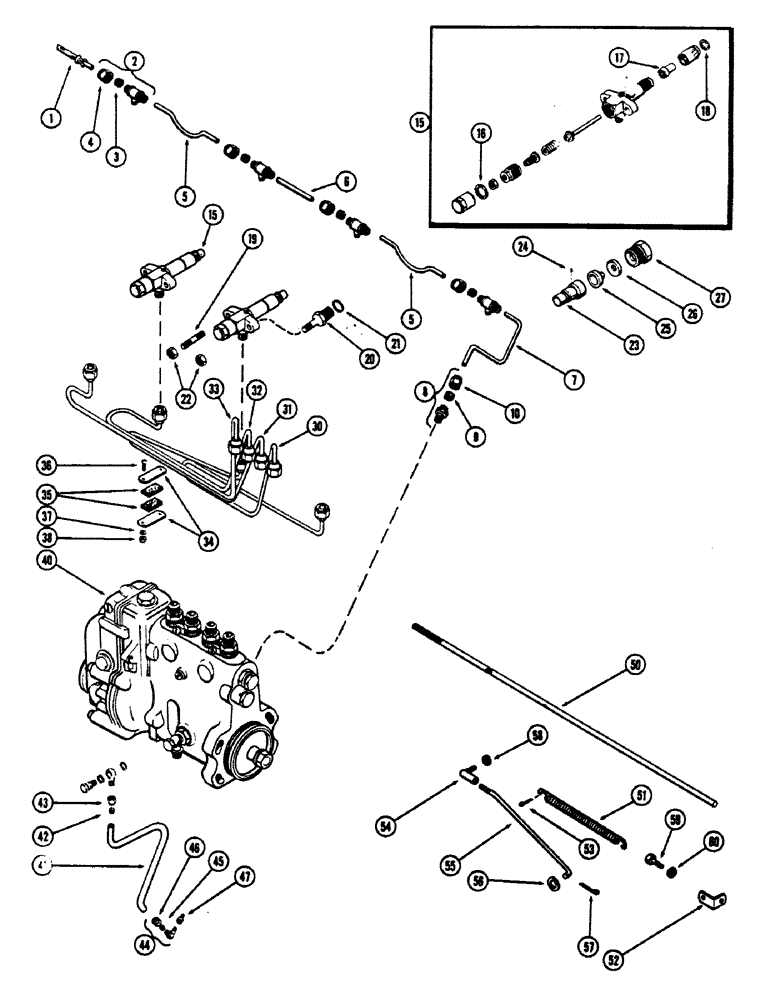

Запчасти Case 680CK (032) - FUEL INJECTION SYSTEM, (267) DIESEL ENGINE (10) - ENGINE

1

L26374

HOSE

- leak-off (To fuel tank)

1шт.

2

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off lines, Includes: Ref. 3 and 4

4шт.

3

222-102

SLEEVE,1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

5

A27981

TUBE

- leak-off, outer

2шт.

6

A20162

TUBE

- leak-off, center

1шт.

7

A22186

TUBE

- leak-off (Pump to no. 1 injector)

1шт.

8

A28098

VALVE

ASSY. - check, Includes: Ref. 9 and 10

1шт.

9

222-102

SLEEVE,1/4" Tube

1шт.

10

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

15

A8013

NOZZLE INJECTION

INJECTOR ASSY. - nozzle, Includes: Ref. 16 - 18

4шт.

16

A31062

GASKET

- injector cap

1шт.

17

A31159

NOZZLE INJECTION

NOZZLE ASSY. - atomizer, Includes: Ref. 18

1шт.

18

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

19

A27929

STUD

- nozzle holder, 3/8" N.C./N.F. x 2-3/16"

4шт.

20

A10678

STUD

- nozzle holder

4шт.

21

A10679

GASKET

- stud, 23/32 x 29/32 x 1/32" copper

4шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

8шт.

23

A22978

BODY

- powrcel

4шт.

24

A11810

PIN,3.19mm OD x 6.99mm L

- body locating

4шт.

25

A22975

CAP

- powrcel

4шт.

26

A11812

CLAMP

- powrcel

4шт.

27

A11813

PLUG

SCREW - powrcel retaining

4шт.

30

A20501

TUBE

- injector (No. 1 cylinder)

1шт.

31

A20502

TUBE

- injector (No. 2 cylinder)

1шт.

32

A20503

TUBE

- injector (No. 3 cylinder)

1шт.

33

A20504

TUBE

- injector (No. 4 cylinder)

1шт.

34

A28046

CLAMP

- injection tubes

2шт.

35

A28047

CUSHION

- injection tube clamps

2шт.

36

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamps, #10 x 1" N.C., rd. hd.

4шт.

37

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

38

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex

4шт.

40

A22636

PUMP ASSY. - injection (See Figure 36)

1шт.

41

A21786

TUBE - injection pump to oil gallery

1шт.

42

222-102

SLEEVE,1/4" Tube

1шт.

43

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

44

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - oil tube, Includes: Ref. 45 and 46

1шт.

45

222-102

SLEEVE,1/4" Tube

1шт.

46

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

47

221-1052

PLUG

BUSHING - reducer, Serial Range: 3/8-1/8"

1шт.

50

A34709

ROD - throttle, front

1шт.

51

A22619

SPRING

- throttle return

1шт.

52

A22620

CLIP

- anchor, return spring

1шт.

53

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

54

A10326

BALL JOINT

JOINT - ball, throttle linkage

1шт.

55

A33953

ROD

LINK - throttle rod

1шт.

56

195-15

WASHER,#12

- 1/4 x 1/2 x 1/16"

1шт.

57

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

58

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

59

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

60

92-6

LOCK WASHER,3/8"

1шт.
