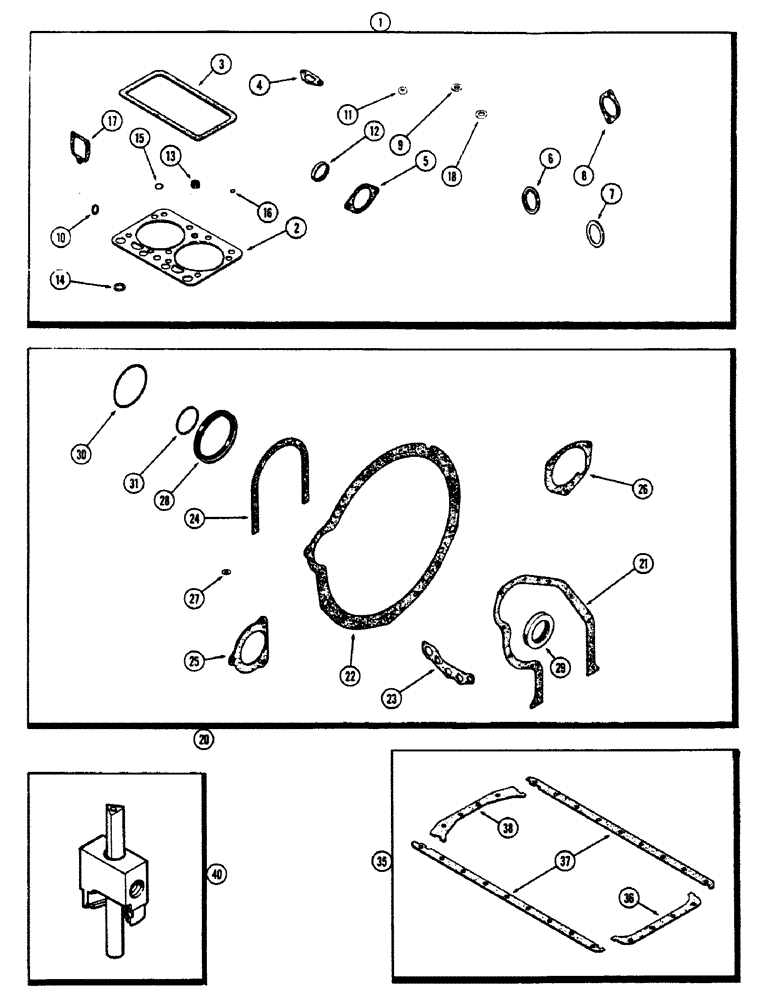

Запчасти Case 680CK (028) - ENGINE GASKET KITS, (267) DIESEL ENGINE (10) - ENGINE

1

A40575

KIT

VALVE GRIND GASKET KIT, Includes: Ref. 2 - 18

1шт.

For complete engine overhaul, order 1-A40575, 1-A40348, 1-A47616 & M20614

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A57595

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A21035

GASKET

- thermostat housing

1шт.

6

A11889

GASKET

- exhaust manifold

4шт.

7

A11888

MANIFOLD GASKET

- intake manifold

2шт.

8

A21055

MANIFOLD GASKET

- intake manifold elbow

1шт.

9

A23685

GASKET

- breather tube, 11/16 x 1-1/16 x 1/16" rubber

2шт.

10

A10679

GASKET

- nozzle holder stud

4шт.

11

A23684

GASKET

GASKET - cylinder head cover studs

4шт.

12

A21034

SEAL

SEAT - thermostat

1шт.

13

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

14

A7669

RING

- cylinder head water passage, 7/8 x 1-3/32 x 5/64" rubber

4шт.

15

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage, 1/2 x 11/16 x 3/32"

2шт.

16

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube, 3/16 x 5/16 x 1/16"

2шт.

17

A22939

GASKET

- decompressor lever (Not applicable)

2шт.

18

A34133

GASKET

- breather tube, 9/32 x 1/2 x 3/64" fiber

2шт.

20

A40348

KIT

CYLINDER BLOCK GASKET KIT, Includes: Ref. 21 - 31

1шт.

For complete engine overhaul, order 1-A40575, 1-A40348, 1-A47616 & M20614

1шт.

21

A33018

GASKET

- timing gear cover

1шт.

22

A11649

GASKET

- converter housing (Not applicable)

1шт.

23

A21084

GASKET

- oil filter base

1шт.

24

A32830

GASKET

- rear oil seal retainer

1шт.

25

A27933

GASKET

- starter

1шт.

26

1342741C1

GASKET

- water pump body

1шт.

27

A22670

SHIM,.005" Thk

Balancer to block .005" Thk

4шт.

27

A22671

SHIM,.010" Thk

Balancer to block .010" Thk

4шт.

28

A23085

OIL SEAL

- oil, crankshaft, rear, 4-3/4 x 5-3/4 x 1/2"

4шт.

29

A57342

SEAL

- oil, crankshaft, front, 2-5/8 x 3-5/8 x 1/2"

1шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump, 4-1/2 x 4-3/4 x 1/8"

1шт.

31

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (Not applicable)

1шт.

35

A7616

GASKET KIT

OIL PAN GASKET KIT, Includes: Ref. 36 - 38

1шт.

For complete engine overhaul, order 1-A40575, 1-A40348, 1-A47616 & M20614

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan, front

1шт.

37

NSS

NOT SOLD SEPARAT

GASKET - oil pan, sides

2шт.

38

NSS

NOT SOLD SEPARAT

GASKET - oil pan, rear

1шт.

40

M20614

SEAL KIT

SEAL KIT - valve (Set of 4)

2шт.

For complete engine overhaul, order 1-A40575, 1-A40348, 1-A47616 & M20614

1шт.
