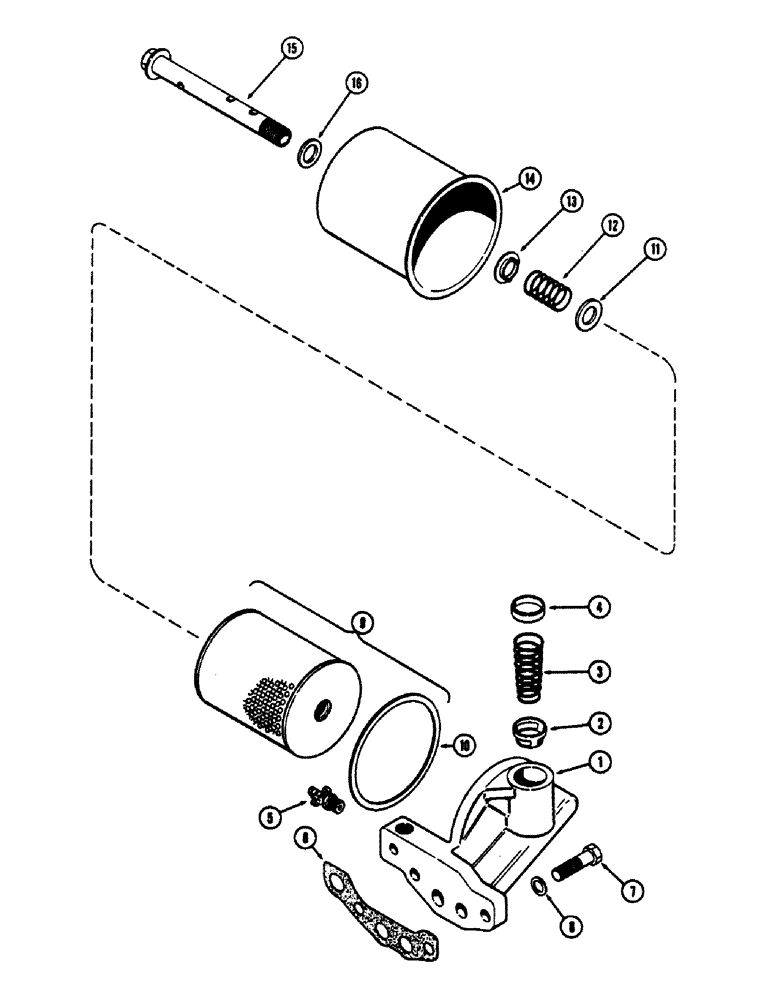

Запчасти Case 680CK (026) - OIL FILTER, (267) DIESEL ENGINE (10) - ENGINE

1

A23469

BASE

ASSY. - oil filter, Includes: Ref. 2 - 5

1шт.

2

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

A21090

VALVE

- relief

1шт.

5

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

6

A21084

GASKET

- filter base

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Base Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- base, 1/2 x 1-3/4" N.C. hex.

1шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter, Includes: Ref. 10 and 11

1шт.

10

A21473

GASKET

- filter, Serial Range: shell-base

1шт.

11

A21474

GASKET

- bolt, inner

1шт.

12

A21478

SPRING

- element tension

1шт.

13

A21477

RETAINER

SEAT - element spring

1шт.

14

A21471

SHELL

- oil filter body

1шт.

15

A21476

BOLT

STAND PIPE - retainer, shell & element

1шт.

16

A21479

GASKET

- bolt, outer

1шт.
