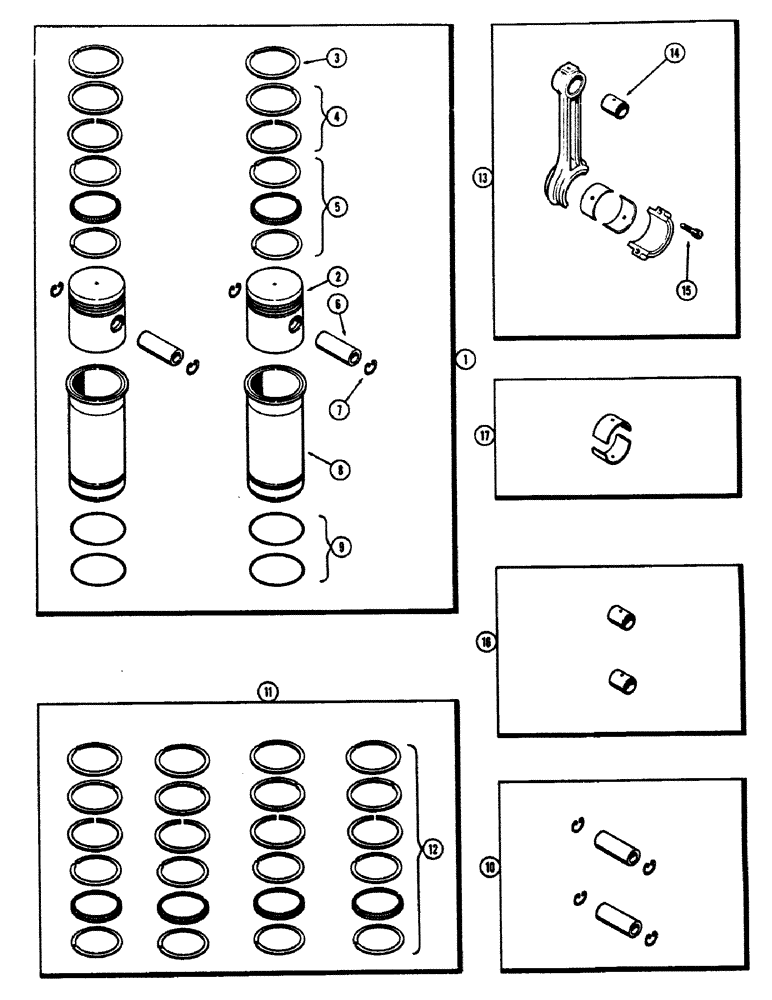

Запчасти Case 680CK (022) - PISTON ASSEMBLY AND CONNECTING RODS, (267) DIESEL ENGINE (10) - ENGINE

1

A40479

SLEEVE

PISTON & SLEEVE KIT (Set of 2), Includes: Ref. 2 - 9

2шт.

2

A24488

PISTON

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd & 3rd. groove (Order ref. 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 4th groove (Order ref. 12)

2шт.

6

A24487

PISTON PIN

PIN - piston (Order ref. 10) (Replaces NSS)

2шт.

7

A21016

RING, SNAP

RING - snap, piston pin retaining

4шт.

8

A23658

SLEEVE

- piston

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

10

A24517

PIN

KIT - w/snap rings (Set of 2)

2шт.

11

A40365

RING

KIT - re-ring (Set of 4), Includes: Ref. 12

1шт.

12

A40364

RING, PISTON

RING KIT - re-ring (Set of 1)

4шт.

13

A24424

ROD

ASSY. - connecting, Includes: Ref. 14 and 15

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 16)

1шт.

15

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- conn. rod cap

2шт.

16

A21722

BUSHING

KIT - piston pin (Set of 2)

2шт.

17

A20393

LINING

LINER ASSY. - conn. rod brg. (Std.)

4шт.

17

A20569

JOURNAL

LINER ASSY. - conn. rod brg. (-.002")

4шт.

17

A20571

BEARING LINER

LINER ASSY. - conn. rod brg. (-.010")

4шт.

17

A20573

KIT

LINER ASSY. - conn. rod brg. (-.020")

4шт.

17

A20576

LINING

LINER ASSY. - conn. rod brg. (.-030")

4шт.
