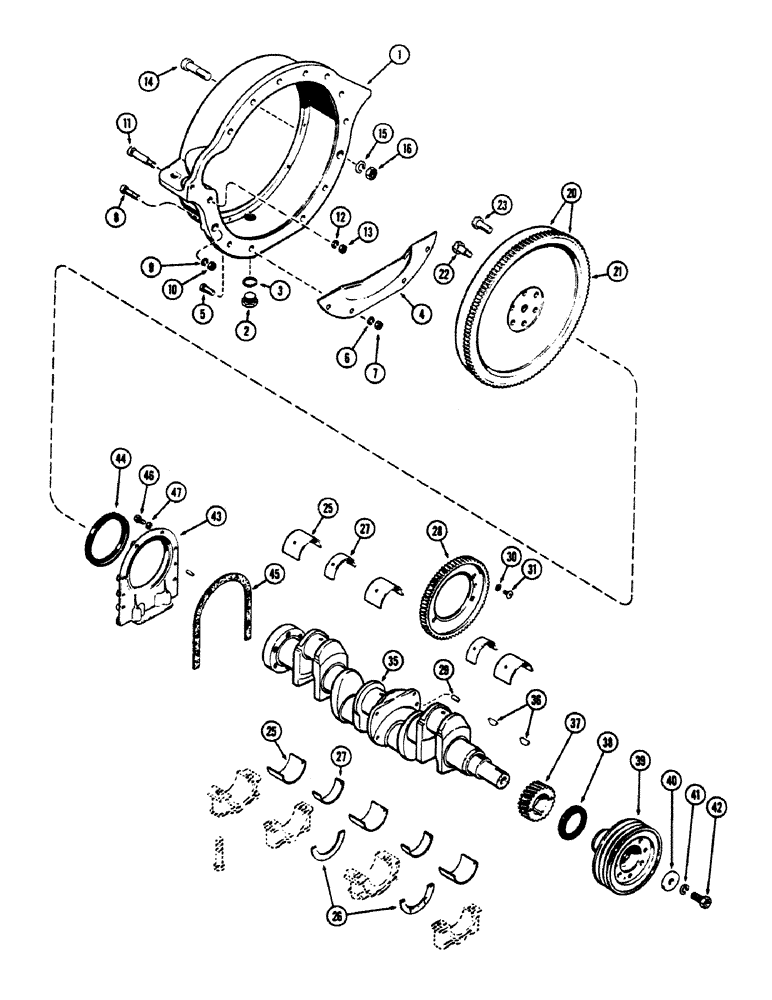

Запчасти Case 680CK (020) - FLYWHEEL AND HOUSING, (267) DIESEL ENGINE (10) - ENGINE

1

A34710

HOUSING - flywheel

1шт.

2

A20917

PLUG

- drain, housing

1шт.

3

A20916

MANIFOLD GASKET

GASKET - housing, drain plug

1шт.

4

A58931

GUARD

SHIELD - dust, clutch housing

1шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Dust shield Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Dust shield Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

8

A20108

BOLT - flywheel hsg., 3/4 x 2-3/4" N.F. hex., spec.

2шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

2шт.

11

A32608

STEP BOLT

BOLT - shoulder, 1/2 x 3" N.C. spec.

1шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Housing to block Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

14

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- hsg. to block, 1/2 x 1-3/4" N.F. hex.

3шт.

15

92-8

LOCK WASHER,1/2"

6шт.

16

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

3шт.

20

A34707

WASHER

FLYWHEEL ASSY., Includes: Ref. 21

1шт.

21

A27920

GEAR

- ring, starter

1шт.

22

A11549

STEP BOLT

BOLT - dowel, flywheel, 9/16 x 1-17/32" N.F. spec.

2шт.

23

A11550

BOLT (SPREADER)

BOLT - flywheel, 5/8 x 1-1/2" N.C. spec.

4шт.

25

A28687

LINING

LINER KIT - main brg. (Wide) (Std.), crankshaft

3шт.

25

A7182

KIT

LINER KIT - main brg. (Wide) (-.002"), crankshaft

3шт.

25

A7188

BEARING LINER

LINER KIT - main brg. (Wide) (-.010"), crankshaft

3шт.

25

A42193

LINER

KIT - main brg. (Wide) (-.020"), crankshaft

3шт.

25

A7200

KIT

LINER KIT - main brg. (Wide) (-.030"), crankshaft

3шт.

26

A27835

WASHER

- thrust, center brg. cap (Std.), crankshaft

2шт.

26

A7204

WASHER

- thrust, center brg. cap (.006"), crankshaft

2шт.

27

A20394

LINING

LINER KIT - main brg. (Narrow) (Std.), crankshaft

2шт.

27

A20579

LINING

LINER KIT - main brg. (Narrow) (-.002"), crankshaft

2шт.

27

A20582

LINING

LINER KIT - main brg. (Narrow) (-.010"), crankshaft

2шт.

27

A20585

KIT

LINER KIT - main brg. (Narrow) (-.020"), crankshaft

2шт.

27

A20588

KIT

LINER KIT - main brg. (Narrow) (-.030"), crankshaft

2шт.

28

A22576

GEAR

ASSY. - drive, balancer, crankshaft, Includes: Ref. 29

1шт.

29

A8134

PIN

- balancer drive gear locating, crankshaft

1шт.

30

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, , Crankshaft Ext Csk Tooth, 3/8"

4шт.

31

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - balancer, gear retaining, crankshaft

4шт.

35

A22578

CRANKSHAFT

1шт.

SEAL WEAR SLEEVE KIT IS PART A43194

1шт.

36

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Timing gear & fan drive pulley, crankshaft #C, 5/16" x 1 1/8", HT

2шт.

37

A27837

GEAR

- crankshaft

1шт.

38

A57342

SEAL

- oil, front, 2-5/8 x 3-5/8 x 1/2", crankshaft

1шт.

39

A60012

PULLEY

- fan drive, crankshaft

1шт.

40

A27903

WASHER

- fan drive pulley screw, crankshaft

1шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft 5/8"

1шт.

42

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- fan drive pulley, 5/8 x 1-1/2" N.F. Spec., Crankshaft

1шт.

43

A57457

RETAINER

ASSY. - rear oil seal, crankshaft

1шт.

44

A23085

OIL SEAL

- oil, rear, 4-3/4 x 5-3/4 x 1/2", crankshaft

1шт.

45

A32830

GASKET

- rear oil seal retainer, crankshaft

1шт.

46

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer, crankshaft Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

47

92-6

LOCK WASHER,3/8"

crankshaft 3/8"

6шт.
