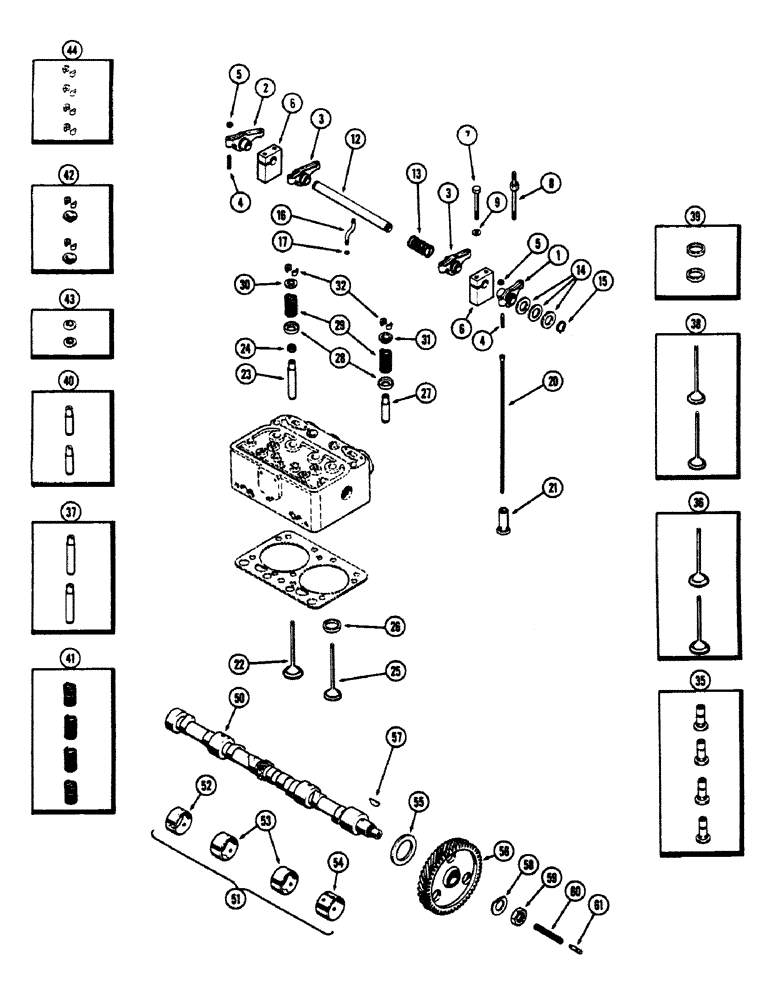

Запчасти Case 680CK (018) - VALVE MECHANISM AND CAMSHAFT, (267) DIESEL ENGINE (10) - ENGINE

1

A22324

ROCKER

ARM ASSY. rocker, exhaust (Nos. 1 & 3 cyl.), Includes: Ref. 4 and 5

2шт.

2

A22326

ROCKER

ARM ASSY. rocker, exhaust (Nos. 2 & 4 cyl.), Includes: Ref. 4 and 5

2шт.

3

A22322

ROCKER

ARM ASSY. - rocker, intake

4шт.

4

A22105

SCREW - adjusting, rocker arm

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adj. screw, 3/8" N.C. jam

1шт.

6

A27881

BRACKET

- rocker shaft

4шт.

7

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Bracket Hex, 7/16"-14 x 3 3/4", G5

4шт.

8

A57458

STUD

- bracket & cylinder head cover

4шт.

9

92-7

LOCK WASHER,7/16"

4шт.

12

A57532

SHAFT

ASSY. - rocker arms

2шт.

13

A27877

SPRING

- rocker shaft

2шт.

14

A27878

WASHER

- rocker shaft, 29/32 x 1-5/16 x 1/32"

14шт.

15

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

16

A27879

TUBE

- oil, rocker shaft

2шт.

17

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, 3/16 x 5/16 x 1/16"

2шт.

20

A21060

ROD

- push

8шт.

21

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 35)

8шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 36)

4шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 37)

4шт.

24

A10726

SEAL

SHIELD - oil, intake valve

4шт.

25

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 38)

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 39)

4шт.

27

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 40)

4шт.

28

A27866

SEAT

- valve springs

8шт.

29

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 41)

8шт.

30

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order ref. 42)

4шт.

31

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. 43)

4шт.

32

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order ref. 44)

16шт.

35

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.

36

A40351

KIT

VALVE KIT - intake (Set of 2)

2шт.

37

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

38

A24770

VALVE

KIT - exhaust (Set of 2)

2шт.

39

A57484

INSERT

KIT - exhaust valve (Set of 2)

2шт.

40

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

41

A21694

SPRING

KIT - valves (Set of 4)

2шт.

42

A21657

LOCK

RETAINER KIT - intake valve (2 rets. & 4 locks)

2шт.

43

A57433

COIL

ROTO CAP KIT - exhaust valve (Set of 2)

2шт.

44

A40352

LOCK

KIT - valve spring (Set of 8)

2шт.

50

A23495

CAMSHAFT

1шт.

51

A23577

KIT

BUSHING KIT - camshaft, Includes: Ref. 52 - 54

1шт.

52

NSS

NOT SOLD SEPARAT

BUSHING - rear, 1-5/32" wide

1шт.

53

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, 1-7/16" wide

2шт.

54

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-21/32" wide

1шт.

55

A21017

WASHER

- thrust

1шт.

56

A22604

GEAR

- camshaft

1шт.

57

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Camshaft gear #18, 1/4" x 1 1/8"

1шт.

58

A26444

LOCK WASHER

- lock, camshaft nut

1шт.

59

A26445

NUT

- camshaft

1шт.

60

CASA27853

SPRING

- thrust plunger

1шт.

61

A27852

PLUNGER

- thrust

1шт.
