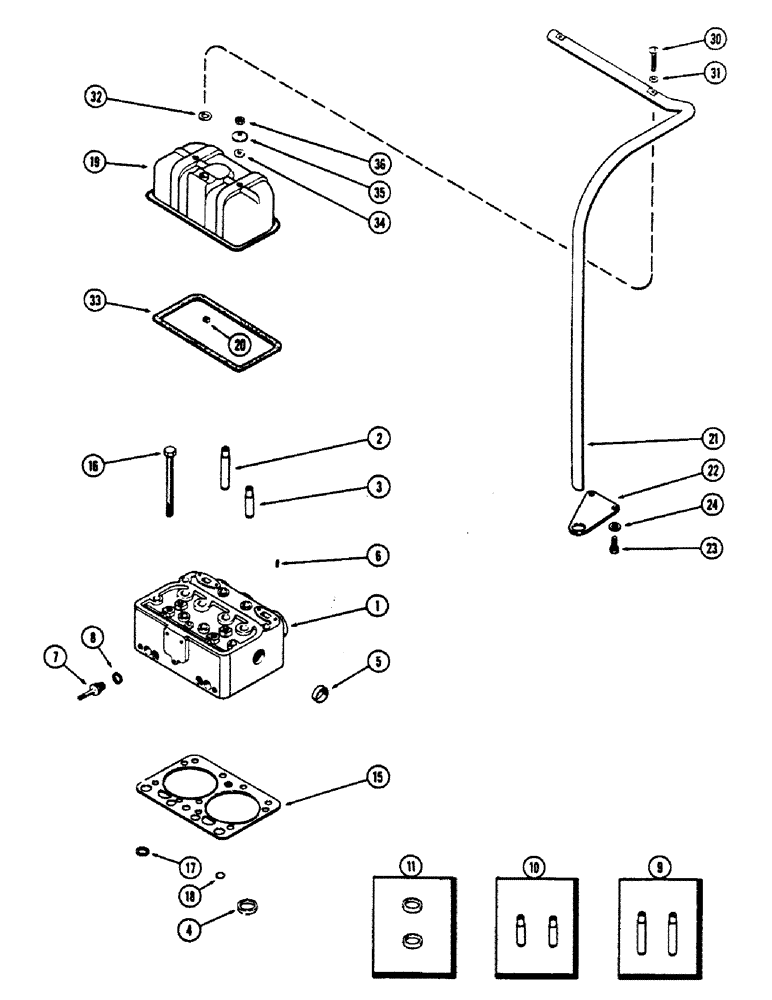

Запчасти Case 680CK (016) - CYLINDER HEAD AND COVER, (267) DIESEL ENGINE (10) - ENGINE

1

A33643

HEAD (CYLINDER)

HEAD ASSY. - cylinder (Casting No. A33613), Includes: Ref. 2 - 8

2шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 9)

2шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 10)

2шт.

4

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 11)

2шт.

5

A34124

PLUG,Cup, 1 5/8", Stainless

- cylinder head, 1-41/64" cup type

2шт.

6

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel locating, 1/8 x 17/64"

2шт.

7

A10678

STUD

- nozzle holder

2шт.

8

A10679

GASKET

- stud, 23/32 x 29/32 x 1/32" copper

2шт.

9

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

10

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

11

A57484

INSERT

KIT - exhaust valve (Set of 2)

2шт.

15

A23118

GASKET

- cylinder head

2шт.

16

A23355

BOLT

- cylinder head, 9/16 x 6" N.C. hex.

18шт.

17

A7669

RING

- water passage, 7/8 x 1-3/32 x 5/64" rubber

4шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage, 1/2 x 11/16 x 3/32"

2шт.

19

A23681

COVER ASSY

. - cylinder head, Includes: Ref. 20

2шт.

20

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube screw, 1/4" N.C. speed

1шт.

21

A34780

TUBE - breather

1шт.

22

A34781

BRACKET - breather tube

1шт.

23

A9936

BOLT - bracket, 3/8 x 1-1/2" N.C. hex.

2шт.

24

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

6шт.

30

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- breather tube, 1/4 x 2" N.C., rd. hd

2шт.

31

A34133

GASKET

- 9/32 x 1/2 x 3/64" fiber

2шт.

32

A23685

GASKET

- 11/16 x 1-1/16 x 1/16" rubber

2шт.

33

A57595

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

34

A23684

GASKET

GASKET - cover stud

4шт.

35

A23683

WASHER

- cover stud

4шт.

36

25-117

NUT,7/16"-20, G5

- cover stud, 7/16" N.F. hex.

4шт.
