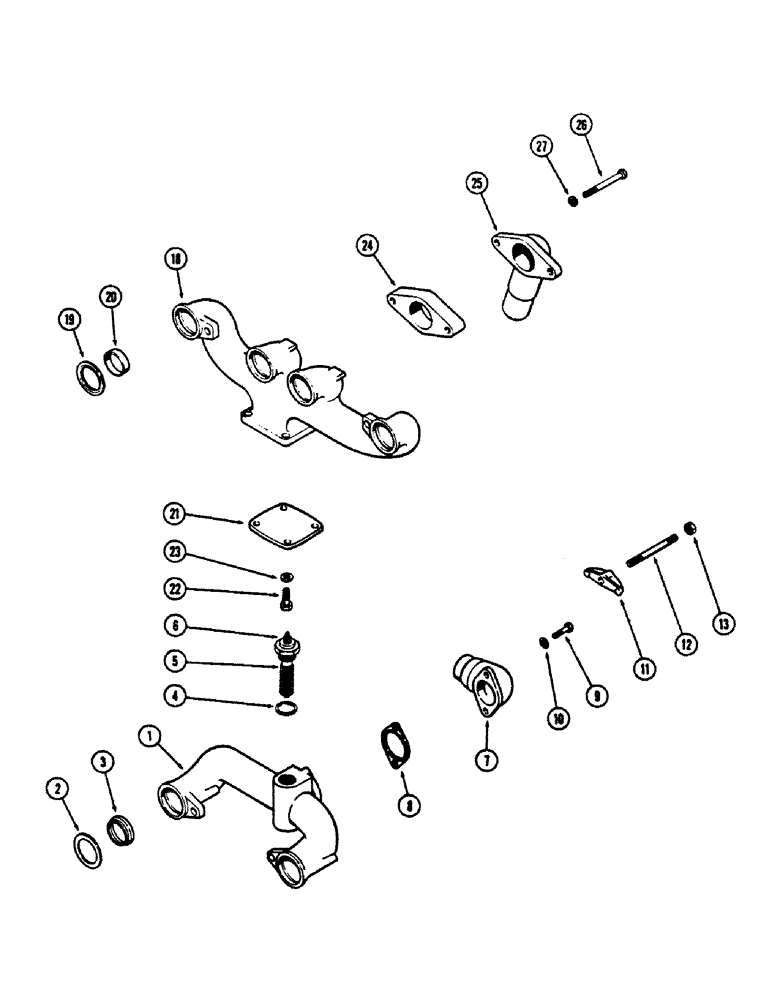

Запчасти Case 680CK (012) - MANIFOLD, (267) DIESEL ENGINE (10) - ENGINE

1

A21005

MANIFOLD - intake

1шт.

2

A11888

MANIFOLD GASKET

- intake manifold

2шт.

3

A21383

CAP

FERRULE - intake manifold

2шт.

4

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

5

A37775

HEATER

ASSY. - intake manifold, Includes: Ref. 6

1шт.

6

129-503

NUT,1/4"-20, Brass

1шт.

7

A21007

ELBOW - intake manifold

1шт.

8

A21055

MANIFOLD GASKET

- elbow

1шт.

9

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

A24368

CLAMP

- intake & exhaust manifolds

4шт.

12

A27911

STUD

- clamp, 7/16" N.C./N.F. x 6"

4шт.

13

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.

18

A20385

MANIFOLD - exhaust

1шт.

19

A11889

GASKET

- exhaust manifold

4шт.

20

A21648

CAP

FERRULE - exhaust manifold

4шт.

21

A20387

COVER - exhaust manifold

1шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

A57467

SPACER - exhaust elbow

1шт.

25

A17488

ELBOW

- exhaust

1шт.

26

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/2" N.C. hex.

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.
