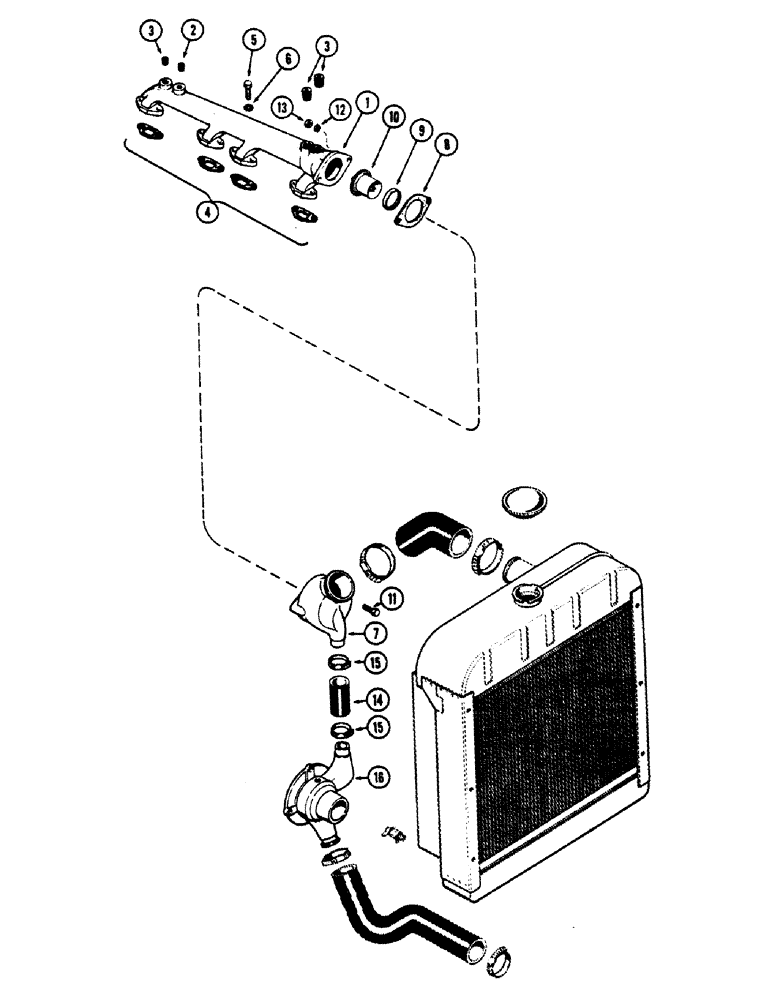

Запчасти Case 680CK (006) - WATER MANIFOLD & THERMOSTAT HOUSING, (267) DIESEL ENGINE (10) - ENGINE

1

A57995

MANIFOLD

ASSY. - water w/plugs (Replaces A26332), Includes: Ref. 2 and 3

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" square socket head)

1шт.

3

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" square socket head)

3шт.

4

A27905

GASKET

- water manifold

4шт.

5

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

6

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

7

A21032

HOUSING - thermostat

1шт.

8

A21035

GASKET

- thermostat housing

1шт.

9

A21034

SEAL

SEAL - thermostat

1шт.

10

A21033

THERMOSTAT

ASSY

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

14

A23110

HOSE,1.25" ID x 3.25", SAE 20R2 Class R

SAE 20R4 Class R Grade 2 - Water by-pass 1.25" ID x 3.25", SAE 20R2 Class R

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

16

A34009

PUMP

ASSY. - water (See Figure 8)

1шт.
