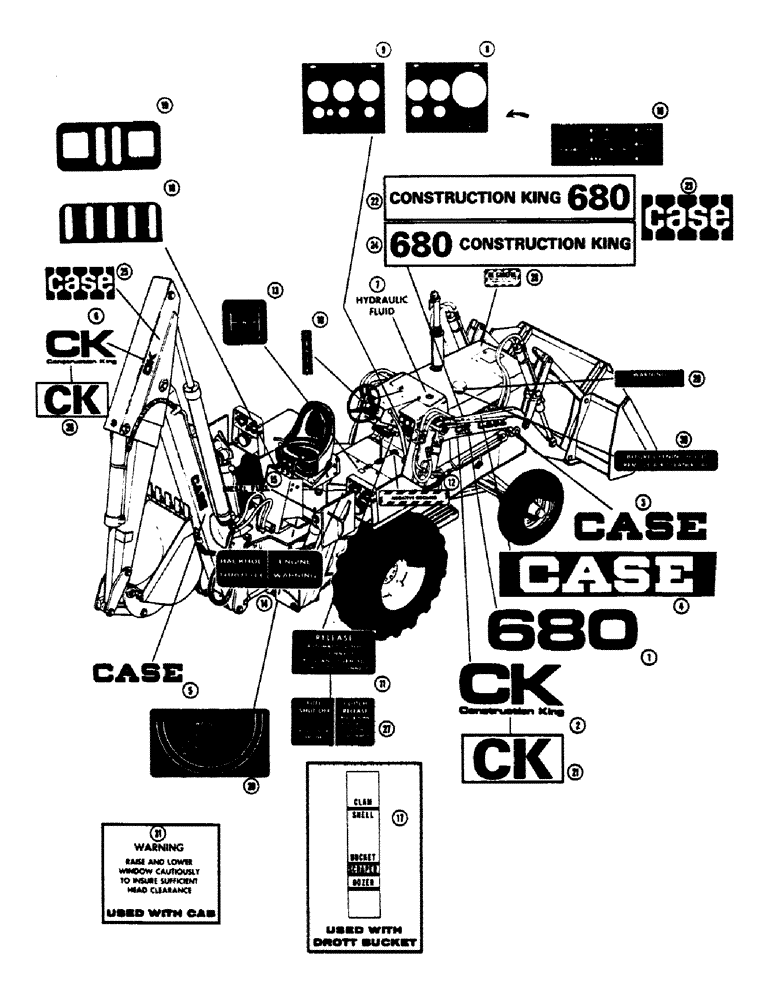

Запчасти Case 680CK (202) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

321-1005

DECAL

- 680, at loader lift frame (If used)

2шт.

2

321-1003

DECAL

- CK, at loader lift frame (If used)

2шт.

3

321-1010

DECAL

- CASE, at loader lift frame (If used)

2шт.

4

321-1302

DECAL - CASE, at R.H. hood support channel (If used)

1шт.

4

321-1303

DECAL - CASE, at L.H. hood support channel (If used) Not illustrated

1шт.

5

321-1010

DECAL

- CASE, at boom (If used)

2шт.

6

321-1003

DECAL

- CK, at dipper (If used)

2шт.

L45505

KIT

DECAL KIT - complete, 680 CK, Includes: Ref. 7 - 31

1шт.

7

321-229

DECAL

- hydraulic fluid

1шт.

8

321-1262

DECAL - instrument panel, R.H.

1шт.

9

321-1263

DECAL

- instrument panel, L.H.

1шт.

10

321-1001

DECAL

- forward and reverse shift pattern

1шт.

11

321-1134

DECAL

- automatic clutch disconnect information (If used)

1шт.

12

321-704

DECAL

- negative ground

1шт.

13

321-1000

DECAL

- transmission shift pattern

1шт.

14

321-1261

DECAL

- backhoe throttle and engine warning light

1шт.

15

321-230

DECAL

- diesel fuel

1шт.

16

321-1318

DECAL - control valve, DROTT 4-IN-1 BUCKET

1шт.

17

321-14225

DECAL - bucket position, DROTT 4-IN-1 BUCKET

1шт.

18

321-1264

DECAL

- backhoe control panel (Used on individual lever console)

1шт.

19

321-1037

DECAL - backhoe control panel (Used on dual lever console)

1шт.

20

321-1301

DECAL - backhoe removal warning

1шт.

21

321-1560

DECAL

- CK, at loader lift frame (If used)

2шт.

22

321-1556

DECAL

- CONSTRUCTION KING 680 (R.H.) Hood support channel (If used)

1шт.

23

321-1440

DECAL

- CASE (Hood support channel) If used

2шт.

24

321-1557

DECAL

- 680 CONSTRUCTION KING (L.H.) Hood support channel (If used) Not illustrated

1шт.

25

321-1440

DECAL

- CASE (At control console and at both sides of dipper) If used

3шт.

26

321-1482

DECAL

- CK (Both sides of dipper) If used

2шт.

27

321-1408

DECAL - FUEL SHUT OFF and CLUTCH RELEASE, if used

1шт.

28

321-122

DECAL

- cooling system, at radiator cap

1шт.

29

321-1012

DECAL

- cold weather start warning

1шт.

30

321-1006

DECAL

- hood raising instructions, at air cleaner cap

1шт.

31

321-1291

DECAL - warning, rear window clearance

1шт.
