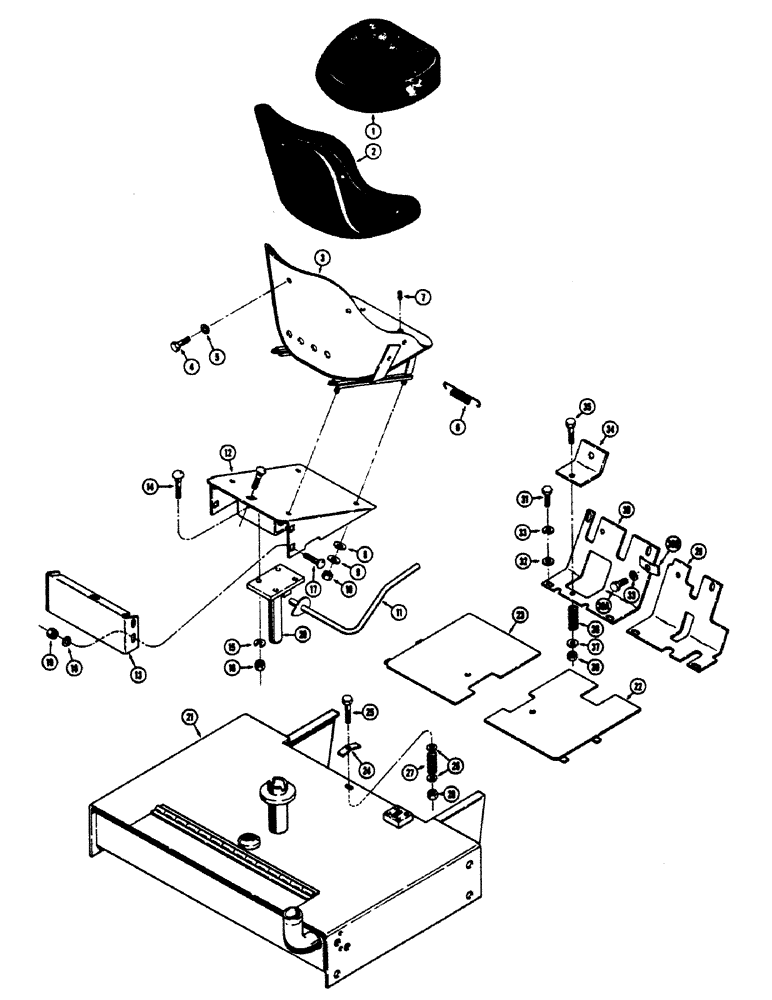

Запчасти Case 680CK (106) - SEAT PLATFORM, FLOOR PLATES AND SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

L48539

SEAT

ASSEMBLY - operator's (Replaces L11074), Includes: Ref. 1 - 10

1шт.

1

L30536

BACKREST

SPARE PART Seat

1шт.

2

L30535

SEAT CUSHION

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

5

195-525

WASHER,3/8", SAE

5шт.

6

L30533

VALVE SPRING

Adjusting

2шт.

7

L30534

X

PIN - cushion alignment

2шт.

8

195-21

WASHER,5/16"

Plain

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

25-115

NUT,5/16"-24, G5

Hex

4шт.

11

L16245

LEVER

Seat adjustment

1шт.

12

L16669

SPARE PART Seat

1шт.

13

L11422

SPARE PART Seat

1шт.

14

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

Hex

4шт.

17

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

5шт.

18

92-5

LOCK WASHER,5/16"

5шт.

19

9635082

NUT,5/16" - 18, Gr 5

Hex

5шт.

20

L16251

POST - seat, inside

1шт.

21

REF

INSTRUCTION

TANK ASSEMBLY - fuel (See Figure 30 for proper valve)

1шт.

22

L26282

SPARE PART Floor, RH (Rear)

1шт.

23

L26283

SPARE PART Floor, LH (Rear)

1шт.

24

L11056

SPARE PART Floor plate, battery access

1шт.

25

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

26

195-21

WASHER,5/16"

Plain

2шт.

27

A33749

SPRING

Compression, latch

1шт.

28

131-4

LOCK NUT,5/16"-18, GB

1шт.

29

L25716

SPARE PART Floor board, RH (Front)

1шт.

30

L25723

SPARE PART PLATE - floor board, LH (Front)

1шт.

30a

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

30b

L11056

SPARE PART Floor plate

1шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

32

92-5

LOCK WASHER,5/16"

7шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

Plain (5/16")

6шт.

34

L26303

COVER

Access, floor board

1шт.

35

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

36

A33749

SPRING

Compression, latch

1шт.

37

195-21

WASHER,5/16"

Plain

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

1шт.
