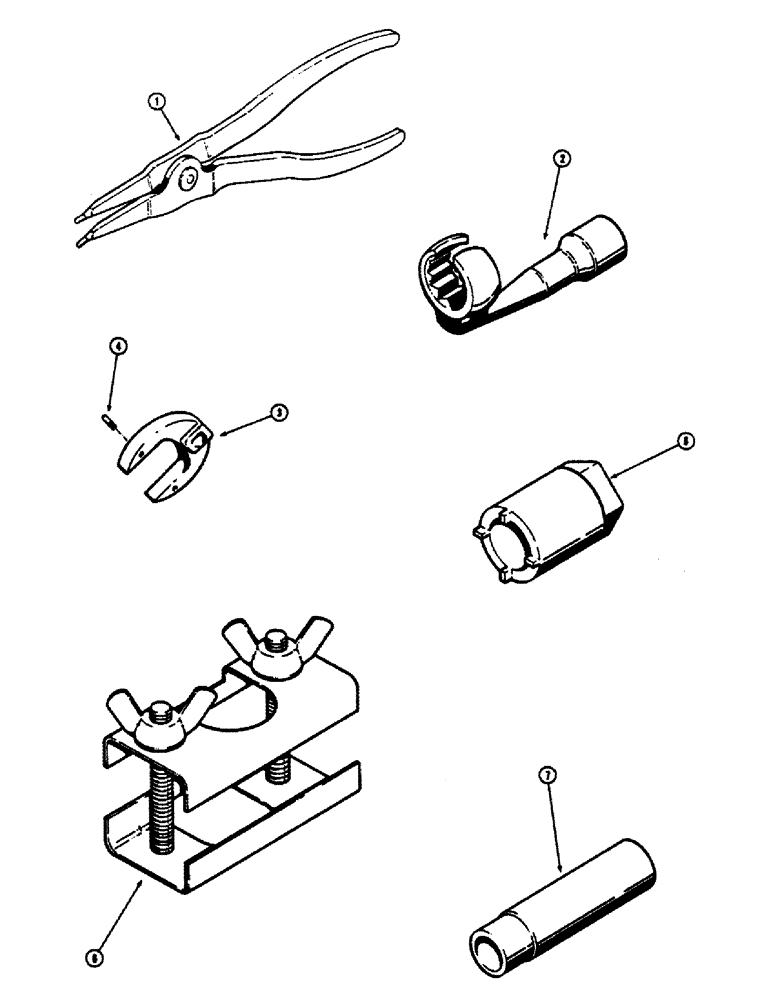

Запчасти Case 680CK (204) - TOOLS (88) - ACCESSORIES

1

D32049

TOOL

PLIERS - snap ring

1шт.

2

D38971

TOOL

WRENCH - crowfoot, 1/2" drive (For 1" nut)

1шт.

2

D27216

TOOL

WRENCH - crowfoot, 1/2" drive (For 1-1/16" nut)

1шт.

2

D48865

TOOL

WRENCH - crowfoot, 1/2" drive (For 1-1/8" nut)

1шт.

2

D28774

TOOL ASSY.

WRENCH - crowfoot, 1/2" drive (For 1-1/4" nut)

1шт.

D4410

WRENCH SET - spanner (For removing and installing packing glands in threaded gland type hydraulic cylinders), Includes: Ref. 3 and 4

1шт.

3

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinders with 1-1/4" or 1-1/2" dia. piston rods, Includes: Ref. 4

1шт.

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" dia. piston rod, Includes: Ref. 4

1шт.

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" dia. piston rod, Includes: Ref. 4

1шт.

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" dia. piston rods, Includes: Ref. 4

1шт.

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" dia. piston rods, Includes: Ref. 4

1шт.

D44116

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" or 5" I.D. cylinders with 2-1/4" dia. piston rod, Includes: Ref. 4

1шт.

4

D30107

PIN

- repair, spanner wrench (For 2-1/2" through 4" I.D. cylinders)

3шт.

D44118

SPARE PART

PIN - repair, spanner wrench (For D44116 wrench only)

3шт.

D45700

NO LONGER SERVICED

TOOL SET - loader control valve, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

WRENCH - spanner, seal retainer

1шт.

6

NSS

NOT SOLD SEPARAT

COMPRESSOR - spool spring

1шт.

7

NSS

NOT SOLD SEPARAT

TOOL - snap ring installation

1шт.

8

L43678

KIT

- hand throttle and clutch disconnect cable lubricant (Not illustrated) (Replaces L43768)

1шт.
