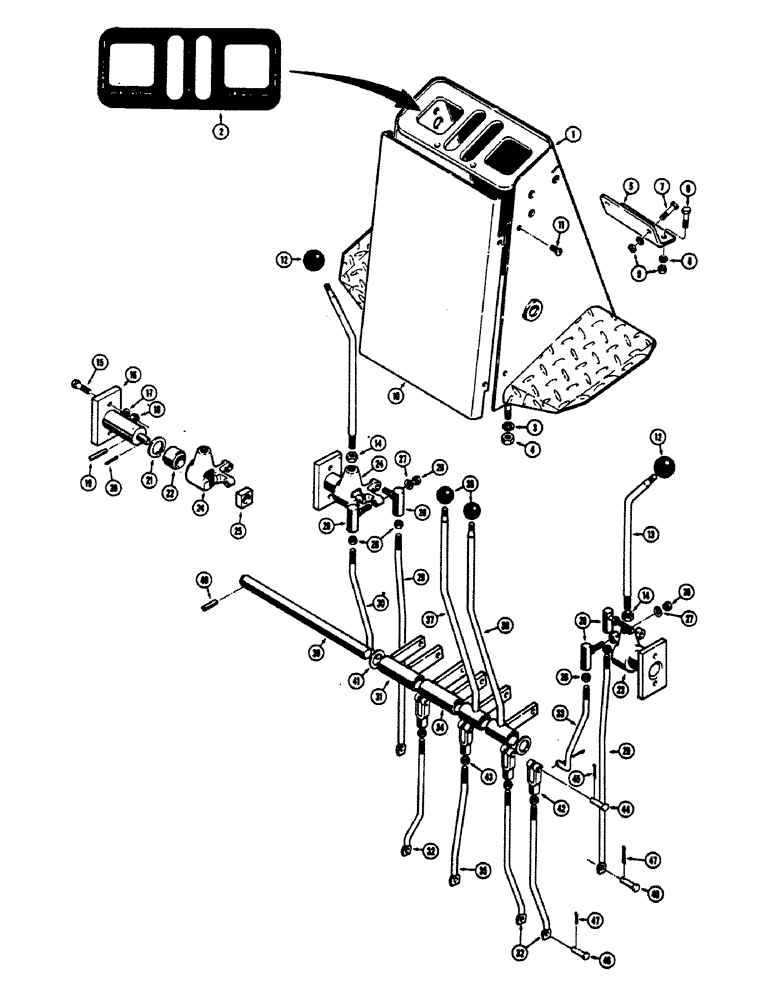

Запчасти Case 680CK (144) - TWIN LEVER BACKHOE CONTROL (84) - BOOMS, DIPPERS & BUCKETS

1

D45531

CONSOLE - backhoe control

1шт.

2

321-1037

DECAL - control console

1шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

2шт.

5

D38292

COVER PLATE

BRACKET - console mounting

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

4шт.

10

L43733

COVER - backhoe control console

1шт.

11

75-58

BOLT (MACHINE),5/16" x 1/2"

RHMS - 5/16"-18 NC x 1/2"

4шт.

12

CAS31375

KNOB

- control lever, large

2шт.

13

D38304

HANDLE

LEVER - control, outer (R.H. boom and swing, L.H. dipper and bucket)

2шт.

14

25-1110

NUT,5/8"-18, G5

- hex. (5/8"-18 NF)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

16

D38299

SUPPORT

STUD - lever pivot

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

4шт.

19

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

21

D1038223

SPRING

Ring, Snap, 1.438", Int, #143

2шт.

22

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- pivotal ball type

2шт.

23

D38303

ADAPTER

LEVER - pivotal, R.H.

1шт.

24

D38302

ADAPTER

LEVER - pivotal, L.H.

1шт.

25

D38305

BLOCK

WEAR BLOCK - lever

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8"-24 NF)

8шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

D38296

JOINT

- ball type

4шт.

29

L42012

ROD - connecting, dipper and swing control

2шт.

30

D45494

ROD - connecting, bucket control (Upper)

1шт.

31

D45500

LEVER - pivot, bucket control

1шт.

32

D45490

ROD - connecting, bucket control (Lower)

1шт.

33

D45493

ROD - connecting, boom control (Upper)

1шт.

34

D45499

LEVER - pivot, boom control

1шт.

35

D45491

ROD - connecting, boom control (Lower)

1шт.

36

70213

KNOB

- control lever, small (Used with D45496 and D45497 levers only)

2шт.

36

D49996

KNOB

- control lever, small (Used with L46264 levers only)

2шт.

37

D45496

LEVER

- stabilizer control, L.H. (When stock is exhausted, order L46264 lever and D49996 knob for service)

1шт.

37

L46264

LEVER - stabilizer control, L.H.

1шт.

38

NLS

NO LONGER SERVICED

- stabilizer contro, R.H. (When stock is exhausted, order L46264 lever and D49996 knob for service)

1шт.

38

L46264

LEVER - stabilizer control, R.H.

1шт.

39

D30817

SHAFT

- lever pivot

1шт.

40

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

41

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16" dia.)

1шт.

42

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

4шт.

43

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8"-24 NF)

4шт.

44

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

4шт.

45

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

46

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting rod mounting 5/16" x .940"

6шт.

47

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.
