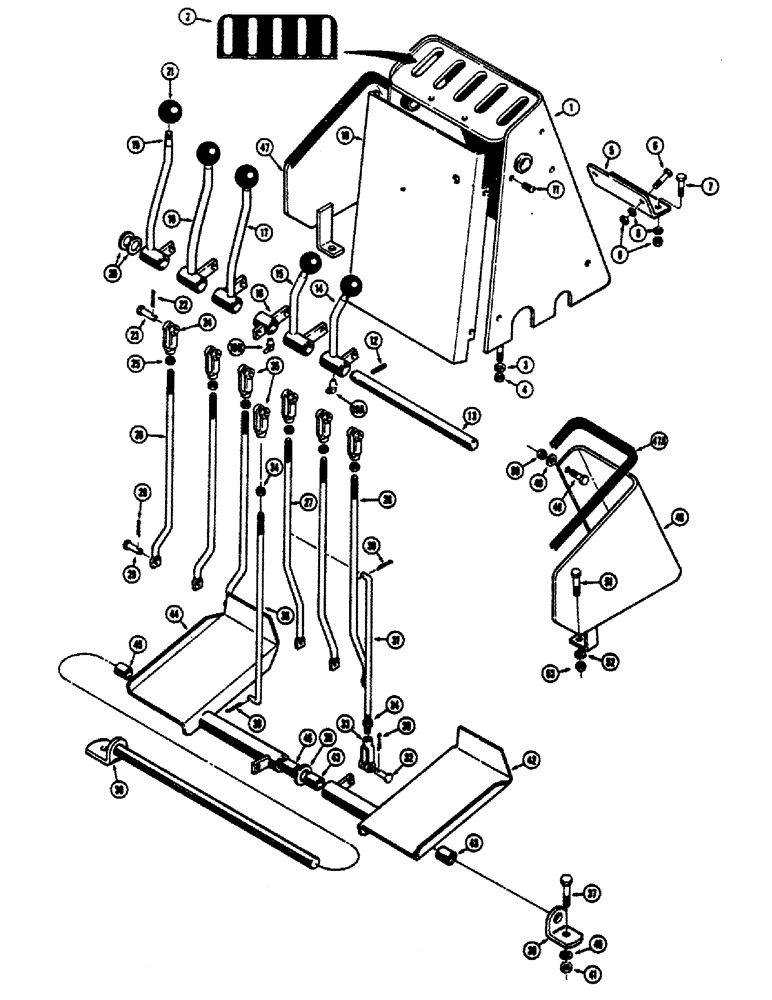

Запчасти Case 680CK (142) - INDIVIDUAL LEVER BACKHOE CONTROL (FOOT SWING) (84) - BOOMS, DIPPERS & BUCKETS

1

D45375

CONSOLE - backhoe control

1шт.

2

321-1264

DECAL

- control console

1шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

2шт.

5

D38292

COVER PLATE

BRACKET - console mounting

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

4шт.

10

L43733

COVER - backhoe control console

1шт.

11

75-58

BOLT (MACHINE),5/16" x 1/2"

RHMS - 5/16"-18 NC x 1/2"

4шт.

12

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

13

D30817

SHAFT

- control levers

1шт.

14

D45371

LEVER - control, R.H. stabilizer (When stock is exhausted, order D48265 lever and 219-92 fitting for service)

1шт.

14

D48265

LEVER

- control, R.H. stabilizer (When stock is exhausted, order L46693 lever and D49996 knob for service)

1шт.

14

L46693

HANDLE

LEVER - control, R.H. stabilizer

1шт.

15

D45370

LEVER

- control, L.H. stabilizer (When stock is exhausted, order D48266 lever and 219-92 fitting for service)

1шт.

15

D48266

LEVER

- control, L.H. stabilizer (When stock is exhausted, order L46692 lever and D4996 knob for service)

1шт.

15

L46692

HANDLE

LEVER - control, L.H. stabilizer

1шт.

16

D38320

LEVER

- pivot, swing (When stock is exhausted, order D48270 lever and 219-39 fitting for service)

1шт.

16

D48270

LEVER

- pivot swing

1шт.

17

D45369

LEVER - control, boom (When stock is exhausted, order D48267 lever and 219-92 fitting for service)

1шт.

17

D48267

LEVER

- control, boom (When stock is exhausted, order L46694 lever and D49996 knob for service)

1шт.

17

L46694

HANDLE

LEVER - control, boom

1шт.

18

D45368

LEVER - control, dipper (When stock is exhausted, order D48268 lever and 219-92 fitting for service)

1шт.

18

D48268

LEVER

- control, dipper (When stock is exhausted, order L46695 lever and D49996 knob for service)

1шт.

18

L46695

HANDLE

LEVER - control, dipper

1шт.

19

D45367

LEVER - control, bucket (When stock is exhausted, order D48269 lever and 219-92 fitting for service)

1шт.

19

D48269

LEVER

- control, bucket (When stock is exhausted, order L46696 lever and D49996 knob for service)

1шт.

19

L46696

HANDLE

LEVER - control, bucket

1шт.

19a

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degrees (If used)

5шт.

19b

219-39

FITTING

- grease, 45 degrees (If used)

1шт.

20

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16")

1шт.

21

70213

KNOB

- control lever (Used with 3/8" NF threaded lever)

5шт.

21

D49996

KNOB

- control lever (Used with 1/2" NF threaded lever)

5шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

23

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

6шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

6шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8"-24 NF)

6шт.

26

D45372

ROD - connecting, R.H. and L.H. stabilizer, boom, dipper and bucket control

5шт.

27

D38314

ROD

- connecting, swing control

1шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

29

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke mounting 5/16" x .940"

6шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

31

D21762

ROD

- connecting, R.H. swing control

1шт.

32

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

1шт.

33

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

1шт.

34

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8"-24 NF)

2шт.

35

D37600

YOKE

- connecting rod

1шт.

36

D30819

ROD

- connecting, L.H. swing control

1шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

38

D37618

SHAFT - swing pedals

1шт.

39

D37616

BRACKET - shaft

1шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

2шт.

42

D47224

PEDAL

- swing, R.H., Includes: Ref. 43

1шт.

43

D30706

BUSHING

- pedal

2шт.

44

D47225

PEDAL - swing, L.H., Includes: Ref. 45

1шт.

45

D30706

BUSHING

- pedal

2шт.

46

D47222

GUARD - swing pedal, R.H

1шт.

47

D47223

GUARD - swing pedal, L.H.

1шт.

47a

D47936

LINING

TRIM - pedal guard

2шт.

48

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

49

92-6

LOCK WASHER,3/8"

4шт.

50

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

4шт.

51

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

52

92-8

LOCK WASHER,1/2"

2шт.

53

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

2шт.
