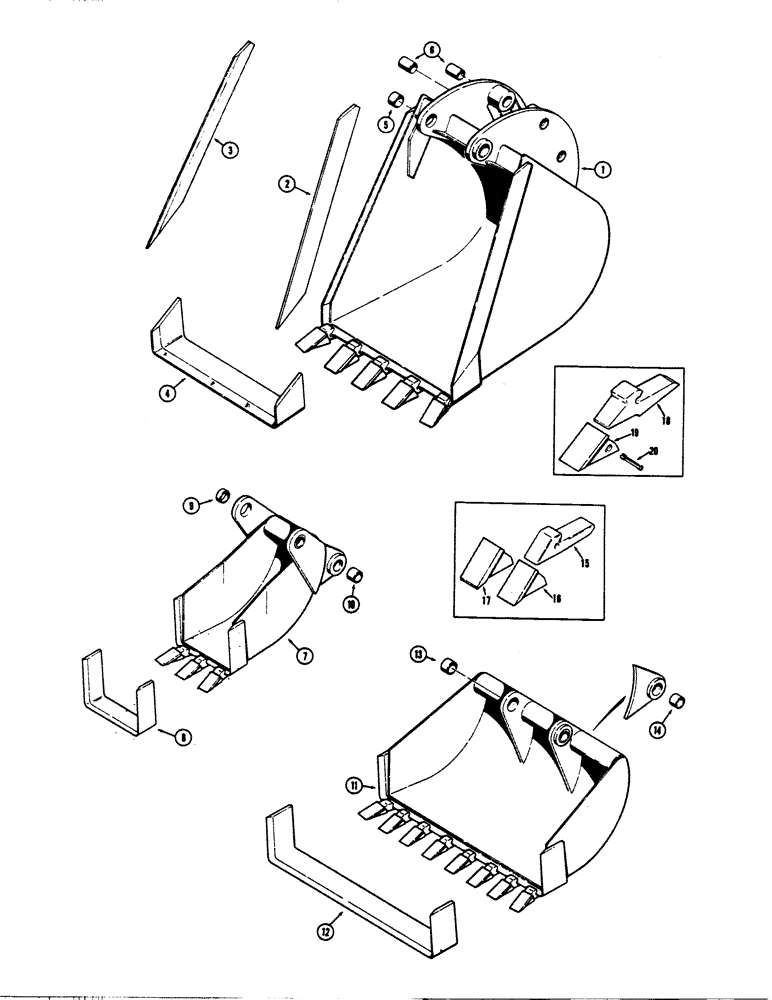

Запчасти Case 680CK (140) - BACKHOE BUCKETS (OPTIONAL TYPES), TRENCHING BUCKETS (MACHINERY ITEM) (84) - BOOMS, DIPPERS & BUCKETS

1

D41569

BUCKET - backhoe, trenching (24 inch), Includes: Ref. 2 - 6

1шт.

2

D41675

BLADE

- cutting, R.H. side

1шт.

3

D41674

BLADE - cutting, L.H. side

1шт.

4

D41673

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- bucket, bucket link pin holes

4шт.

1

D41570

BUCKET - backhoe, trenching (30 inch), Includes: Ref. 2 - 6

1шт.

2

D41675

BLADE

- cutting, R.H. side

1шт.

3

D41674

BLADE - cutting, L.H. side

1шт.

4

D41870

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- bucket link pin holes

4шт.

1

L43428

BUCKET - backhoe, trenching (36 inch), Includes: Ref. 2 - 6

1шт.

2

D41675

BLADE

- cutting, R.H. side

1шт.

3

D41674

BLADE - cutting, L.H. side

1шт.

4

L43412

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- bucket, bucket link pin holes

4шт.

7

D41547

BUCKET

- backhoe, bellhole (12 inch), Includes: Ref. 8 - 10

1шт.

8

D37490

KNIFE

BLADE - cutting, bellhole buckets (machinery item)

1шт.

9

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper arm, bellhole buckets (machinery item)

2шт.

10

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, bellhole buckets (machinery item)

2шт.

7

D41548

BUCKET

- backhoe, bellhole (16 inch), (machinery item), Includes: Ref. 8 - 10

1шт.

8

D37518

EDGE, CUTTING

BLADE - cutting, bellhole buckets (machinery item)

1шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm, bellhole buckets (machinery item)

2шт.

10

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, bellhole buckets (machinery item)

2шт.

7

D41549

BUCKET

- backhoe, bellhole (30 inch), (machinery item), Includes: Ref. 7 - 10

1шт.

8

D37515

EDGE

BLADE - cutting, bellhole buckets (machinery item)

1шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm, bellhole buckets (machinery item)

2шт.

10

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket link pin hole, bellhole buckets (machinery item)

2шт.

11

D41550

BUCKET

- backhoe, combination bellhole and graveyard (36 inch), machinery item, Includes: Ref. 12 - 14

1шт.

12

D37516

JUNCTION

BLADE - cutting, combination bellhole and graveyard bucket (machinery item)

1шт.

13

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm, combination bellhole and graveyard bucket (machinery item)

2шт.

14

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, combination bellhole and graveyard bucket (machinery item)

2шт.

15

D26368

SUPPORT

SHANK - tooth, bucket (standard on all buckets except D41569, D41570 and L43428)

1шт.

16

D27748

TOOTH

POINT - tooth (Standard), bucket (standard on all buckets except D41569, D41570 and L43428)

1шт.

17

D36720

TOOTH

POINT - tooth, service option (Heavy duty), bucket (standard on all buckets except D41569, D41570 and L43428)

1шт.

17

D44193

TOOTH

POINT - long tooth, service option (heavy duty rock), bucket (standard on all buckets except D41569, D41570 and L43428)

1шт.

L43266

TOOTH

ASSEMBLY - backhoe bucket, standard on D41569, D41570 and L43428 buckets, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket, standard on D41569, D41570 and L43428 buckets

1шт.

19

D39093

TOOTH

POINT - tooth, bucket, standard on D41569, D41570 and L43428 buckets

1шт.

20

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth, standard on D41569, D41570 and L43428 buckets

1шт.
