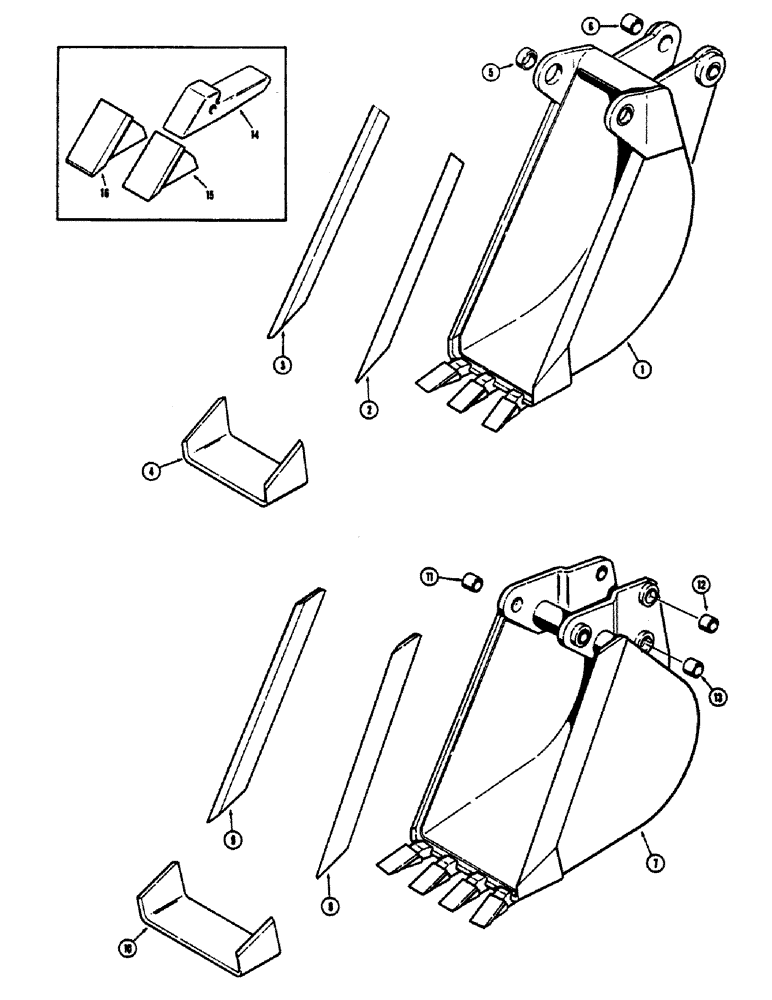

Запчасти Case 680CK (138) - BACKHOE BUCKETS (OPTIONAL TYPES), TRENCHING BUCKETS (MACHINERY ITEM) (84) - BOOMS, DIPPERS & BUCKETS

1

D37472

BUCKET - backhoe, trenching (12 inch), Includes: Ref. 2 - 6

1шт.

2

D29424

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

3

D29423

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

4

D37464

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

7

D37473

BUCKET

- backhoe, trenching (18 inch), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37642

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole (Used in lower hole only if bucket lug has boss)

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole (Used if bucket lug does not have boss)

2шт.

14

D26368

SUPPORT

SHANK - tooth, bucket (standard)

1шт.

15

D27748

TOOTH

POINT - tooth (Standard), bucket

1шт.

16

D36720

TOOTH

POINT - tooth, service option (Heavy duty), bucket (standard)

1шт.
