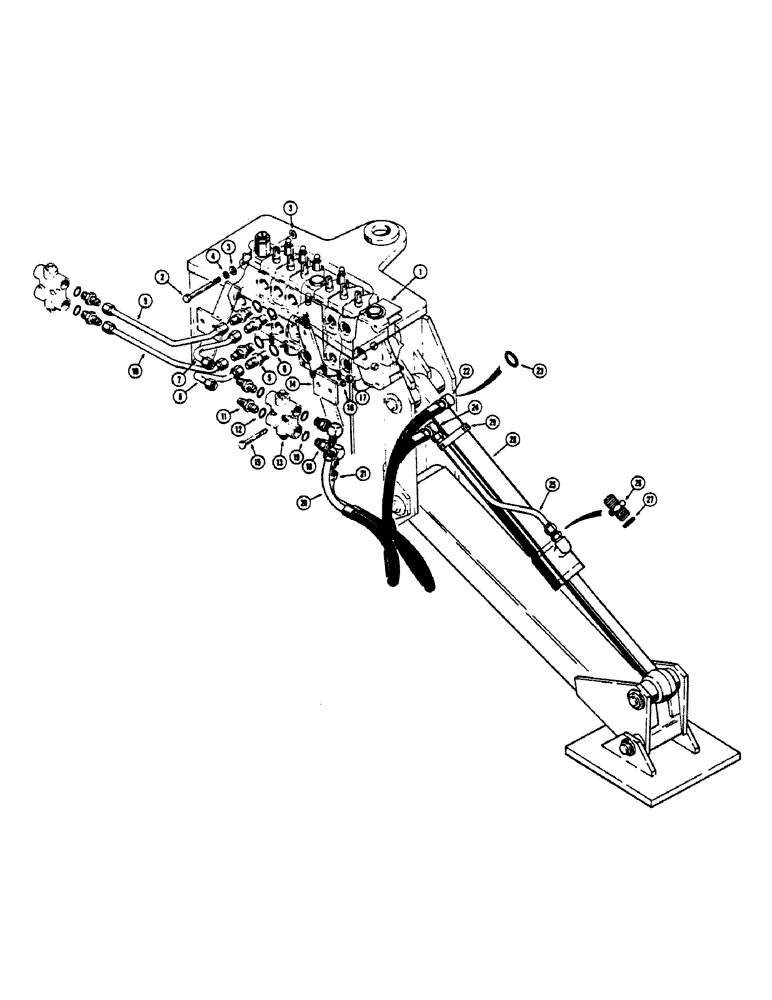

Запчасти Case 680CK (131A) - STABILIZER CYLINDER LOCKING VALVES AND RELATED PARTS (84) - BOOMS, DIPPERS & BUCKETS

1

L42904

VALVE

- hydraulic, backhoe control (Figure 188)

1шт.

2

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

3шт.

3

95-8

WASHER,1/2"

- standard wrot 1/2"

6шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 6

4шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

L48348

TUBE - control valve to R.H. stabilizer cylinder, closed end 0.5" OD

1шт.

8

L48346

TUBE - control valve to R.H. stabilizer cylinder, rod end

1шт.

9

L48352

TUBE - control valve to L.H. stabilizer cylinder, closed end 0.5" OD

1шт.

10

L48350

TUBE - control valve to L.H. stabilizer cylinder, rod end 0.5" OD

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight, Incl. Ref 12

4шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

L46353

VALVE - lock, stabilizer cylinder

2шт.

14

L47195

PLATE - mounting, lock valve (Welded to mounting frame)

2шт.

15

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16"-18 NC)

4шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 19 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

4шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

L48139

HOSE ASSY.

HOSE - lock valve to stabilizer cylinder (Closed end) 23.1" long

2шт.

21

L48138

HOSE ASSY.

HOSE - lock valve to stabilizer cylinder (Rod end) 23.1" long

2шт.

22

D23974

ELBOW

- adjustable, 90 degrees (Closed end), Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

D26361

FITTING

ELBOW - female, 90 degrees

2шт.

25

D43621

TUBE

- valve to stabilizer cylinder, rod end

2шт.

26

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer (See Figures 168 and 169A for proper cylinder)

2шт.

29

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

2шт.
