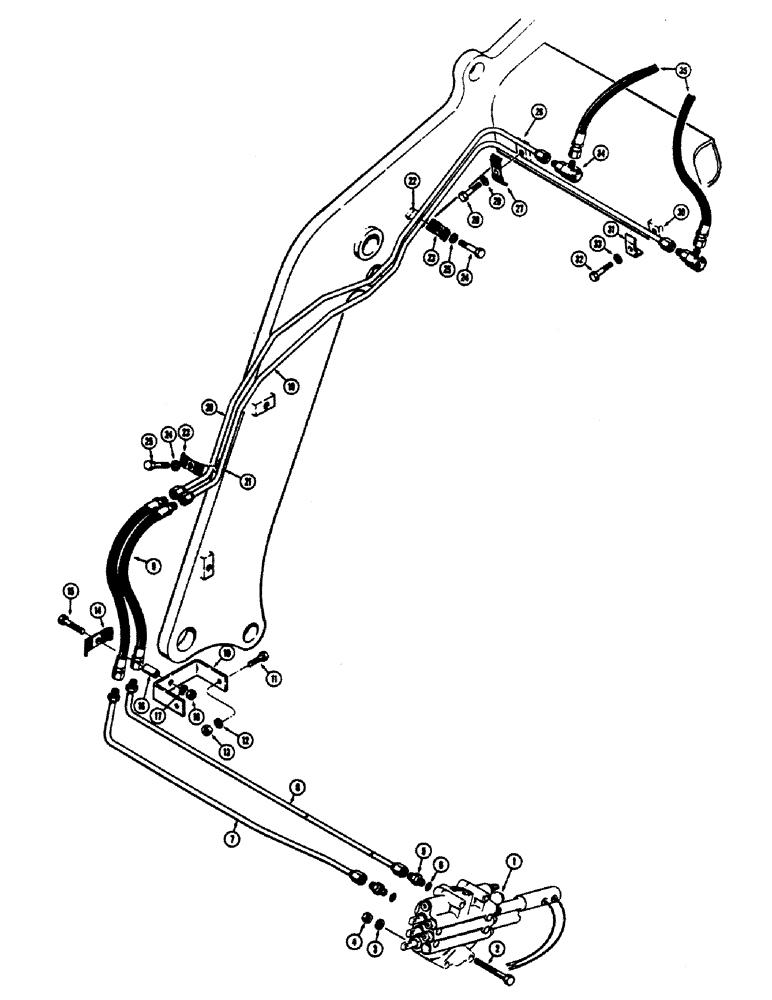

Запчасти Case 680CK (124) - DROTT 4-IN-1 BUCKET HYDRAULICS (82) - FRONT LOADER & BUCKET
№
Артикул
Название
Примечание
Количество
1
L15308
VALVE
- hydraulic, loader (3 spool) Figure 178
1шт.
2
13-672
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5
HHCS - 3/8"-16 NC x 4-1/2"
3шт.
3
92-6
LOCK WASHER,3/8"
3шт.
4
25-106
NUT,3/8"-16, G5
- hex. (3/8"-16 NC)
3шт.
5
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR - straight, male, Includes: Ref. 6
2шт.
6
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
7
L17092
TUBE - valve to clam cylinder, rod end (At valve)
1шт.
8
L17090
TUBE - valve to clam cylinder, closed end (At valve)
1шт.
9
L15317
HOSE ASSY.
HOSE - valve to clam cylinder (32" long)
2шт.
10
L17556
BRACKET - tube clamp
1шт.
11
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
12
92-5
LOCK WASHER,5/16"
2шт.
13
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16"-18 NC)
2шт.
14
R17319
CLAMP
- tube
1шт.
15
13-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
HHCS - 5/16"-18 NC x 1-3/4"
1шт.
16
D33552
BUSHING
SPACER - tube
1шт.
17
92-5
LOCK WASHER,5/16"
1шт.
18
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16"-18 NC)
1шт.
19
L15305
TUBE - valve to clam cylinder, rod end (At lift frame) 0.625" OD
1шт.
20
L15304
TUBE - valve to clam cylinder, closed end (At lift frame) 0.625" OD x 57.9, 6.5" L
1шт.
21
L15309
BLOCK - tapped (Rear)
1шт.
22
D39023
BLOCK
- tapped (Side)
1шт.
23
L15301
CLAMP
- tube
2шт.
24
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16"-18 NC x 1-1/4"
2шт.
25
92-5
LOCK WASHER,5/16"
2шт.
26
L15316
BLOCK - tapped
1шт.
27
L15315
CLAMP
- tube
1шт.
28
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16"-18 NC x 1-1/4"
1шт.
29
92-5
LOCK WASHER,5/16"
1шт.
30
L15314
BLOCK - tapped
1шт.
31
L15302
CLAMP - tube
1шт.
32
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
33
92-6
LOCK WASHER,3/8"
1шт.
34
L15313
ELBOW - swivel, 90 degrees
1шт.
35
L15321
HOSE ASSY.
HOSE - swivel to clam cylinder (28-1/2" long)
2шт.
Выбрано товаров: 35
