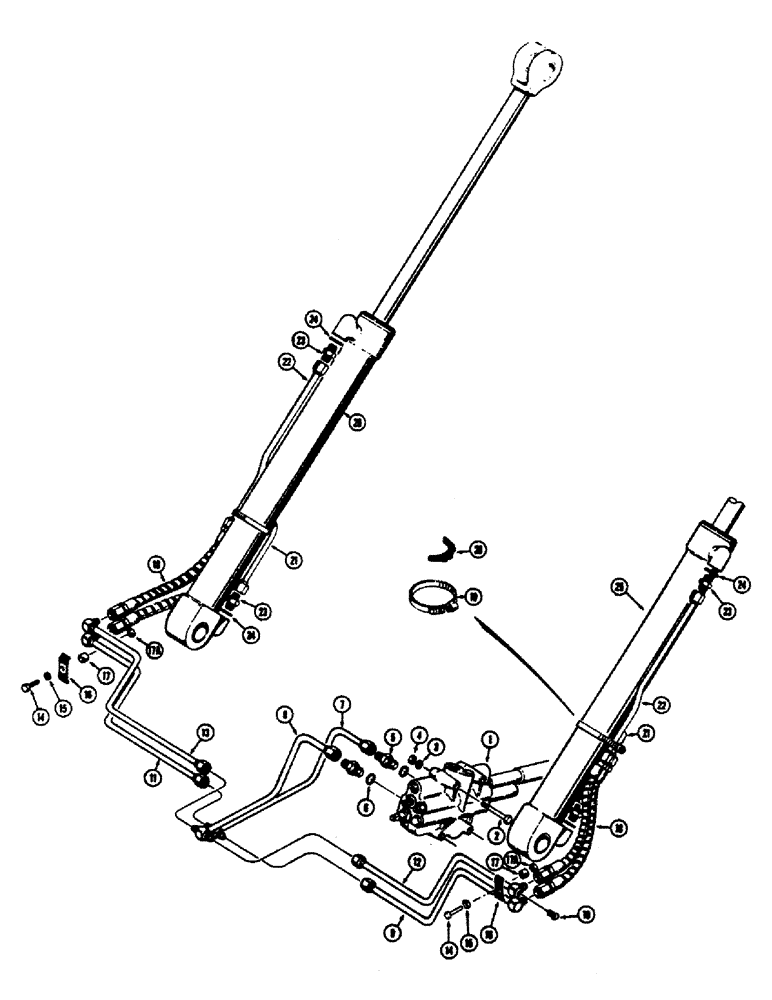

Запчасти Case 680CK (122) - LOADER HYDRAULICS, LIFT CYLINDER (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 178 for proper valve)

1шт.

2

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8"-16 NC x 4-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

3шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

L25853

TUBE - valve to lift cylinder, closed end (At valve) 0.75" OD x 14.6, 4.5" L

1шт.

8

L25890

TUBE - valve to lift cylinder, rod end (At valve) 0.75" OD x 11.4, 4.5" L

1шт.

9

L25887

TUBE - valve to R.H. lift cylinder, closed end 0.625" OD x 17.25, 3.75" L

1шт.

10

221-1661

PLUG

- pipe, hex. head

1шт.

11

L25893

TUBE - valve to L.H. lift cylinder, closed end 0.625" OD x 24.75, 3.75" L

1шт.

12

L25884

TUBE - valve to R.H. lift cylinder, rod end 0.625" OD x 17.25, 3.75" L

1шт.

13

L25895

TUBE - valve to L.H. lift cylinder, rod end 0.625" OD x 24.75, 3.75" L

1шт.

14

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16"-18 NC x 1-3/4"

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

R17319

CLAMP

- tube

2шт.

17

D33552

BUSHING

SPACER - clamp

2шт.

17a

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16"-18 NC)

2шт.

18

D34780

HOSE

- valve to lift cylinder (19" long)

4шт.

19

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

2шт.

20

D39502

SADDLE

- tube, rubber

2шт.

21

L26332

TUBE,0.625" OD x 9.5, 3.37" L

- valve to lift cylinder, closed end (At cylinder)

2шт.

22

L26308

TUBE,0.625" OD x 22.62" L

- valve to lift cylinder, rod end (At cylinder)

2шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 24

4шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. loader lift (See Figure 160 and 161A for proper cylinder)

1шт.

26

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. loader lift (See Figures 160 and 161A for proper cylinder)

1шт.
