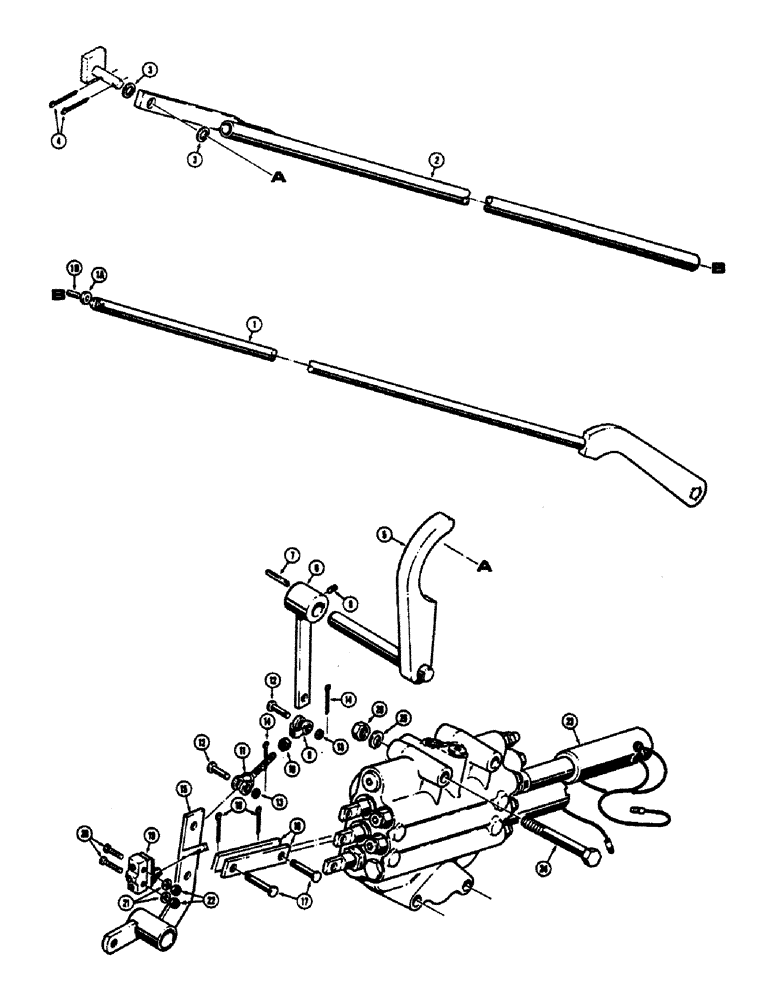

Запчасти Case 680CK (118) - LOADER ANTI-ROLLBACK PARTS (82) - FRONT LOADER & BUCKET

1

L26599

ROD - control, anti-rollback

1шт.

1a

L19090

ROLLER

- control rod

1шт.

1b

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

2

L26612

BRACKET

TUBE - support, control rod

1шт.

3

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

4

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

5

L26620

LEVER

- control, anti-rollback

1шт.

6

L26614

DRAG LINK

LINK - pivot, anti-rollback control

1шт.

7

A27001

KEY

- parallel, 3/16" x 1-3/8"

1шт.

8

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex. socket head (3/8"-16 NC x 3/8")

1шт.

9

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod (5/16")

1шт.

10

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16"-24 NF)

1шт.

11

L17663

YOKE

ROD AND YOKE - control

1шт.

12

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

2шт.

14

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

15

L18631

LEVER - tilt control

1шт.

16

L26340

LINK - tilt lever to valve spool

2шт.

17

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

19

A19513

SWITCH

- actuator, neutral start (See Figure 116 for related electrical components)

1шт.

20

171-68

SCREW - machine, flat head (#6-32 NC x 1-1/4")

2шт.

21

195-506

WASHER,#6

- plain () Zinc plated #6

2шт.

22

129-15

NUT,#6-32

2шт.

23

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 178 for proper valve)

1шт.

24

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8"-16 NC x 4-1/2"

3шт.

25

92-6

LOCK WASHER,3/8"

3шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

3шт.
