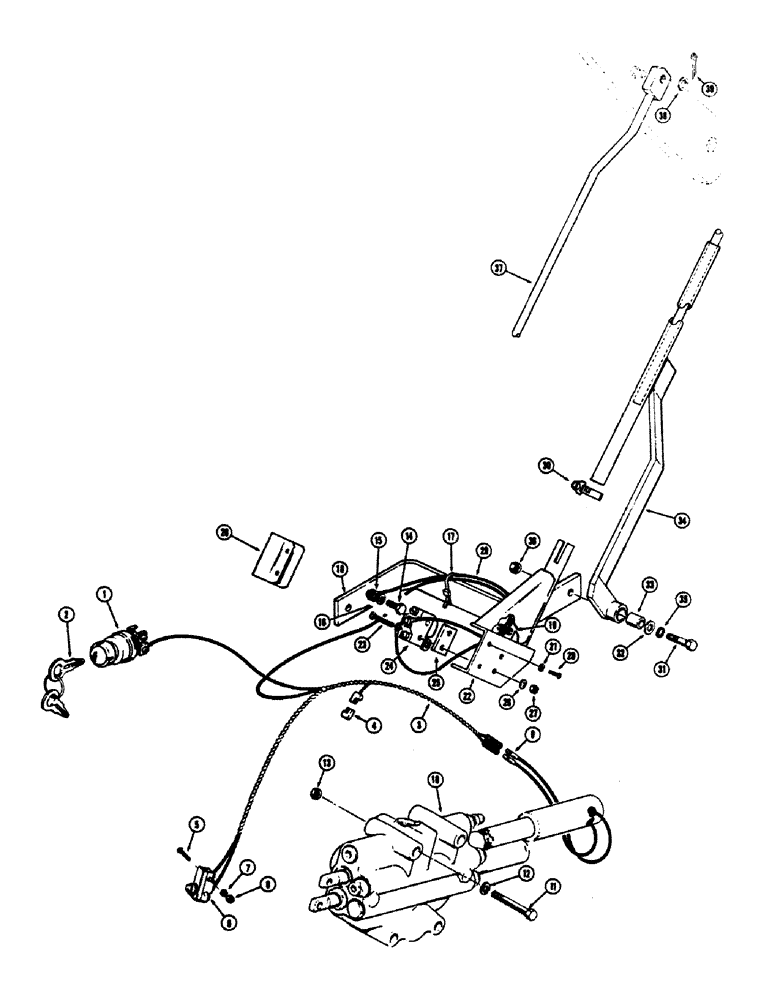

Запчасти Case 680CK (116) - LOADER RETURN TO DIG PARTS (82) - FRONT LOADER & BUCKET

L17820

SWITCH

AND KEY - electrical, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

A20346

KEY

- switch, ignition

1шт.

3

L13757

HARNESS

- wiring, return-to-dig

1шт.

4

L11760

DIODE

- switch protection

1шт.

5

173-267

RHMS - #6-32 NC x 1-1/4"

2шт.

6

A19513

SWITCH

- actuator, neutral start

1шт.

7

195-506

WASHER,#6

- plain () Zinc plated #6

2шт.

8

129-15

NUT,#6-32

2шт.

9

L11778

CONNECTOR, ELEC

TERMINAL - electrical, bullet type

2шт.

10

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 178 for proper valve))

1шт.

11

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8"-16 NC x 4-1/2"

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

3шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire to limit switch bracket

1шт.

18

L26619

BRACKET

- limit switch box mounting

1шт.

19

NLS

NO LONGER SERVICED

- limit switch box

1шт.

20

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8-32 NC x 1/4") Zinc plated

2шт.

21

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

22

D40884

BOX

- limit switch mounting

1шт.

23

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- machine, fillister head (#6-32 NC x 1-1/4") Zinc plated

2шт.

24

D40921

SWITCH

- limit, return-to-dig

1шт.

25

D40924

SHIM

SPACER - switch

1шт.

26

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

27

129-15

NUT,#6-32

2шт.

28

D40922

COVER

- limit switch

1шт.

29

L15241

WIRE - ground (When stock is exhausted, order L40568 wire for service)

1шт.

29

L40568

WIRE - ground

1шт.

30

G45175

CLAMP

- tube, worm screw type

1шт.

31

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8"-16 NC x 2-1/2"

1шт.

32

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

33

D40925

SPACER

SLEEVE - tube

1шт.

34

L15037

TUBE - rod support

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

1шт.

37

L13753

ROD - limit switch

1шт.

38

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

39

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.
