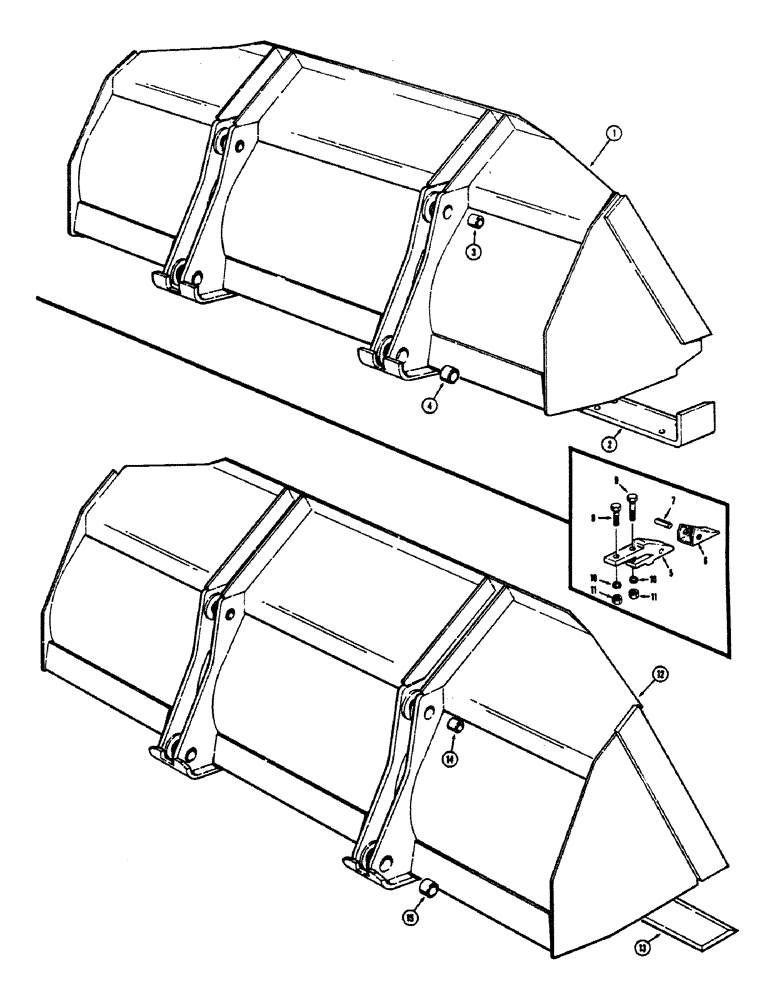

Запчасти Case 680CK (112) - LOADER BUCKETS (OPTIONAL TYPES), 1-1/4 CUBIC YARD LOADER BUCKET (MACHINERY ITEM) (82) - FRONT LOADER & BUCKET
№
Артикул
Название
Примечание
Количество
1
L13655
BUCKET - loader, 1-1/4" cu. yd. (84-3/8" wide), Includes: Ref. 2 - 4
1шт.
2
L13659
EDGE
CUTTING EDGE - bucket (84-3/8" wide)
1шт.
3
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- bucket ear, upper
4шт.
4
D33678
BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L
- bucket ear, lower
4шт.
A18412
TOOTH
ASSEMBLY - bucket (When stock is exhausted, order L16667 for service), (optional on L13655 bucket only), Includes: Ref. 5 - 7
8шт.
L16667
TOOTH
ASSEMBLY - bucket, (optional on L13655 bucket only), Includes: Ref. 5 - 7
8шт.
5
NSS
NOT SOLD SEPARAT
SHANK - tooth, bucket, (optional on L13655 bucket only)
1шт.
6
D39093
TOOTH
POINT - tooth, bucket, (optional on L13655 bucket only)
1шт.
7
D39094
BUCKET TOOTH KEY
FLEX PIN - point, bucket tooth, (optional on L13655 bucket only)
1шт.
8
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
(Used with A18412 tooth only), bucket, (optional on L13655 bucket only) Hex, 5/8"-11 x 2 1/2", G5
8шт.
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
(Used with L16667 tooth only) Hex, 5/8"-11 x 2 1/4", G5
8шт.
9
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
(Used with A18412 tooth only) Hex, 5/8"-11 x 3 1/4", G5
8шт.
13-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
(Used with L16667 tooth only) Hex, 5/8"-11 x 3", G5
8шт.
11
86625068
NUT,5/8"-11, G8
- hex. (5/8"-11 NC), bucket teeth, (optional on L13655 bucket only)
16шт.
12
L13775
BUCKET - loader, 1-3/4" cu. yd. (96" wide), 1-3/4 cubic yard loader (machinery item), Includes: Ref. 13 - 15
1шт.
13
L13774
EDGE
CUTTING EDGE - bucket (96" wide), 1-3/4 cubic yard loader (machinery item)
1шт.
14
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- bucket ear, upper, 1-3/4 cubic yard loader (machinery item)
4шт.
15
D33678
BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L
- bucket ear, lower, 1-3/4 cubic yard loader (machinery item)
4шт.
Выбрано товаров: 19
