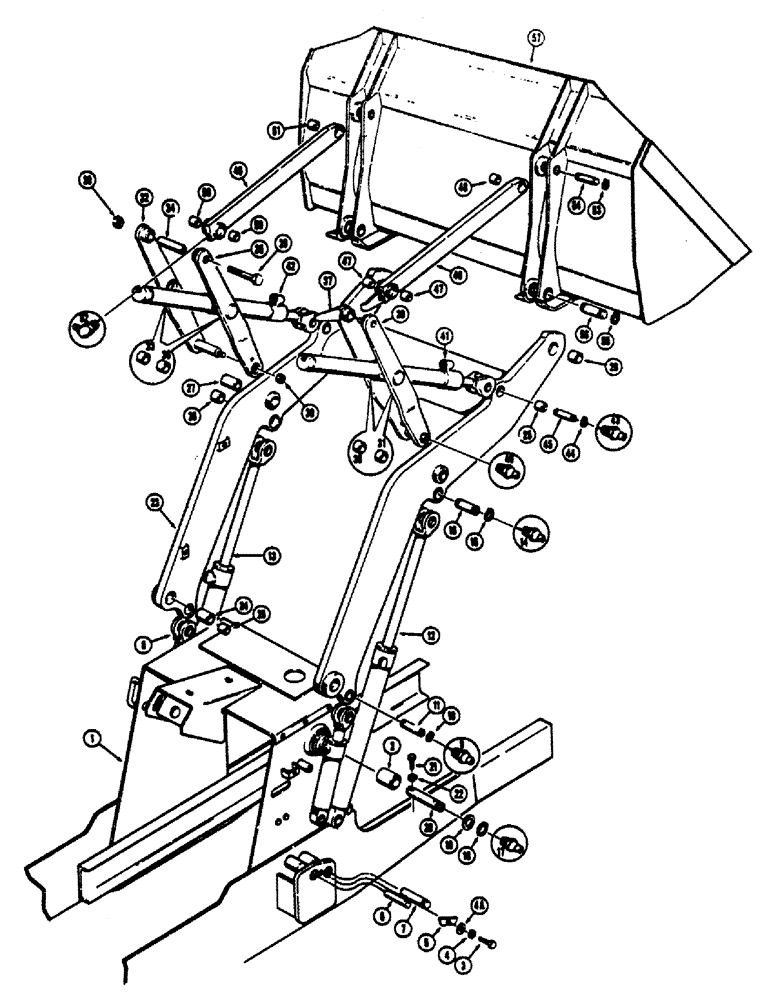

Запчасти Case 680CK (108) - LOADER LIFT FRAME AND RELATED PARTS (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - tractor (See Figure 98 for related parts), Includes: Ref. 2

1шт.

2

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- lift frame pivot bracket

2шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

4a

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

5

L42511

BLOCK

PLATE - pin retaining

2шт.

6

D34661

PIN

- hydra-leveling, Serial Range: cylinders-chassis

2шт.

7

D34660

PIN

- lift, Serial Range: cylinder-chassis

2шт.

8

REF

INSTRUCTION

CYLINDER - hydraulic, hydra-leveling (See Figure 164 and 165A for proper cylinder)

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

10

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

11

D34656

PIN,38.1mm OD x 101.6mm L

- hydra-leveling cylinder to lift frame

2шт.

12

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. loader lift (See Figure 160 and 161A for proper cylinder)

1шт.

13

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. loader lift (See Figure 160 and 161A for proper cylinder)

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

16

D34658

PIN,44.45mm OD x 101.6mm L

- lift cylinders to lift frame

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

18

D34664

RING

- pin retaining

2шт.

19

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special

2шт.

20

L26116

PIN

- lift frame pivot

2шт.

21

113-458

X

HHCS - 1/2"-13 NC x 4"

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

L26718

FRAME ASSEMBLY - loader lift, Includes: Ref. 24 - 28

1шт.

24

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- lift frame at chassis

2шт.

25

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- lift frame at hydra-leveling and tilt cylinders

4шт.

26

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- lift frame at lift cylinder

1шт.

27

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- lift frame at tilt linkage

2шт.

28

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- lift frame at bucket

2шт.

29

13-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

HHCS - 3/4"-10 NC x 61-1/2"

2шт.

30

L13698

LEVER ASSEMBLY - tilt, outer (R.H.), Includes: Ref. 31

1шт.

31

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- lever

1шт.

32

D34647

LINK

LEVER ASSEMBLY - tilt, outer (L.H.), Includes: Ref. 33

1шт.

33

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- lever

1шт.

34

D34653

PIN

- link spacer, upper

2шт.

35

L13971

LEVER ASSEMBLY - tilt, inner (L.H.), Includes: Ref. 36

1шт.

36

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- lever

1шт.

37

L26605

LEVER ASSEMBLY - tilt, inner (R.H.), Includes: Ref. 38

1шт.

38

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- lever

1шт.

39

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4"-10 NC)

4шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

41

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. loader tilt (See Figure 162 and 163A for proper cylinder)

1шт.

42

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. loader tilt (See Figure 162 and 163A for proper cylinder)

1шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

44

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

45

D34656

PIN,38.1mm OD x 101.6mm L

- tilt cylinder to lift frame

2шт.

46

D34651

LINK

ASSEMBLY - loader tilt, R.H., Includes: Ref. 47 and 48

1шт.

47

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- link, at tilt lever

2шт.

48

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- link, at bucket

1шт.

49

D34650

LINK

ASSEMBLY - loader tilt, L.H., Includes: Ref. 50 and 51

1шт.

50

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- link, at tilt lever

2шт.

51

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- link, at bucket

1шт.

52

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , LH link 90º, 1/8" NPT x .84" lg

1шт.

52

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT) R.H. link (Not shown)

1шт.

53

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

54

D34654

PIN

- tilt link to bucket (When stock is exhausted, order L47231 pin for service)

2шт.

54

L47231

PIN - tilt, Serial Range: link-bucket

2шт.

55

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

56

D34655

PIN,50.8mm OD x 111.13mm L

- lift frame to bucket (When stock is exhausted, order L47232 pin for service)

2шт.

56

L47232

PIN

- lift, Serial Range: frame-bucket

2шт.

57

REF

INSTRUCTION

BUCKET ASSEMBLY - loader (Figure 112)

1шт.
