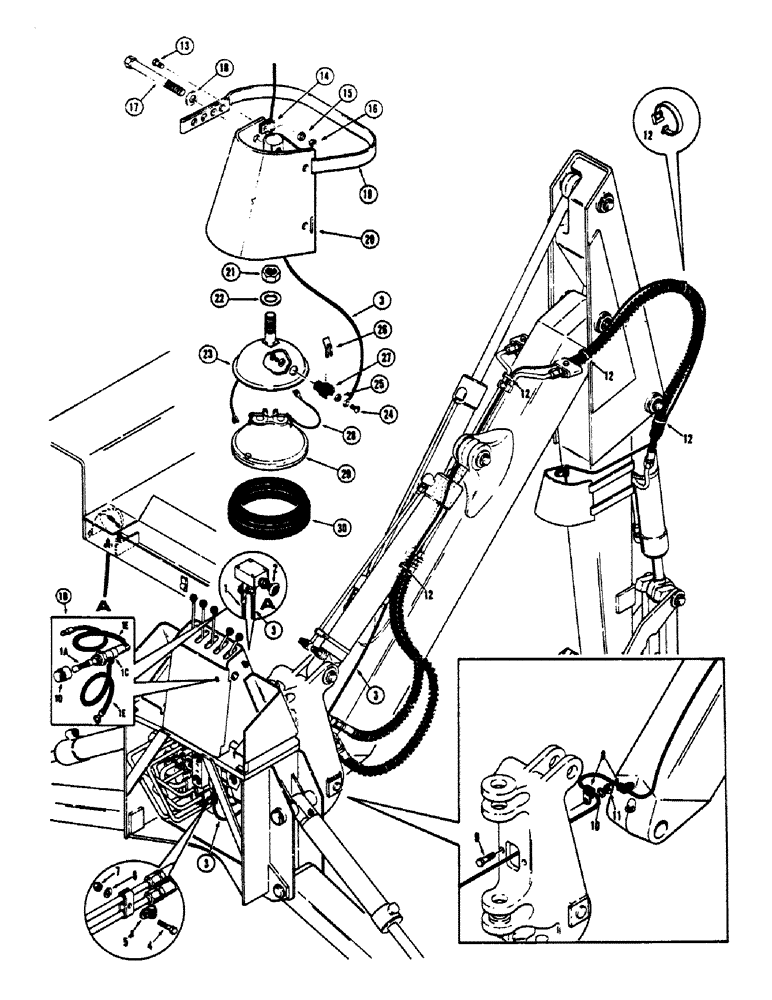

Запчасти Case 680CK (136) - DIPPER LIGHT (55) - ELECTRICAL SYSTEMS

1

L19638

WIRE - taillight harness to switch (53" long) Without fuse (When stock is exhausted, order L43742 wire assembly for service)

1шт.

1a

223-20

FUSE,20 Amp, Type SFE

- 20 amp

1шт.

1b

L43742

WIRE ASSY. - taillight harness to switch (With in line fuse), Includes: Ref. 1C - 1E

1шт.

A8006

NOZZLE HOLDER

HOLDER - fuse, Includes: Ref. 1C and 1D

1шт.

1c

NSS

NOT SOLD SEPARAT

BODY - holder, fuse

1шт.

1d

A10958

CAP

- holder, fuse

1шт.

1e

NSS

NOT SOLD SEPARAT

WIRE - taillight

2шт.

2

G13142

IGNITION SWITCH

SWITCH - dipper light

1шт.

3

D37808

WIRE - switch to dipper light (216" long)

1шт.

4

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16"-18 NC x 1-3/4"

1шт.

5

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at boom tube clamp

1шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

7

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16"-18 NC)

1шт.

8

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at swing tower and boom grease fitting

2шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, wire retaining

6шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

14

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at dipper light

1шт.

15

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

16

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8"-16 NC)

1шт.

17

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

D41171

BAND

STRAP - light mounting

2шт.

20

D41427

SHIELD

- dipper lamp

1шт.

21

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2"-13 NC)

1шт.

22

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

24

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8-32 NC x 1/4")

2шт.

25

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - lock, #8 (External tooth Shakeproof)

2шт.

26

10927

SPRING

- lamp

1шт.

27

B50293

TERMINAL CONNECTOR

- lamp

1шт.

28

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

29

D33182

LAMP

BULB - sealed beam

1шт.

30

D31441

RETAINER

- lamp

1шт.
