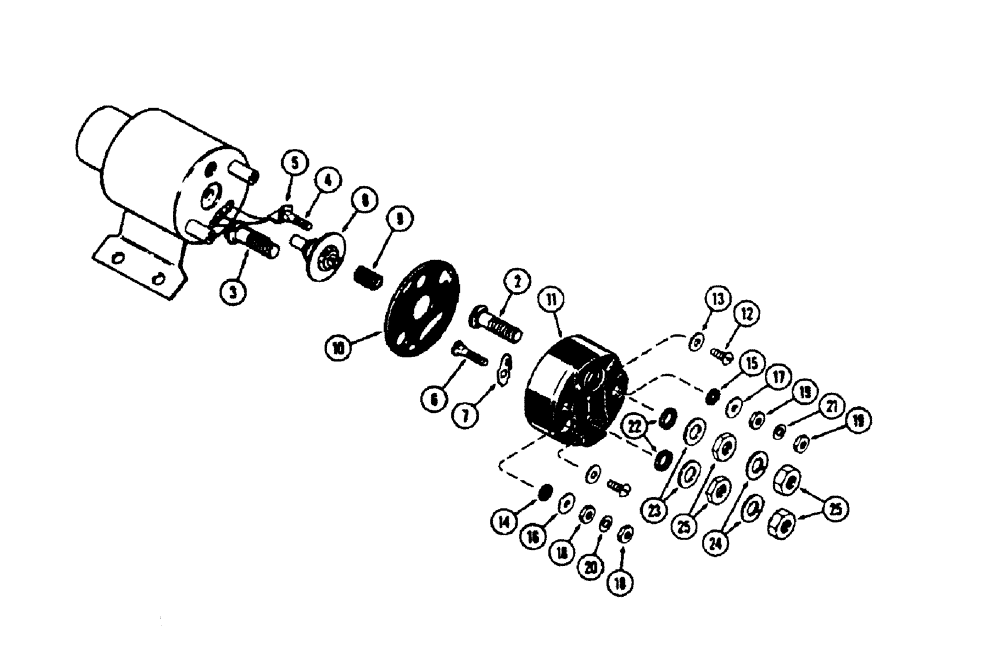

Запчасти Case 680CK (053C) - A40461 SOLENOID, (267) DIESEL ENGINE, A42326 SOLENOID (55) - ELECTRICAL SYSTEMS

A40461

IGNITION SWITCH

SOLENOID ASSY. - (Delco-Remy #1115510), Includes Ref 2 - 25

1шт.

2

A42087

STUD

- battery terminal

1шт.

3

A42089

STUD

- starter terminal

1шт.

4

A42091

STUD - resistor terminal, #8-32 thread

1шт.

5

A42088

CLIP - resistor terminal

1шт.

6

A42090

TERMINAL CONNECTOR

STUD - switch terminal, #10-32 thread

1шт.

7

A42060

HALF BLADE

CONTACT - switch terminal stud

1шт.

8

A40692

CONTACT

ASSY.

1шт.

9

A42059

SPRING

- contact return

1шт.

10

A42093

GASKET

- cover

1шт.

11

A42316

COVER

- solenoid contacts

1шт.

12

A42083

SCREW - cover

2шт.

13

D30018

WASHER - cover screw

2шт.

14

A42086

WASHER - insulation, #8 stud

1шт.

15

A42084

INSULATOR

WASHER - insulation, #10 stud

1шт.

16

A42082

WASHER - steel, #8 stud

1шт.

17

R13177

WASHER - steel, #10 stud

1шт.

18

129-16

NUT,#8-32

Terminal #8-32

2шт.

19

129-77

NUT,Sq, #10-32

- terminal, #10-32 hex.

2шт.

20

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Terminal stud #8

1шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Terminal stud #10

1шт.

22

A42085

BUSHING

WASHER - insulation, 3/8" studs

2шт.

23

R15013

WASHER

- steel, 3/8" studs

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal stud 3/8"

2шт.

25

87016560

JAM NUT,Jam, 3/8"-16, G5

Terminal studs Jam, 3/8"-16, G5

4шт.

A42326

SOLENOID

ASSY. - (Delco #1115518), Includes: Ref. 30 - 57

1шт.

30

NSS

NOT SOLD SEPARAT

CASE & COIL ASSY.

1шт.

31

A42090

TERMINAL CONNECTOR

TERMINAL - solenoid switch

1шт.

32

A42383

TERMINAL CONNECTOR

TERMINAL - solenoid motor

1шт.

33

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL - solenoid battery

1шт.

34

A42377

GASKET

- solenoid cover

1шт.

35

A42384

CLIP

- solenoid terminal

1шт.

36

A42386

INSULATOR

- solenoid cover

1шт.

37

A42385

CONTACT

- solenoid

1шт.

38

A42059

SPRING

- contact return

1шт.

39

A42391

INSULATOR

- solenoid cover cup

1шт.

40

A42388

COVER

- solenoid

1шт.

45

A42380

SCREW,#10 - 32 x 9/16"

- cover (#10 N.F. Nylock)

2шт.

46

A42378

WASHER

- (3/16 x 1/2 x 1/32")

2шт.

47

A42392

WASHER

- (3/16 x 21/64 x 3/32" rubber)

2шт.

48

129-37

NUT,#10-32

1шт.

49

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

50

R16177

WASHER

- (3/16 x 1/2 x 3/64")

2шт.

51

A42390

WASHER

- (3/16 x 1/2 x 1/16")

1шт.

52

A42392

WASHER

- (3/16 x 21/64 x 3/32" rubber)

1шт.

53

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

55

R15013

WASHER

- (25/64 x 11/16 x 1/16")

2шт.

56

A42379

WASHER

- (25/64 x 3/4 x 1/16")

6шт.

57

A42389

WASHER

- (3/8 x 17/32 x 3/32")

2шт.
