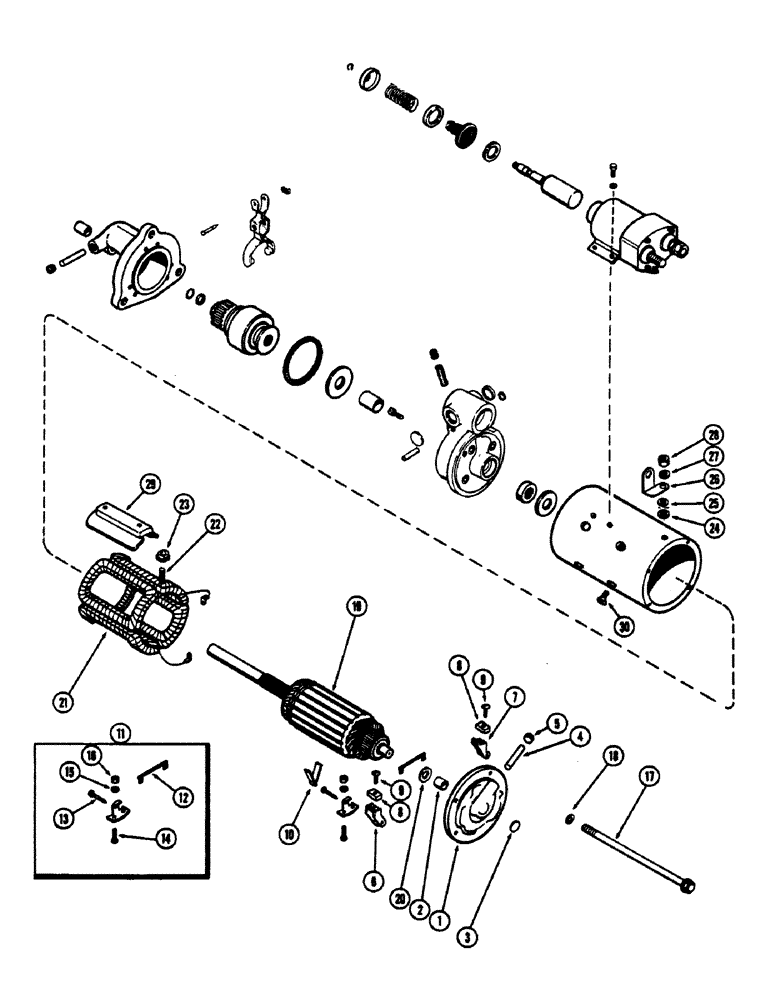

Запчасти Case 680CK (052) - STARTING MOTOR, (267) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A21281
STARTING MOTOR
MOTOR ASSY. - starter (Delco-Remy #1113634), Includes: Ref. 1 - 30
1шт.
1
R15019
FUNNEL
FRAME END ASSY. - commutator, Includes: Ref. 2 - 5
1шт.
2
R15020
BUSHING
BUSHING - commutator end
1шт.
3
R15021
PLUG
PLUG - expansion, commutator end
1шт.
4
R15023
WICK
WICK - oil
1шт.
5
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
6
A40217
HOLDER
HOLDER - ground, brush
2шт.
7
R21590
HOLDER
HOLDER - insulated, brush
2шт.
8
A20897
BRUSH, COMMUTATOR
BRUSH BRUSH - starter
4шт.
9
187-323
SCREW
SCREW - attaching, brush
4шт.
10
R15025
SPRING
SPRING - brush
2шт.
11
R15029
BRUSH
SUPPORT KIT - replacement, brush holder, Includes: Ref. 12 - 16
2шт.
12
R15030
ELECTRICAL WIRE
WIRE LEAD - ground, brush
1шт.
13
R15035
PIN
PIN - brush holder
1шт.
14
175-449
SCREW,Phil Truss Hd, #10 - 32 x 3/4"
SCREW - brush holder support
2шт.
15
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, , Support screw #10
2шт.
16
R15032
X
NUT - support screw
2шт.
17
A25373
BOLT
BOLT - thru, starter
2шт.
18
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , thru bolt 5/16"
2шт.
19
A40800
ARMATURE
ARMATURE ASSY. - starter
1шт.
20
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
WASHER - brake, commutator end
1шт.
21
R21557
COIL ASSY.
COIL ASSY. - field, Includes: Ref. 22
1шт.
22
R15017
STUD
STUD - terminal
1шт.
23
R15010
BUSHING
BUSHING - terminal stud insulation (In frame)
1шт.
24
A42010
WASHER
WASHER - insulated, terminal stud
1шт.
25
R15013
WASHER
WASHER - plain, terminal stud
1шт.
26
A25370
CONNECTOR, ELEC
CONNECTOR CONNECTOR - term., Serial Range: stud-solenoid
1шт.
27
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Terminal stud 3/8"
1шт.
28
R15014
NUT
NUT - stud
1шт.
29
R15115
SHOE
SHOE - pole
4шт.
30
74-610
SCREW,3/8" - 24 x 5/8"
SCREW - pole shoe
4шт.
ON LATER UNITS ANOTHER STARTER MOTOR WAS USED A59217
1шт.
A31281
STARTER ASSY., Includes: Ref. 35 - 65
1шт.
35
A25405
HOUSING
HOUSING ASSY. - lever, Includes: Ref. 36 - 40
1шт.
36
A40944
BUSHING
BUSHING - lever housing
1шт.
37
A41417
WICK
WICK - oil, lever housing
1шт.
38
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
39
A42009
SPARE PART PLUG - expansion, lever housing, 1/2" dia.
2шт.
40
A42013
PLUG
PLUG - expansion, lever housing, 1-3/16" dia.
2шт.
41
A25407
OIL SEAL
SEAL - oil, lever housing
1шт.
42
A42202
WASHER
WASHER - spacer, lever housing & armature
1шт.
43
113-111
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
BOLT, , Attaching, lever & drive housing Hex, 5/16"-18 x 2 1/2", G5
4шт.
44
R15043
WASHER
WASHER - brake, lever housing & drive
1шт.
45
A25338
DRIVE
DRIVE ASSY. - Bendix
1шт.
45
87421542
REMAN-STARTER DRIVE
Drive Assy, Starter
1шт.
45
87421543
CORE-STARTER
Return Part Number
1шт.
46
R15049
COLLAR
COLLAR - pinion stop
1шт.
47
R15048
RING
RING - snap, pinion stop retainer
1шт.
48
A25347
SPARE PART HOUSING ASSY. - drive end, Includes: Ref. 49 - 51
1шт.
49
A40868
BUSHING
BUSHING - drive housing
1шт.
50
R15023
WICK
WICK - oil, drive housing
1шт.
51
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
52
A41508
GASKET
GASKET - drive housing to lever housing
1шт.
53
A25398
LEVER
LEVER - shift, starter
1шт.
54
A25402
STUD
STUD - lever, pivot
1шт.
55
A25400
PIN
PIN -, Serial Range: lever-plunger
1шт.
56
A25406
OIL SEAL
RING - lever pin retaining
1шт.
57
A40461
IGNITION SWITCH
SWITCH ASSY. - solenoid, (Repairs, Figure 53C)
1шт.
58
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
SCREW - attaching, switch
4шт.
59
A25394
PLUNGER
PLUNGER - switch, starter
1шт.
60
A42008
WASHER
WASHER - spring limit
1шт.
61
A42308
BOOT
BOOT - dust, switch
1шт.
62
R21572
RETAINER
RETAINER - plunger return spring, inner
1шт.
63
A41242
SPRING
SPRING - return, plunger
1шт.
64
R21571
RETAINER
RETAINER - plunger return spring, outer
1шт.
65
G46146
SNAP RING,#37, Ext
Ring, Snap, , return spring retaining #37, Ext
1шт.
Выбрано товаров: 66
