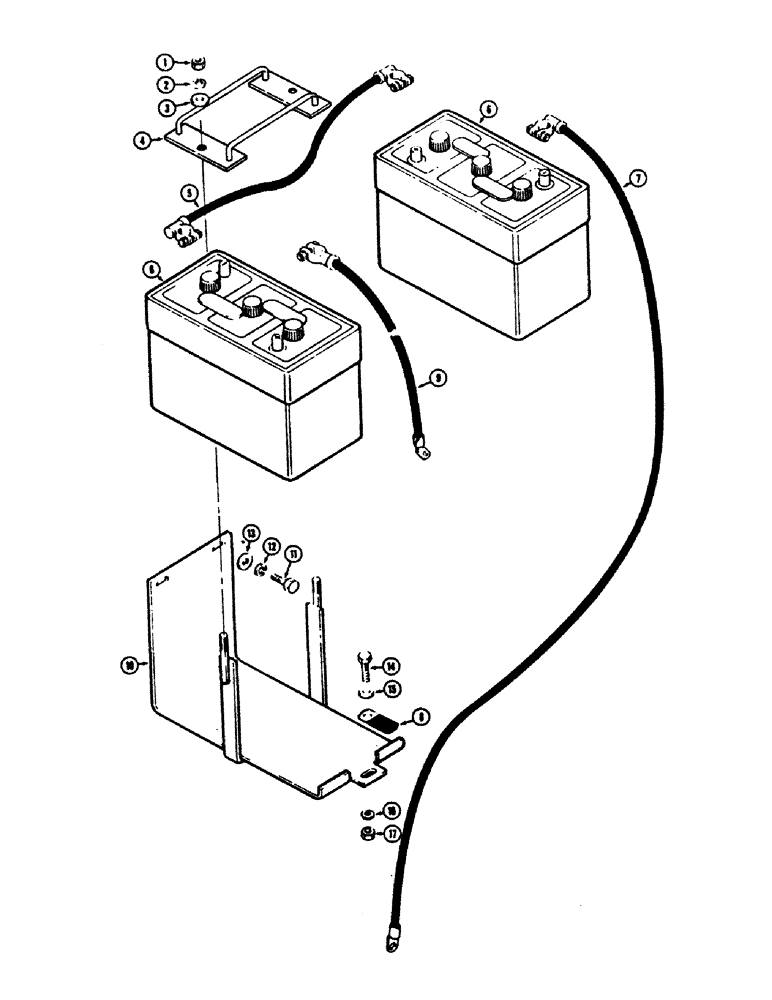

Запчасти Case 680CK (042) - BATTERIES AND CABLES (55) - ELECTRICAL SYSTEMS

1

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

195-22

WASHER

- plain (3/8")

4шт.

4

L15283

FUNNEL

FRAME - battery holddown

2шт.

5

L17227

CABLE - battery, jumper

1шт.

6

A8325

BATTERY - electrical, 6 volt

2шт.

7

L17229

CABLE - battery, ground

1шт.

8

A22880

CLIP

CLAMP - ground cable

1шт.

9

L17228

CABLE - battery, to starter solenoid

1шт.

10

L11059

BATTERY TRAY

TRAY - battery

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8"-16 NC)

2шт.
