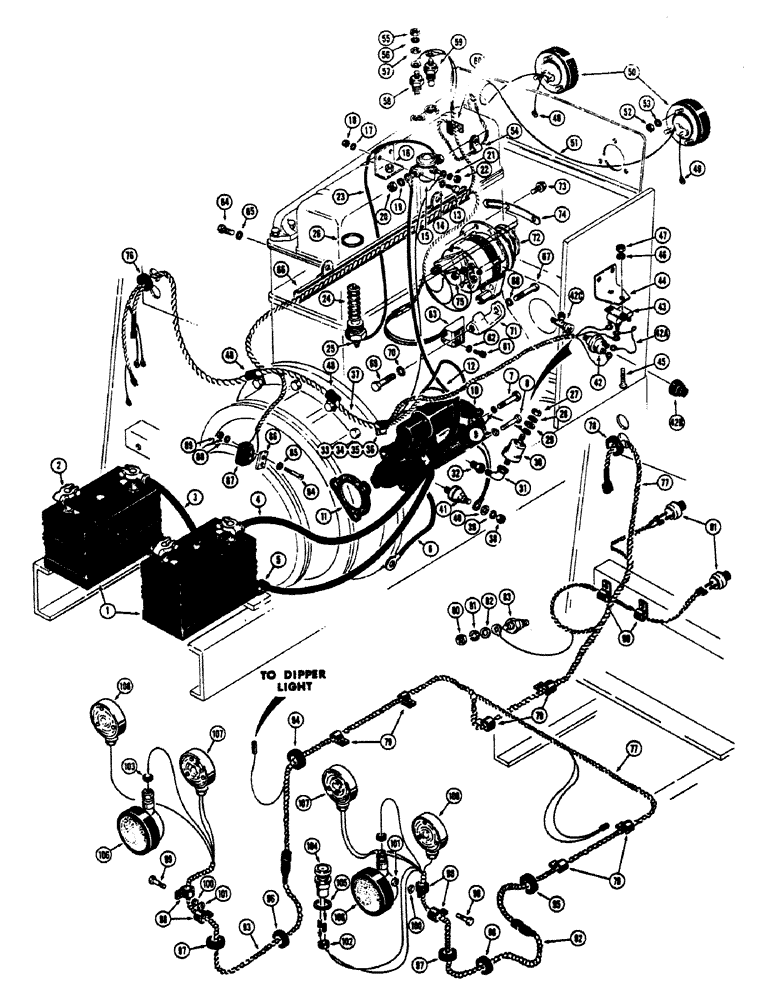

Запчасти Case 680CK (038) - ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

1

A8325

SPARE PART BATTERY - dry type, 6 volt

2шт.

2

L17227

SPARE PART CABLE - jumper (19" long)

1шт.

3

L17229

SPARE PART CABLE - battery, negative terminal to starter ground (49" long)

1шт.

4

L17228

SPARE PART CABLE - battery, positive terminal to solenoid (42" long)

1шт.

5

A22880

CLIP

CLAMP - cable

1шт.

6

L26443

SPARE PART CABLE - ground, starter to frame (26" long)

1шт.

7

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 2 3/4", G5

1шт.

8

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - special

2шт.

9

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

10

A21281

STARTING MOTOR

STARTER - engine (Figure 52)

1шт.

11

A27933

GASKET

GASKET - starter

1шт.

12

A21483

CABLE

CABLE - starter to solenoid (20" long)

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

14

195-518

WASHER,1/4", SAE

WASHER - plain (1/4") Zinc plated

2шт.

15

A57069

SOLENOID

SOLENOID - manifold heater, 12 volt

1шт.

16

L11520

SPARE PART BRACKET - solenoid mounting

1шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

2шт.

19

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

20

25-115

NUT,5/16"-24, G5

NUT - hex (5/16"-24 NF)

2шт.

21

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

22

129-27

NUT,Hex, #10 - 32

NUT - hex. ( NF) #10-32

1шт.

23

L11368

CABLE

CABLE - solenoid to heater (20" long)

1шт.

24

A37775

HEATER

HEATER - manifold, Includes: Ref. 25

1шт.

25

129-503

NUT,1/4"-20, Brass

NUT, 1/4"-20, Brass

1шт.

26

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

27

129-37

NUT,#10-32

NUT, #10-32

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

29

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

1шт.

30

A35031

SENDER UNIT

SENDER SENDING UNIT - engine oil pressure gauge

1шт.

31

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

ELBOW - street, 90 degrees (Galvanized)

1шт.

32

221-1052

PLUG

BUSHING - hex., reducing (3/8" x 1/8")

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

35

195-25

WASHER,3/8"

WASHER - plain () 3/8"

1шт.

36

A22880

CLIP

CLIP - harness

1шт.

37

L15359

SPARE PART HARNESS - main wiring, front

1шт.

38

129-37

NUT,#10-32

NUT, #10-32

1шт.

39

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

40

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

1шт.

41

A13794

TRANSMITTER

SENDING UNIT - oil pressure indicator light

1шт.

42

D28798

SWITCH

SWITCH - pressure, Includes: Ref. 142A

1шт.

42a

D28797

ELECTRICAL WIRE

WIRE WIRE - switch

1шт.

42b

L13821

BOOT

BOOT - protective, switch

1шт.

42c

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

TEE - flex coupling, pressure switch and oil supply to engine block

1шт.

43

L11343

BREAKER

CIRCUIT BREAKER - electrical, 60 amp.

1шт.

44

L26316

BRACKET - mounting, circuit breaker

1шт.

45

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

RHMS - #8-32 NC x 3/8" (Zinc plated)

2шт.

46

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

47

129-16

NUT,#8-32

NUT, #8-32

2шт.

48

A22880

CLIP

CLIP - harness at flywheel housing

2шт.

49

A15941

ELECTRICAL WIRE

WIRE WIRE - ground, headlight

2шт.

50

D30243

LAMP

HEADLIGHT ASSEMBLY - 12 volt (Figure 44)

2шт.

51

L11352

ELECTRICAL WIRE

WIRE WIRE - headlight connecting

1шт.

TWO 12 VOLT BATTERIES USED WITH OPEN CHAMBER ENGINE IS A58559

1шт.

52

129-7

NUT,Hex, #10 - 24

NUT - hex. ( NC) #10-24

6шт.

53

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6шт.

54

A7922

CLIP

CLIP - harness, at radiator mount

1шт.

55

129-16

NUT,#8-32

NUT, #8-32

2шт.

56

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

57

195-509

WASHER,3/16"

WASHER - plain (#8) Zinc plated

2шт.

58

L11350

SENDER UNIT

SENDING UNIT - water temperature indicator light

1шт.

59

A21462

SENDER UNIT

SENDER SENDING UNIT - water temperature gauge

1шт.

60

A22880

CLIP

CLIP - harness, at water manifold

1шт.

61

165-20

HEX SOC SCREW,#10 - 24 x 3/8"

CAP SCREW - hex. socket head (#10-24 NC x 3/8")

3шт.

62

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

63

L11351

REGULATOR

SPARE PART REGULATOR - voltage

1шт.

64

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

65

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

66

A7532

SPARE PART CONDUIT - wire

1шт.

67

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/4", G5

1шт.

68

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

69

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

BOLT, Hex, 3/4"-10 x 2 3/4", G5

1шт.

70

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

71

A34704

BRACKET

BRACKET - alternator mounting

1шт.

72

A41340

ALTERNATOR

ALTERNATOR - electrical, 55 amp. (Figure 50)

1шт.

72

104022A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 55 Amp Alternator

1шт.

72

104022A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 55 Amp Alternator

1шт.

73

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

SCREW AND LOCKWASHER - 5/16"-18 NC x 3/4"

1шт.

74

A34705

ADJUSTER

STRAP - alternator adjusting

1шт.

75

129-17

NUT,Hex, #10 - 24

NUT - hex., NC (Zinc plated) #10-24

3шт.

76

L17604

GROMMET

GROMMET - rubber, at fire wall

1шт.

77

L26394

SPARE PART HARNESS - main wiring, rear

1шт.

78

L17604

GROMMET

GROMMET - rubber, at fire wall

1шт.

79

A22880

CLIP

CLIP - harness, gear shift cover and differential cover plate

6шт.

80

129-37

NUT,#10-32

NUT, #10-32

1шт.

81

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

82

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

1шт.

83

A13795

SENDER UNIT

SENDER SENDING UNIT - converter temperature gauge

1шт.

84

173-69

RHMS - #6-32 NC x 1-1/2"

2шт.

85

195-6

WASHER,#6

WASHER - plain () #6

2шт.

86

L11524

SPARE PART SPACER - neutral starting switch

1шт.

87

L11349

SWITCH

SWITCH - neutral starting

1шт.

SWITCH IS LEVER TYPE.ROLLER TYPE IS PART L54683

1шт.

88

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

89

129-5

NUT,#6-32

NUT, #6-32

2шт.

90

A22880

CLIP

CLIP - harness, at brake support

2шт.

91

A12491

SWITCH

SWITCH - brake, stop light

2шт.

92

L16429

SPARE PART HARNESS - rear lights, R.H.

1шт.

93

L26381

SPARE PART HARNESS - rear lights, L.H.

1шт.

94

R10707

SPARE PART GROMMET - rear harness, at tool box (L.H.)

1шт.

95

F5450

GROMMET

GROMMET - rear harness, at tool box (R.H.)

1шт.

96

L17603

GROMMET

GROMMET - rear harness, at fender

2шт.

97

49562

GROMMET,11/16" ID x 1" Groove Dia

GROMMET - rubber, at fender

2шт.

98

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP - harness to light bracket

4шт.

99

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

100

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

101

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

102

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

GROMMET - rubber, at light bracket

1шт.

103

A23870

GROMMET

GROMMET - rubber, at light bracket

2шт.

104

L11344

WARNING LIGHT

LIGHT - engine warning (Parts list Figure 44)

1шт.

105

L11345

GASKET

GASKET - light, engine warning

1шт.

106

L19663

LIGHT

REAR LIGHT ASSEMBLY - 12 volt (Figure 44)

2шт.

107

L26301

SPARE PART STOP AND TAILLIGHT - volt (Figure 44)

2шт.

108

L26302

LIGHT

FLASH AND DIRECTIONAL LIGHT - 12 volt (Figure 44)

2шт.
