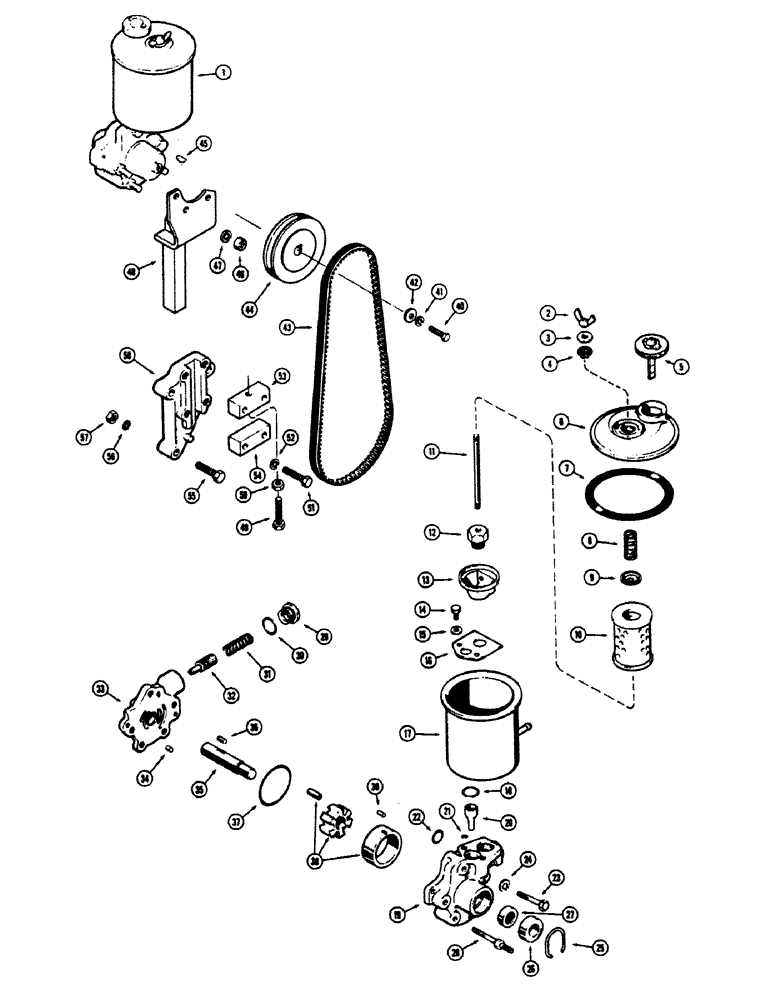

Запчасти Case 680CK (094) - L15032 POWER STEERING PUMP (41) - STEERING

1

L15032

PUMP

ASSEMBLY - power steering, Includes: Ref. 2 - 39

1шт.

2

129-419

WING NUT,5/16"-18

NUT - wing (5/16"-24 NF)

1шт.

3

A30831

WASHER

- plain (3/8")

1шт.

4

A30830

GASKET

- cover stud

1шт.

5

A24137

GAUGE ASSY.

CAP AND GAUGE ASSEMBLY - filler

1шт.

A24136

COVER AND GASKET ASSEMBLY - reservoir, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - reservoir

1шт.

7

A24138

GASKET

- cover

1шт.

8

A40000

SPRING

- element

1шт.

9

A22714

SEAT

- element

1шт.

10

A18061

FILTER, ELEMENT

ELEMENT - oil filter

1шт.

11

A40001

DOWEL

STUD - cover retaining

1шт.

12

A20523

STUD

ADAPTER - stud

1шт.

13

A40268

SUPPORT - element

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

A18060

PLATE - reinforcement

1шт.

17

A40003

TANK

RESERVOIR - oil

1шт.

18

A11027

GASKET

SEAL - "O" ring

2шт.

19

A20517

BODY ASSEMBLY - pump, Includes: Ref. 20

1шт.

20

A20526

VENTURI

1шт.

21

A11026

GASKET

SEAL - "O" ring, body

2шт.

22

A20514

O-RING

SEAL - "O" ring, bypass port

1шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

A20524

RING, SNAP

RING - snap, bearing retaining

1шт.

26

A30835

BEARING

- pump shaft

1шт.

27

A30838

OIL SEAL

- oil

1шт.

28

A20527

STUD - body

3шт.

29

A20512

CAP - valve

1шт.

30

A30837

O-RING

SEAL - "O" ring, valve cap

1шт.

31

L30895

SPRING

- valve

1шт.

32

L30960

VALVE - pressure relief

1шт.

33

L30897

COVER ASSY

COVER ASSEMBLY - pump

1шт.

34

A30836

DOWEL

PIN - cover locating

2шт.

35

A20510

SHAFT

- pump

1шт.

36

A30839

AXLE PIN

KEY -, Serial Range: impeller-shaft

1шт.

37

A20513

O-RING

SEAL - "O" ring, Serial Range: cover-body

1шт.

38

L30898

PACKAGE

KIT - impeller (Includes 1 cam, 6 rollers and 1 carrier)

1шт.

39

A20528

PIN

- impeller cam

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

41

92-5

LOCK WASHER,5/16"

1шт.

42

A34092

WASHER

- plain, special

1шт.

43

L11111

BELT,55.00" L

Power steering 55.00" L

1шт.

44

L11577

PULLEY

- pump

1шт.

45

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

46

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8"-24 NF)

3шт.

47

92-6

LOCK WASHER,3/8"

3шт.

48

L11575

BRACKET

- pump mounting, at pump

1шт.

49

113-106

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5, Full Thd

Hex, 5/16"-18 x 2-1/2", G5, Full Thd

1шт.

50

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., lock (5/16"-18 NC)

1шт.

51

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

52

92-6

LOCK WASHER,3/8"

4шт.

53

L13426

STRAP - mounting, upper (Tapped)

1шт.

54

L13427

STRAP

- mounting, lower (Plain)

1шт.

55

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

56

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

57

25-1012

NUT,3/4"-10, G5

4шт.

58

A34532

BRACKET - pump mountin, at engine

1шт.
