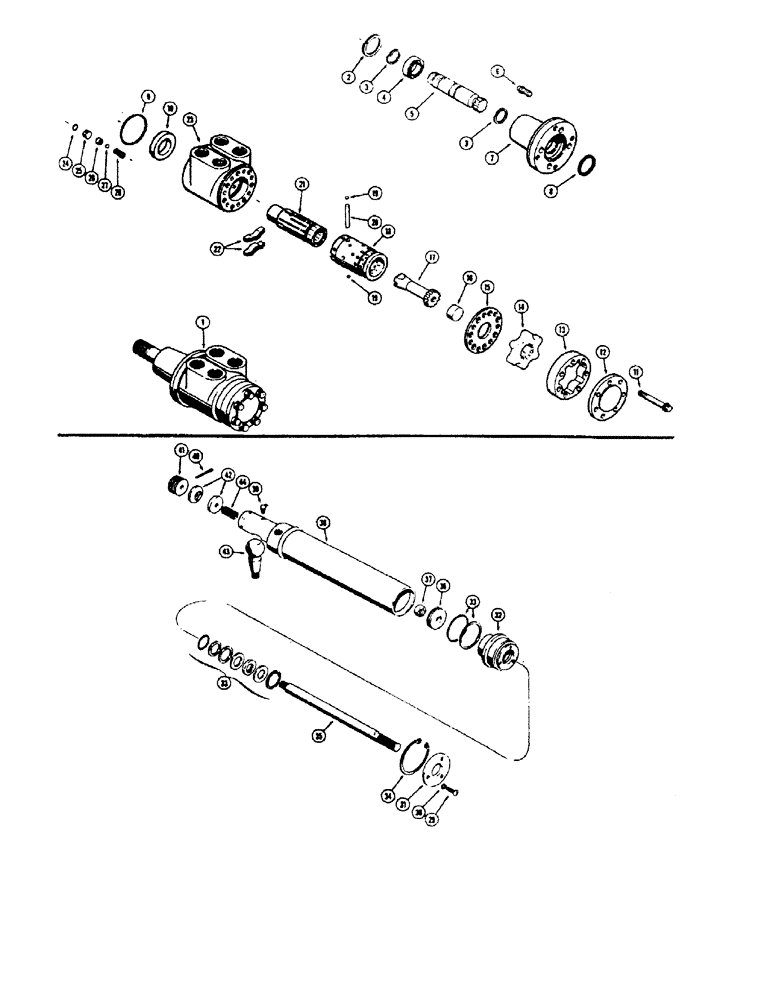

Запчасти Case 680CK (092) - L13405 MANUAL STEERING PUMP, A55158 STEERING CYLINDER (41) - STEERING

1

L13405

PUMP, HYDRAULIC

PUMP ASSEMBLY - manual steering, Includes: Ref. 2 - 28

1шт.

2

L30882

SNAP RING,#137, 1.461", Int, Spiral

RETAINER - bearing, outer

1шт.

3

F53335

RING, SNAP

RETAINER - bearing, inner

2шт.

4

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- control column

1шт.

5

L30880

SHAFT

- control

1шт.

6

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - ferry cap (5/16"-18 NC x 5/8")

4шт.

7

L30879

STEERING COLUMN

COLUMN - control

1шт.

8

A72029

RING

QUAD RING - control column

1шт.

9

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - "O" ring, bushing

1шт.

10

L30883

BUSHING

- cap locating

1шт.

11

166-530

SCREW - ferry cap (5/16"-24 NF x 2-1/4")

7шт.

12

A72024

CAP

- end

1шт.

L30874

GEAR WHEEL

GEAR SET - control, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

RING - gear

1шт.

14

NSS

NOT SOLD SEPARAT

START - gear

1шт.

15

A72026

PLATE

- spacer

1шт.

16

L30877

SPACER

- control

1шт.

17

L30878

DRIVE SHAFT

DRIVE - control end

1шт.

L30884

CONTROL

ASSEMBLY - pump, Includes: Ref. 18 - 28

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

19

L30894

PIN

DISC - centering pin

2шт.

20

L30888

PIN

- centering

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

22

L30889

SPRING

- centering

6шт.

23

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

24

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - plug, 7/16 x 5/16 x 1/16 in

1шт.

25

L30892

PLUG

- seal, housing

1шт.

26

L30891

SEAT

- check

1шт.

27

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

28

L30890

VALVE SPRING

SPRING - check

1шт.

A55158

CYLINDER BLOCK

CYLINDER - steering, 1-3/4" I.D. x 9" stroke, Includes: Ref. 29 - 44

1шт.

29

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

RHMS - #10-24 NC x 1/2"

3шт.

30

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

31

A35887

PLATE ASSY.

PLATE - end

1шт.

32

A24973

GLAND

ASSEMBLY - complete

1шт.

33

A36396

SEAL KIT

SEAL KIT - gland

1шт.

34

A35885

RING

- snap, gland retaining

1шт.

35

A55955

ROD

- piston

1шт.

36

A56226

PISTON ASSY.

PISTON AND RING ASSEMBLY - cylinder

1шт.

37

230-4616

LOCK NUT,3/8"-24, GA

NUT - hex., lock (3/8"-24 NF)

1шт.

38

NSS

NOT SOLD SEPARAT

TUBE WELDMENT - cylinder

1шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

40

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

41

A35890

PLUG

- adjusting

1шт.

42

A35889

SEAT

- ball stud

2шт.

43

A35870

STUD

- ball joint

1шт.

44

A35888

VALVE SPRING

SPRING - tension

1шт.
