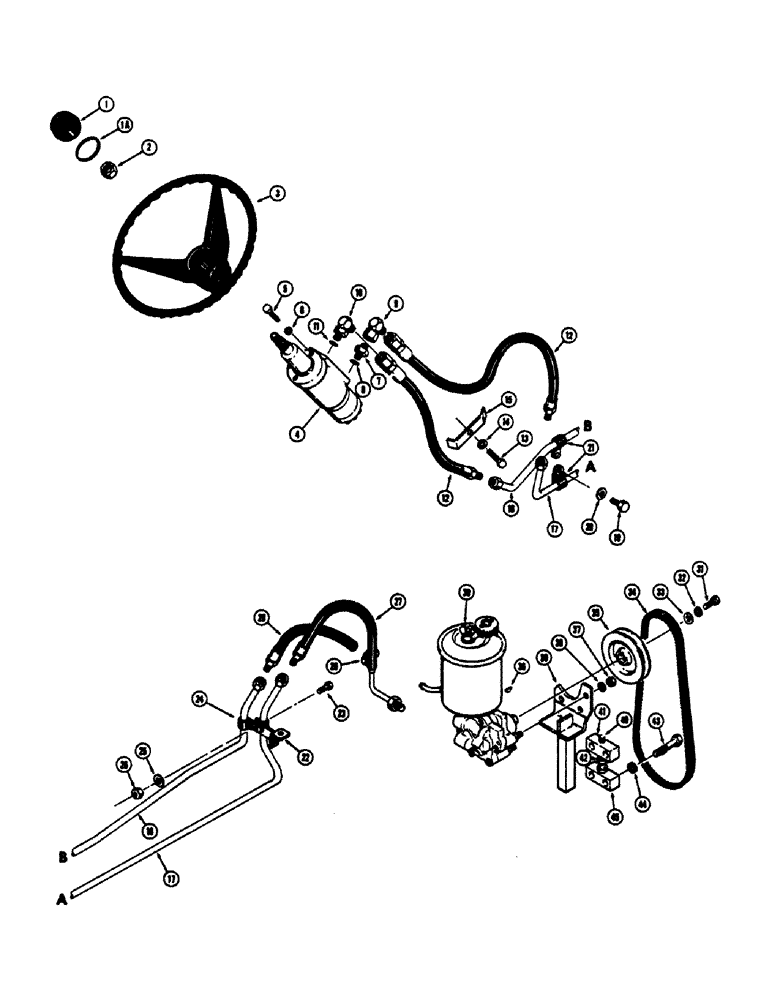

Запчасти Case 680CK (088) - STEERING WHEEL AND POWER STEERING HYDRAULICS (41) - STEERING

1

L15282

CAP

- steering wheel (Used with A37261 wheel only)

1шт.

1

A62210

PLUG

CAP - steering wheel (Used with A61007 wheel only)

1шт.

1a

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

RETAINER - cap, "O" ring (A62210 cap only)

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel to manual pump

1шт.

3

A37261

X

WHEEL - steering, 15" O.D. (Used with L15282 snap in wheel cap (When stock is exhausted, order A61007 wheel, A62210 cap and A29884 retainer for service)

1шт.

3

A61007

RIM

WHEEL - steering, 15-1/4" O.D. (Used with "O" ring retained, A62210 wheel cap)

1шт.

4

L13405

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, manual (Figure 92)

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

6

92-5

LOCK WASHER,5/16"

3шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight, Incl. Ref 8

1шт.

9

218-981

X

ELBOW - swivel, 90 degrees

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 11 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

12

A36162

TUBE

HOSE - manual pump to power steering pump (28-7/8" long)

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16"-18 NC x 1-3/4"

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

L17475

CLAMP - hose

1шт.

16

RESERVED

1шт.

17

L13799

TUBE - power steering pump to manual pump, pressure 0.5" OD

1шт.

18

L13800

TUBE,0.5" OD

- manual pump to power steering pump, return

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

195-24

WASHER,5/16"

2шт.

21

49836

CLAMP

- tube

2шт.

22

L13801

BRACKET - tube clamp mounting

1шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

24

49836

CLAMP

- tube

2шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2"-13 NC)

1шт.

27

L13804

HOSE

- at power steering pump, pressure (17-1/2" long)

1шт.

28

L13805

HOSE ASSY.

HOSE - at power steering pump, return (7-1/4" long)

1шт.

29

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

30

L15032

PUMP

- power steering (Figure 94)

1шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

A34092

WASHER

- special, pulley

1шт.

34

L11111

BELT,55.00" L

Power steering 55.00" L

1шт.

35

L11577

PULLEY

- power steering

1шт.

36

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

37

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8"-24 NF)

3шт.

38

92-6

LOCK WASHER,3/8"

3шт.

39

L11575

BRACKET

- power steering pump mounting

1шт.

40

113-106

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5, Full Thd

Hex, 5/16"-18 x 2-1/2", G5, Full Thd

1шт.

41

L13426

STRAP - mounting bracket, upper

1шт.

42

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16-18 NC)

1шт.

43

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

44

92-6

LOCK WASHER,3/8"

4шт.

45

L13427

STRAP

- mounting bracket, lower

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
