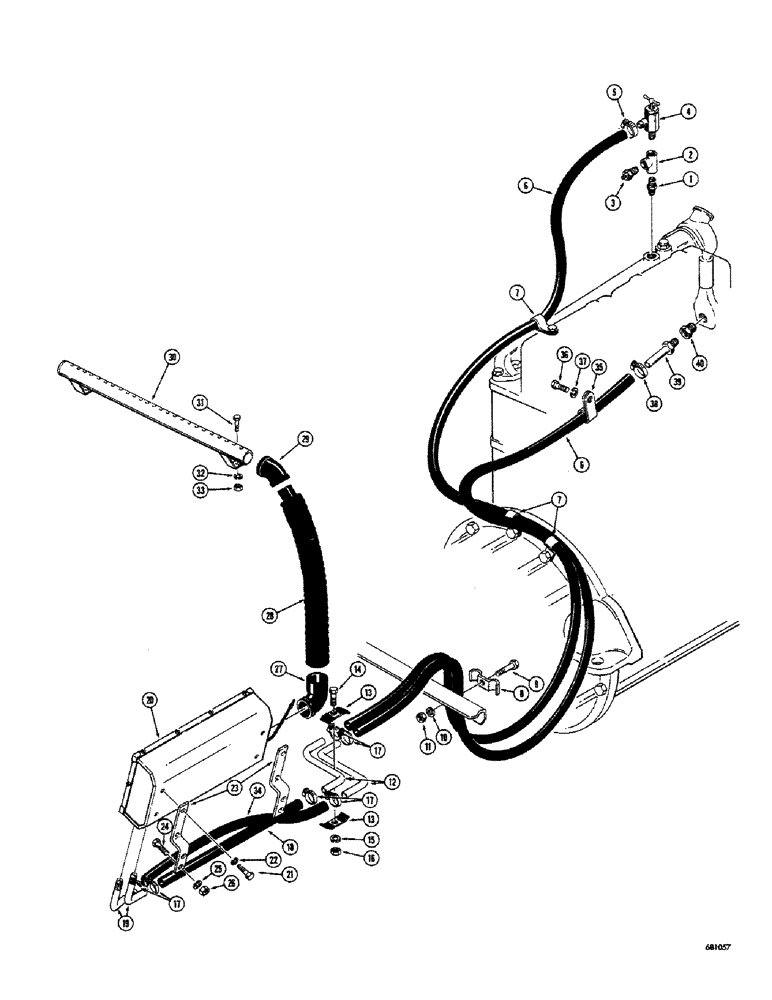

Запчасти Case 680CK (137E) - HEATER AND RELATED PARTS
№
Артикул
Название
Примечание
Количество
1
221-1160
FITTING
NIPPLE - pipe
1шт.
2
221-1423
TEE,Pipe, 3/8" NPT
- pipe
1шт.
3
L11350
SENDER UNIT
SENDING UNIT - water temperature indicator
1шт.
4
A16764
VALVE
- water shutoff
1шт.
5
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
1шт.
6
L13462
HOSE
- heater to valve and water pump (82" long)
2шт.
7
R14668
CLAMP
- hose
3шт.
8
R15257
CLAMP
- hose
1шт.
9
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
10
92-6
LOCK WASHER,3/8"
1шт.
11
25-106
NUT,3/8"-16, G5
- hex.(3/8" - 16 NC)
1шт.
12
L13461
TUBE - heater to valve and water pump
2шт.
13
A14078
CLAMP
- tube
2шт.
14
13-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- 5/16"-18 NC x 1-1/2"
1шт.
15
92-5
LOCK WASHER,5/16"
1шт.
16
25-106
NUT,3/8"-16, G5
- hex. (5/16" - 18 NC)
1шт.
17
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
6шт.
18
L13460
HOSE - valve to heater (13" long)
1шт.
19
A19941
PACKAGE
ELBOW - special, 90 degrees
2шт.
20
A12897
HEATER - 12 volt
1шт.
21
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
4шт.
22
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
23
L15187
BRACKET - heater mounting
2шт.
24
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
25
92-6
LOCK WASHER,3/8"
4шт.
26
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
4шт.
27
L13467
ELBOW - special, 90 degrees
1шт.
28
L13466
HOSE - low pressure
1шт.
29
L13465
ELBOW - special, 45 degrees
1шт.
30
L15163
DEFROSTER
TUBE - defroster
1шт.
31
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
2шт.
32
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
33
25-104
NUT,1/4"-20, G5
2шт.
34
L13459
HOSE - heater to water pump (15" long)
1шт.
35
R14668
CLAMP
- hose
1шт.
36
13-68
SCREW,Hex, 3/8" - 16 x 1/2", Gr 5
HHCS - 3/8" - 16 NC x 1/2"
1шт.
37
92-6
LOCK WASHER,3/8"
1шт.
38
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
1шт.
39
A16511
FITTING - hose
1шт.
40
221-1092
REDUCER,Hex, 3/4" x 3/8" NPT
Pipe Hex, 3/4" x 3/8" NPT
1шт.
Выбрано товаров: 40
