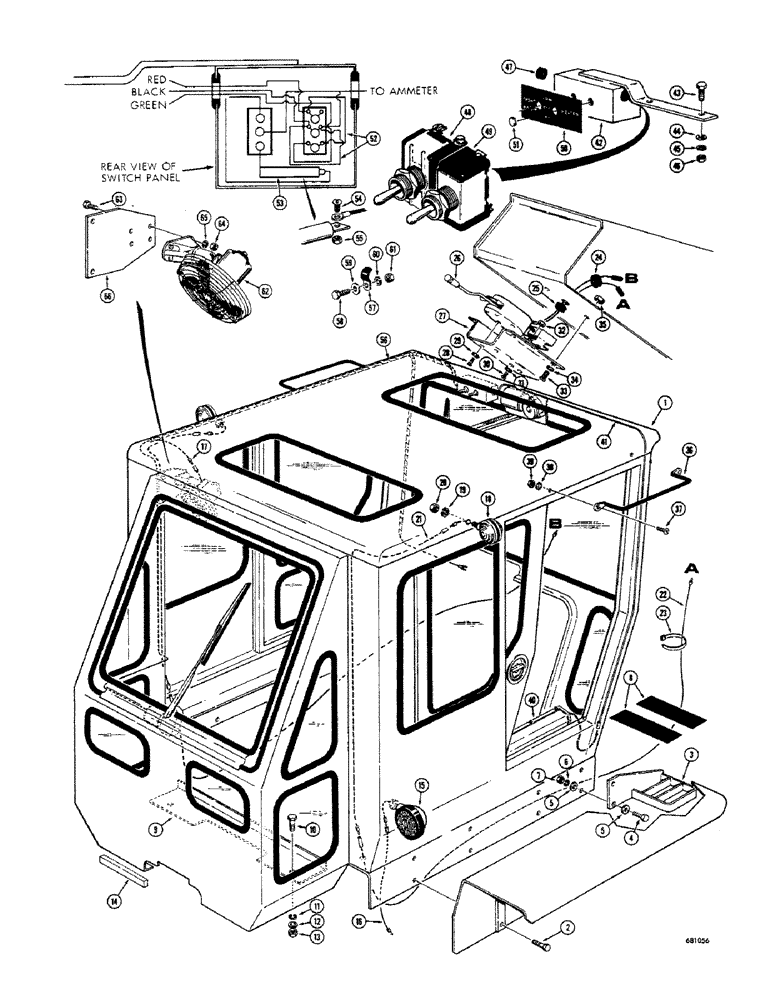

Запчасти Case 680CK (137C) - CAB AND RELATED PARTS

48

L15168

SWITCH - front wiper

1шт.

49

L15170

SWITCH

- heater

1шт.

50

321-1199

DECAL - heater wiper panel

1шт.

51

205-21

CAPSCREW

PLUG - button (Used on models without heater)

1шт.

52

L15169

WIRE - switch crossover

2шт.

53

A55708

RESISTOR - heater switch

1шт.

54

165-31

SCREW,#10 - 32 x 1/2"

RHMS - #10 - 32 NC x 1/2"

1шт.

55

129-37

NUT,#10-32

1шт.

56

L15166

HARNESS - wire, defroster, Serial Range: switches-wiper

1шт.

57

A22880

CLIP

- wire

14шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

59

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

60

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

61

25-104

NUT,1/4"-20, G5

4шт.

62

L13468

FAN

- defroster, rear window (figure 137G)

1шт.

63

165-31

SCREW,#10 - 32 x 1/2"

CAP SCREW - hex. socket head (#10 - 32 NF x 1/2")

4шт.

64

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 32 NF)

4шт.

65

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

66

L15190

BRACKET - defroster fan

1шт.
