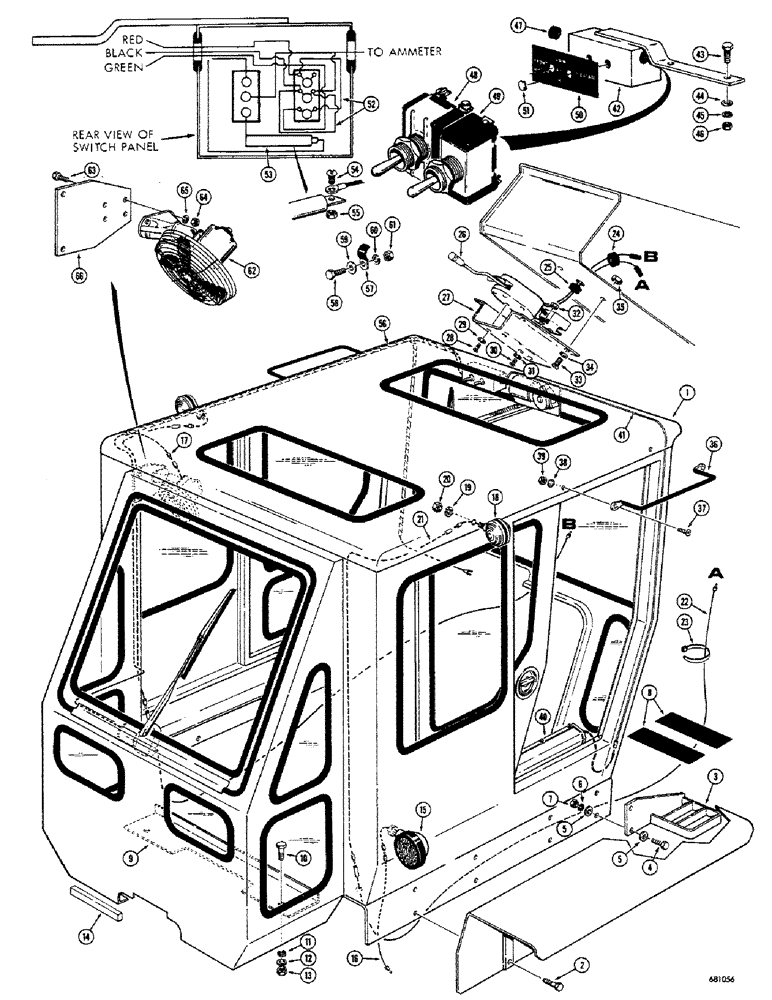

Запчасти Case 680CK (137A) - CAB AND RELATED PARTS

1

L15160

CAB - operator control (Machinery item)

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

12шт.

3

L15161

SPARE PART RH

1шт.

L15162

SPARE PART LH

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

5

195-25

WASHER,3/8"

32шт.

6

92-6

LOCK WASHER,3/8"

16шт.

7

25-106

NUT,3/8"-16, G5

16шт.

8

A55582

PAD

Non slip

4шт.

9

L15164

PLATE - floor panel

1шт.

10

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

95-8

WASHER,1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

Hex

2шт.

14

L15173

SEAL - cab floor plate (12-1/4" long)

1шт.

14

L15174

SEAL - cab floor plate (2" long)

2шт.

14

L15175

SEAL - cab floor plate (9-3/4" long)

2шт.

14

L15176

SPARE PART Cab floor plate (27-3/4" long)

1шт.

14

L15177

SEAL - cab floor plate (6" long)

2шт.

14

L15178

SEAL - cab rear sides (18-1/4" long)

2шт.

14

L15179

SEAL - cab front edge (5-1/2" long)

2шт.

14

L15180

SEAL - cab middle edge (4-1/2" long)

2шт.

14

L15181

SPARE PART SEAL - cab rear edge (7-1/2" long)

2шт.

15

L11357

LIGHT

ASSEMBLY - rear (Parts list figure 74)

2шт.

16

L15191

WIRE - rear lamp

2шт.

17

L11778

CONNECTOR, ELEC

CONNECTOR TERMINAL - male

1шт.

18

A34853

LAMP

Flashing, double face

2шт.

19

192-23

LOCK WASHER,1/2"

2шт.

20

129-125

NUT,1/2"-20, G5

2шт.

21

L15172

WIRE - signal, Serial Range: switch-lamp

2шт.

22

L15165

WIRE - signal switch

2шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Wire harness

6шт.

24

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

Rubber

1шт.

25

L13486

X

GROMMET - rubber

1шт.

26

L13489

SWITCH - signal, turn and flash

1шт.

27

13488

SCREW

BRACKET - signal mounting

1шт.

28

173-266

RHMS - #6 - 32 NC x 3/4" (Zinc plated)

2шт.

29

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

2шт.

30

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

RHMS

2шт.

31

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

2шт.

32

129-16

NUT,#8-32

2шт.

33

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

4шт.

34

92-4

LOCK WASHER,1/4"

4шт.

35

25-104

NUT,1/4"-20, G5

4шт.

36

A56109

SPARE PART Operator mounting

3шт.

37

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

RHMS - 5/16" - 18 NC x 1-1/4" (Zinc plated)

6шт.

38

193-82

LOCK WASHER,Int Tooth, 5/16"

6шт.

39

9635082

NUT,5/16" - 18, Gr 5

6шт.

40

REF

INSTRUCTION

HEATER - 12 volt (See figure 137E for related parts)

1шт.

41

L15186

WIRE - switch, Serial Range: box-heater

1шт.

42

L15167

PANEL

Front, heater and wiper

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

44

95-6

WASHER,3/8"

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

2шт.

47

F54096

GROMMET

Rubber

2шт.
