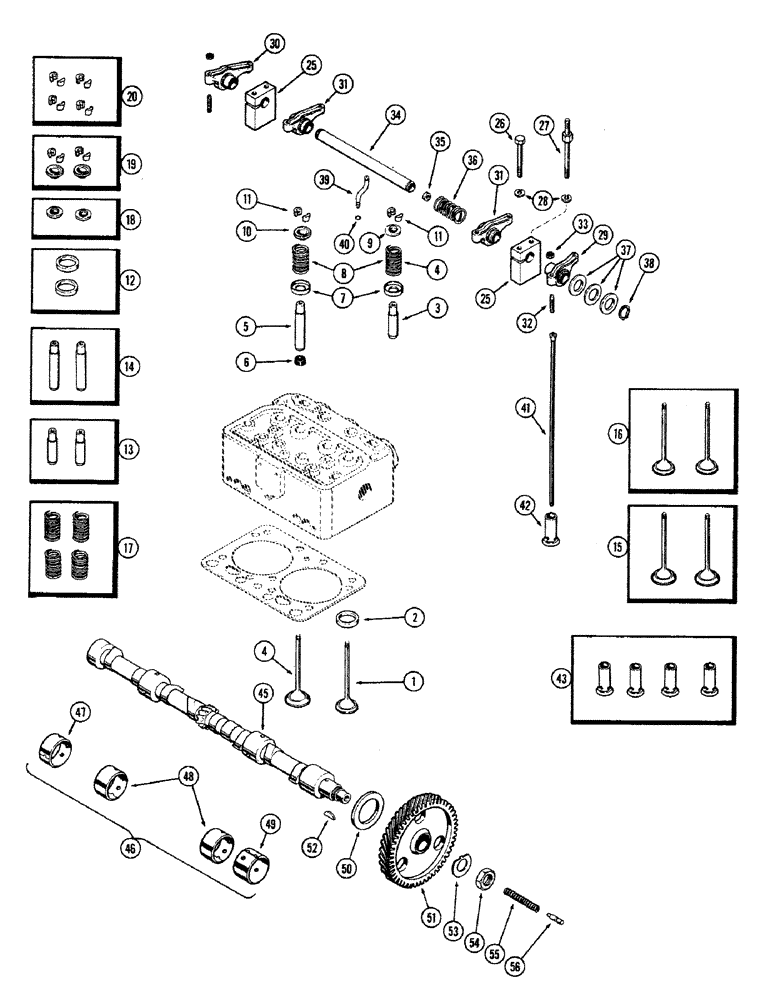

Запчасти Case 680CK (016) - VALVES AND VALVE MECHANISM, (267) DIESEL ENGINE, CAMSHAFT

1

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order A24770)

4шт.

2

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order A21681)

4шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order A21674)

4шт.

4

NSS

NOT SOLD SEPARAT

VALVE - intake (Order A40351)

4шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order A21671)

4шт.

6

A10726

SEAL

SHIELD - oil, intake valve

4шт.

7

A27866

SEAT

- valve springs

8шт.

8

NSS

NOT SOLD SEPARAT

SPRING - valve (Order A21694)

8шт.

9

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve spring (Order A24993)

4шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order A21657)

4шт.

11

NSS

NOT SOLD SEPARAT

KEEPER - valve spring (Order A40352)

16шт.

12

A21681

KIT

INSERT KIT - exhaust valve (Set of 2)

2шт.

13

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

14

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

15

A40351

KIT

VALVE KIT - intake (Set of 2)

2шт.

16

A24770

VALVE

KIT - exhaust (Set of 2)

2шт.

17

A21694

SPRING

KIT - valves (Set of 4)

2шт.

18

A57433

COIL

ROTO CAP KIT - exhaust valve (Set of 2) (Replaces A24993)

2шт.

19

A21657

LOCK

RETAINER KIT - intake valve spring (Set of 2 retainers & 4 keepers)

2шт.

20

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

2шт.

25

A27881

BRACKET

- rocker shaft

4шт.

26

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Bracket Hex, 7/16"-14 x 3 3/4", G5

4шт.

27

A57458

STUD

- bracket & cyl. head cover (Replaces A28124)

4шт.

28

92-7

LOCK WASHER,7/16"

8шт.

29

A22324

ROCKER

ARM ASSY. - rocker (Exhaust valves) (No. 1 & no. 3 cyl.) (Incl. items 32 & 33)

2шт.

30

A22326

ROCKER

ARM ASSY. - rocker (Exhaust valves) (No. 2 & no. 4 cyl.) (Incl. items 32 & 33)

2шт.

31

A22322

ROCKER

ARM ASSY. - rocker (Intake valves) (Incl. items 32 & 33)

4шт.

32

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

1шт.

33

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adj. screw (3/8" N.C. half hex.)

1шт.

34

A21100

SHAFT

ASSY. - rocker arms

2шт.

35

A26667

PLUG - rocker shaft (9/16" cup type)

2шт.

36

A27877

SPRING

- rocker shaft

2шт.

37

A27878

WASHER

- rocker shaft ends (29/32 x 1-5/16 x .028")

12шт.

38

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

39

A27879

TUBE

- oil, rocker shaft

2шт.

40

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

2шт.

41

A21060

ROD

- push

8шт.

42

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order A21653)

8шт.

43

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.

45

A23495

CAMSHAFT

- engine

1шт.

46

A23577

KIT

BUSHING KIT - camshaft (Setof 4)

1шт.

47

NSS

NOT SOLD SEPARAT

BUSHING - rear (Order A23577) (1-5/32" wide)

1шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - inter. (Order A23577) (1-7/16" wide)

2шт.

49

NSS

NOT SOLD SEPARAT

BUSHING - front (Order A23577) (1-21/32" wide)

1шт.

50

A21017

WASHER

- thrust

1шт.

51

A22604

GEAR

- camshaft

1шт.

52

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

53

A26444

LOCK WASHER

- lock, camshaft nut

1шт.

54

A26445

NUT

- camshaft

1шт.

55

CASA27853

SPRING

- thrust plunger

1шт.

56

A27852

PLUNGER

- thrust

1шт.
