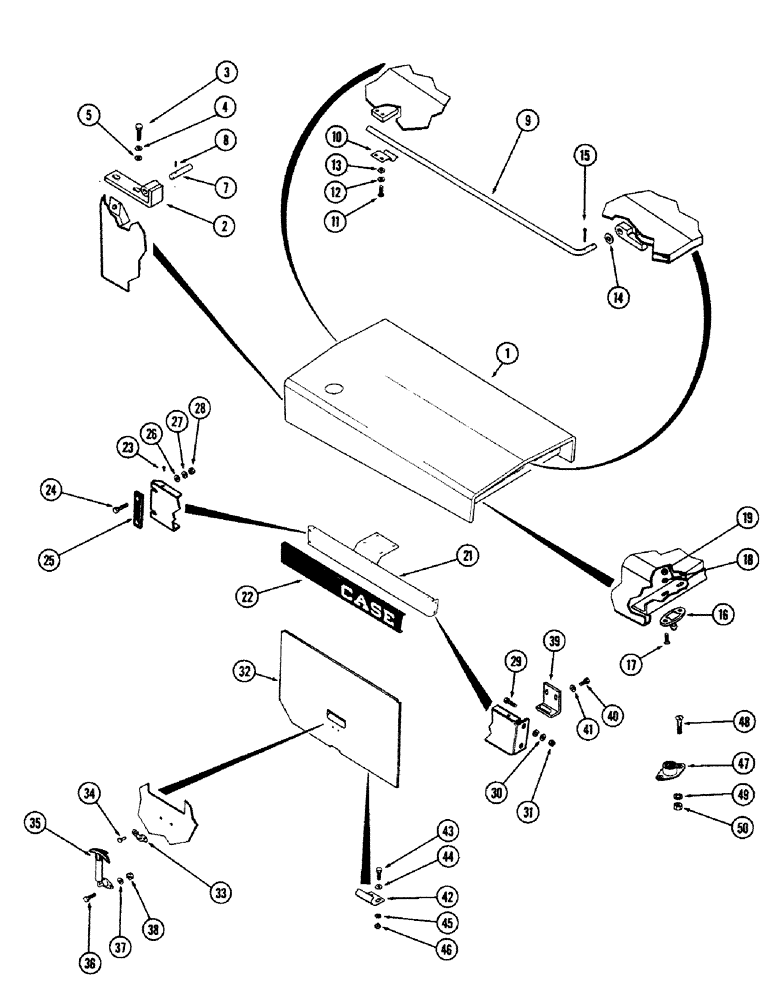

Запчасти Case 680CK (134) - HOOD AND SIDE PANELS

1

L11126

HOOD - front, engine

1шт.

2

L11424

SUPPORT

- hood

2шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

4

195-25

WASHER,3/8"

- () 3/8"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

7

L11138

PIN - hinge, hood

2шт.

8

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

9

L11139

ROD - support, hood

1шт.

10

L11140

SPRING - clip, hood rod

1шт.

11

75-46

SCREW

- (1/4 x 3/8" N. C. rd. hd. mach.)

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

195-18

WASHER,1/4"

- (9/32" plain)

2шт.

14

195-41

WASHER,5/8"

2шт.

15

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

16

L11141

PLUG - hood mtg.

2шт.

17

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- (1/4 x 3/4" N. C. flat hd. mach.)

4шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

25-104

NUT,1/4"-20, G5

4шт.

21

L11143

CHANNEL ASSY. - hood side, R. H. (Replaces L11432)

1шт.

21

L11142

CHANNEL ASSY. - hood side, L. H. (Replaces L11433)

1шт.

22

L11150

PLATE - identification, R. H.

1шт.

22

L11149

PLATE - identification, L. H.

1шт.

23

151-11

RIVET - (2-1/2 lb. flat hd. Tinner)

6шт.

24

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N. C. hex)

4шт.

25

L11148

MOUNTS - rubber, rear

2шт.

26

195-21

WASHER,5/16"

- (11/32" plain)

4шт.

27

92-5

LOCK WASHER,5/16"

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

4шт.

29

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

30

92-5

LOCK WASHER,5/16"

4шт.

31

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

4шт.

32

L11775

PANEL - hood side, R. H.

1шт.

32

L11776

PANEL - hood side, L. H.

1шт.

33

A17237

HOOK

CATCH - panel latch

1шт.

34

49-35

RIVET - (3/16 x 5/16 wagon box)

2шт.

35

A17232

LATCH ASSY.

LATCH - hood sides

2шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

25-104

NUT,1/4"-20, G5

4шт.

39

L11441

CLIP - hood side panel

4шт.

40

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

42

L11440

RETAINER

SPRING - retainer, side panels

4шт.

43

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

44

195-18

WASHER,1/4"

- ( plain) 1/4"

8шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

46

25-104

NUT,1/4"-20, G5

8шт.

47

L11243

SOCKET ASSY. - door check

2шт.

48

73-420

SCREW - (1/4 x 1-1/4" flat hd. mach.)

4шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

50

25-104

NUT,1/4"-20, G5

4шт.
