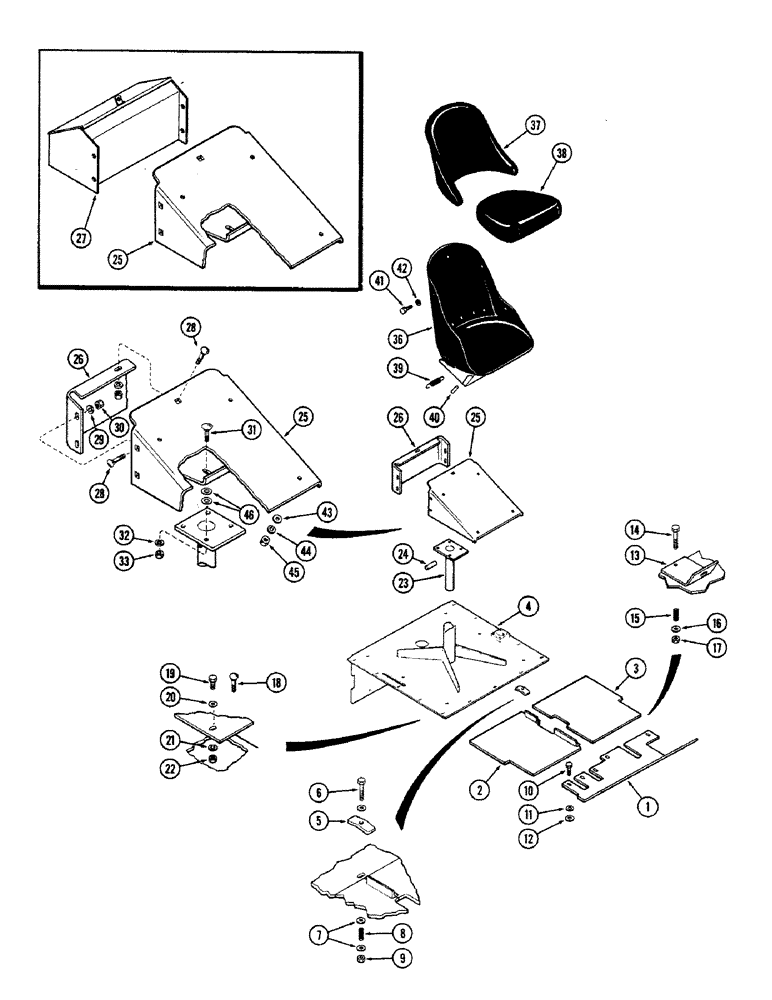

Запчасти Case 680CK (130) - PLATFORMS, SEAT

1

L11058

PLATE

- floorboard, front

1шт.

2

L11054

PLATE - floor, R. H.

1шт.

3

L11535

PLATE - floor, L. H.

1шт.

4

L11063

PLATFORM - seat

1шт.

5

L11056

LATCH - battery cover

2шт.

6

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

7

195-21

WASHER,5/16"

- (11/32" plain)

4шт.

8

A33749

SPRING

- compression, latch

2шт.

9

131-4

LOCK NUT,5/16"-18, GB

NUT - (5/16" N. C. hex. ESNA)

2шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

9шт.

11

92-5

LOCK WASHER,5/16"

9шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- (5/16" plain, wrought)

9шт.

13

L11171

COVER - floor access

1шт.

14

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

15

A10523

SPRING - compression

1шт.

16

195-21

WASHER,5/16"

- (11/32" plain)

1шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - (5/16" N. C. hex., Esna)

1шт.

18

12-516

BOLT (MACHINE)

BOLT - (5/16 x 1" N. C. carriage)

12шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

20

195-21

WASHER,5/16"

- (11/32" plain)

14шт.

21

92-5

LOCK WASHER,5/16"

14шт.

22

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

12шт.

23

L11415

POST - seat plate

1шт.

24

L11072

PIN - pivot, seat

1шт.

25

L11421

SUPPORT - seat

1шт.

26

L11422

PANEL - seat (For use w/out tool box)

1шт.

27

L12328

BOX - tools

1шт.

28

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5шт.

29

92-5

LOCK WASHER,5/16"

5шт.

30

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

5шт.

31

11-618

X

BOLT - (3/8 x 1-1/8" N.C. rd. hd., sq. neck)

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

L11074

SEAT

- operator's (Not illust.)

1шт.

36

NSS

NOT SOLD SEPARAT

SHELL - operator's seat (Order L11074)

1шт.

37

L30536

BACKREST

- operator's seat

1шт.

38

L30535

SEAT CUSHION

CUSHION - operator's seat

1шт.

39

L30533

VALVE SPRING

SPRING - adj.

2шт.

40

L30534

X

PIN - cushion alignment location

2шт.

41

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

42

92-6

LOCK WASHER,3/8"

5шт.

43

195-21

WASHER,5/16"

- (11/32" plain)

4шт.

44

92-5

LOCK WASHER,5/16"

4шт.

45

25-115

NUT,5/16"-24, G5

- (5/16" N. C. hex)

4шт.

46

95-6

WASHER,3/8"

SHIM - seat (7/16 x 1 x 5/64")

4шт.
