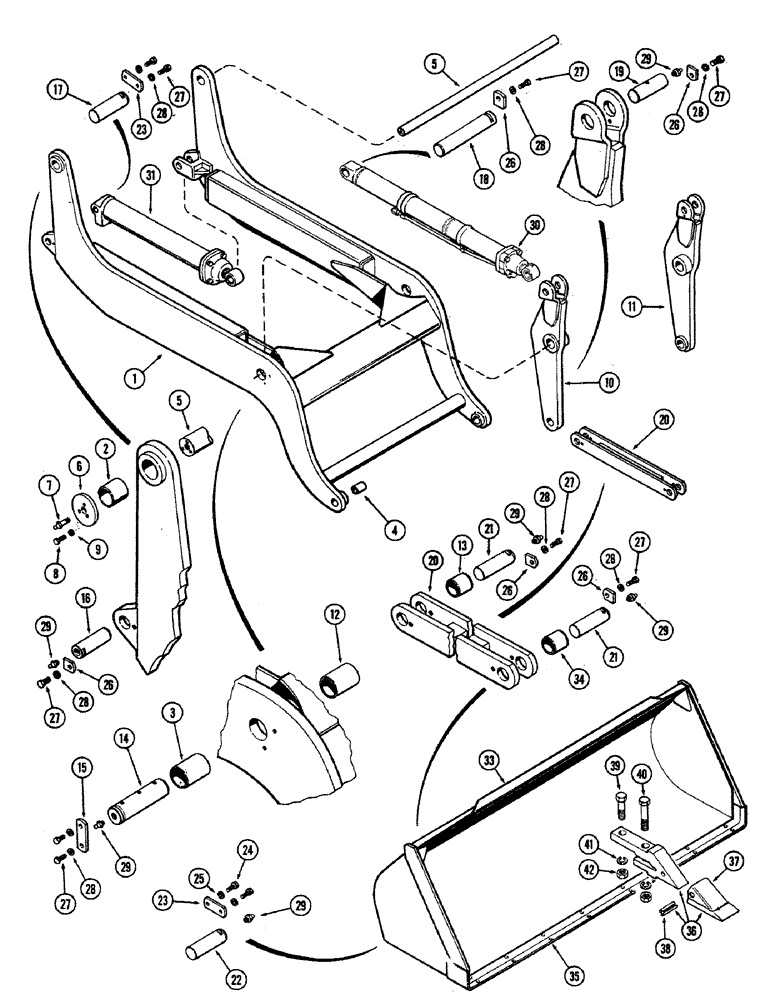

Запчасти Case 680CK (128) - LIFT ARM AND ATTACHING PARTS

1

L11002

ARM ASSY. - lift, bucket

1шт.

2

L11497

BUSHING - arm chassis pivot (2-1/16 x 2-3/8 x 2")

2шт.

3

L11494

BUSHING

- bellcrank pivot (2-1/16 x 2-3/8 x 1-1/4")

2шт.

4

L11496

BUSHING

- arm bucket pivot (1-1/2 x 1-7/8 x 2-1/4")

2шт.

4a

L13535

BLOCK - bucket stop (Welded to lift arm) not illustrated

2шт.

5

L11028

SHAFT - pivot, frame to lift arm

1шт.

6

L11500

PLATE - end, pivot shaft ret.

2шт.

7

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" str.)

2шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

L11491

BELLCRANK ASSY. - R. H. (Incl. items 12 & 13)

1шт.

11

L11492

BELLCRANK ASSY. - L. H. (Incl. items 12 & 13)

1шт.

12

L11503

BUSHING - bellcrank pivot (2 x 2-3/8 x 3-3/8")

1шт.

13

L11449

BUSHING - pivot pin, level link (1-1/2 x 1-7/8 x 1-7/8")

1шт.

14

L11029

PIN - pivot, bellcrank pivot (7-13/64" long)

2шт.

15

L11493

LOCK

- pivot pin (w/1/2" holes)

4шт.

16

A13351

AXLE PIN

PIN - pivot, lift cyl. arm (4-1/2" long)

2шт.

17

A13461

BOOM

PIN - lift cyl. to frame (4-1/2" long)

2шт.

18

A13435

PIN - pivot, tilt cyl. to frame (7-1/4" long)

2шт.

19

L11031

PIN - pivot, Serial Range: tilt-bellcrank

2шт.

20

L11026

LINK - level

2шт.

21

L11030

PIN - pivot, link (3-15/16" long)

4шт.

22

A13351

AXLE PIN

PIN - pivot, bucket (4-1/2" long)

2шт.

23

L10872

LOCK - plate, pivot pin (w/3/8" holes)

2шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

A13353

LOCK

- pivot pin (w/1/2" hole)

12шт.

27

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- (1/2 x 3/4" N. C. hex.)

12шт.

27

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

28

92-8

LOCK WASHER,1/2"

18шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" str.)

16шт.

30

L11032

CYLINDER ASSY. - tilt, R.H. & L.H. (Repairs, P. 122)

2шт.

31

L10869

LIFT CYLINDER

CYLINDER ASSY. - lift, R.H. (Repairs, P. 124)

1шт.

32

L10870

CYLINDER ASSY. - lift, L.H. (Repairs, P. 124)

1шт.

33

L11325

BUCKET ASSY. - (1 cu. yd.) (Mach. item)

1шт.

34

L11449

BUSHING - pivot pin, level link (1-1/2 x 1-7/8 x 1-7/8")

1шт.

35

A17552

EDGE

- cutting

1шт.

33

L11155

BUCKET ASSY. - (1-1/2 cu. yd.) (Mach. item)

1шт.

34

L11449

BUSHING - pivot pin, level link (1-1/2 x 1-7/8 x 1-7/8")

2шт.

35

L10194

CUTTING EDGE

EDGE - cutting

1шт.

35a

L12336

BLOCK - bucket stop (Welded to bucket ear) not illustrated

2шт.

36

L16667

TOOTH

ASSY. - bucket (1 cu. yd.)

8шт.

37

D39093

TOOTH

POINT - bucket

1шт.

38

D39094

BUCKET TOOTH KEY

FLEX PIN - tooth

1шт.

39

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

40

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

8шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

42

86625068

NUT,5/8"-11, G8

- (5/8" N. C. hex.)

16шт.
