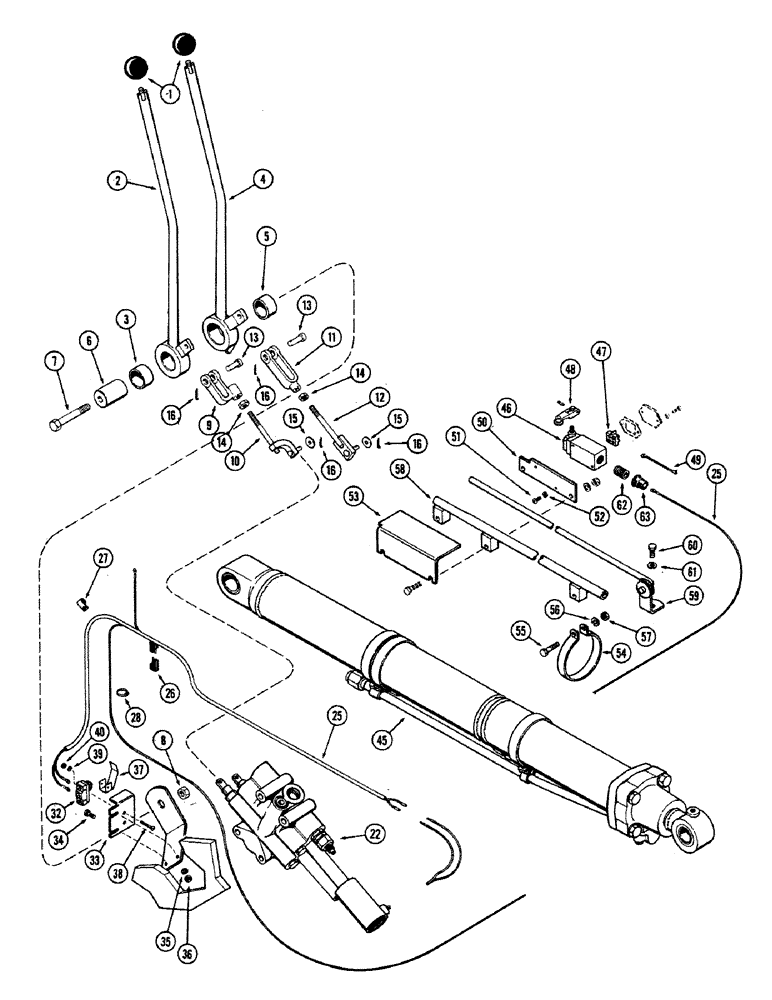

Запчасти Case 680CK (126) - TWO SPOOL VALVE CONTROLS, RETURN TO DIG FEATURE CONTROLS

1

A19416

BALL

- lever, hand control

2шт.

2

L11461

LEVER ASSY. - right hand (Lift control)

1шт.

3

A13845

BUSHING

- pivot pin

1шт.

4

L11462

LEVER ASSY. - left hand (Tilt control) (Automatic control) (Incl. item 5)

1шт.

4

L11631

LEVER ASSY. - left hand (Tilt control) (Manual control) (Incl. item 5)

1шт.

5

A13845

BUSHING

- pivot pin

1шт.

6

L11268

PIN - pivot, loader controls

1шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

8

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Esna 1/2"-13, GB

1шт.

9

L11182

YOKE,3/8" - 24

- lift link to lever (Off set)

1шт.

10

L11460

LINK - lift

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - tilt link to lever (Straight)

1шт.

12

L11459

LINK - tilt

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

14

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N. F. hex., jam)

2шт.

15

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

16

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

4шт.

22

L11777

X

VALVE ASSY. - 2 spool, w/solenoid (See figure 120)

1шт.

25

L11759

HARNESS ASSY. - wire

1шт.

26

L11760

DIODE

- switch protecting

1шт.

27

49845

CLAMP

CLIP - wire harness

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire harness

3шт.

32

A19513

SWITCH

- neutral start, actuator (Micro)

1шт.

33

L11629

BRACKET - switch mtg.

1шт.

34

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

25-104

NUT,1/4"-20, G5

2шт.

37

L11390

GUARD - actuator switch

1шт.

38

171-68

SCREW - (#6 x 1-1/4" flat hd. mach.)

2шт.

39

195-506

WASHER,#6

- ( lock) #6

2шт.

40

129-15

NUT,#6-32

2шт.

45

L11032

CYLINDER ASSY. - tilt (See figure 122)

1шт.

46

L11618

SWITCH ASSY. - limit

1шт.

47

L30627

CONTACT - limit switch

1шт.

48

L30628

LEVER

ARM - limit switch

1шт.

49

L11644

WIRE - limit switch, ground

1шт.

50

L11625

BRACKET - mtg., limit switch

1шт.

51

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- (#10 x 5/8" rd. hd.)

2шт.

52

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

53

L11626

SHIELD - limit switch

1шт.

54

A16373

STRAP - mtg., bucket level tube

3шт.

55

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- (5/16 x 1-3/4" N. C. hex.)

3шт.

56

92-5

LOCK WASHER,5/16"

3шт.

57

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

3шт.

58

L11619

TUBE - bucket level

1шт.

59

L11622

ROD - bucket level

1шт.

60

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

61

92-6

LOCK WASHER,3/8"

1шт.

62

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - (1/2" pipe)

1шт.

63

A21820

X

NIPPLE - limit switch (Rubber)

1шт.
