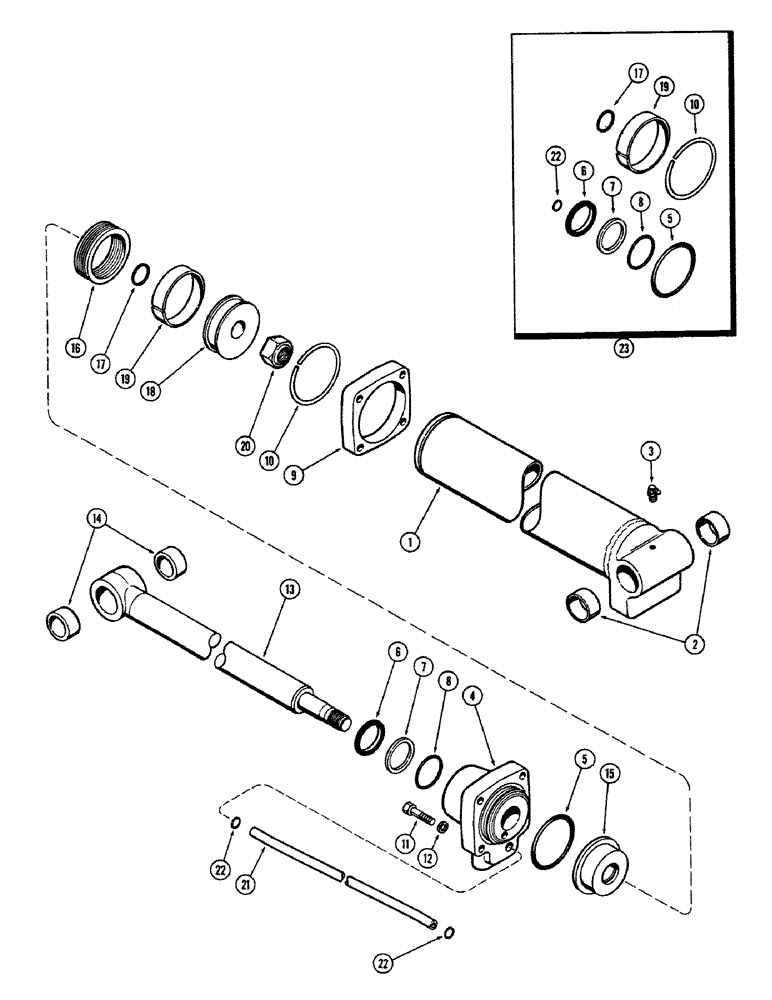

Запчасти Case 680CK (124) - LIFT CYLINDER

L10869

LIFT CYLINDER

CYLINDER ASSY. - lift, R. H. (Not illust.)

1шт.

L10870

CYLINDER ASSY. - lift, L. H. (Not illust.)

1шт.

1

A13444

BODY & END ASSY

1шт.

2

A13386

BUSHING

- end

2шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (de-cap) 90º, 1/8" NPT x .84" lg

1шт.

4

A13453

HEAD - cylinder, L. H.

1шт.

4

A13452

HEAD - cylinder, R. H.

1шт.

5

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - head (3-3/4 x 4 x 1/8")

1шт.

Part of gland packing kit P/N L30952

1шт.

6

A14230

RING

- head, inner

1шт.

Part of gland packing kit P/N L30952

1шт.

7

A13902

WASHER

- back-up (Leather)

1шт.

Part of gland packing kit P/N L30952

1шт.

8

A13893

WIPER

- piston rod

1шт.

Part of gland packing kit P/N L30952

1шт.

9

A13455

CLAMP -, Serial Range: head-body

1шт.

10

A13454

RING, SNAP

RING - snap, clamp stop

1шт.

Part of gland packing kit P/N L30952

1шт.

11

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- head to clamp (1/2 x 2-1/2" N. F. hex.)

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

A13448

ROD ASSY. - piston, w/end

1шт.

14

A13386

BUSHING

- piston rod end

2шт.

15

A17338

PISTON - cylinder

1шт.

16

A17339

PACKING

- piston ("V" rings)

1шт.

17

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - piston (1-3/16 x 1-7/16 x 1/8")

1шт.

Part of gland packing kit P/N L30952

1шт.

18

A17340

PLATE ASSY.

PLATE - piston follower

1шт.

19

A17341

RING

- wear, follower plate

1шт.

Part of gland packing kit P/N L30952

1шт.

20

131-61

LOCK NUT,1 1/8"-12

NUT - piston to rod (1-1/8" N. F. self-locking)

1шт.

21

L10871

TUBE - cylinder port 0.625" OD x 31.188, 0.81" L

1шт.

22

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - tube (5/8 x 13/16 x 3/32")

2шт.

Part of gland packing kit P/N L30952

1шт.

23

L30952

KIT

GLAND PACKING KIT, Replaces: L30681, Includes: Ref. 5 - 8, 10, 17, 19 and 22

1шт.
